Specifications
1.Low noise HengTong Industrial Hot Air Blower2.ISO Certificate
3.Low Noise,high rates
4.Contract Deliver
5.High quality

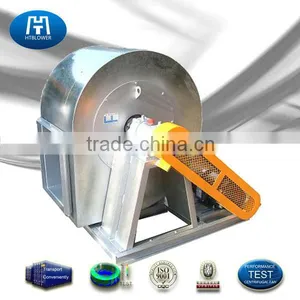

Low noise Hengtong Industrial Hot Air Blower
Hengtong Blower products in each big industry were used as key equipment, among dust removal centrifugal fan, boiler centrifugal fan, cement plant dedicated centrifugal fan,air centrifugal fan , gas delivery centrifugal fan high temperature centrifugal fan, environmental protect centrifugal fan etc were used in industrial and civil fields.
Application
Hengtong blower custom-engineered centrifugal fans are designed specifically for each contract which allows us to apply a combination of experience, advanced design techniques and a knowledge of the operating conditions to select the optimum fan in terms of capital cost, running cost, maintainability and reliability. A wide range of options are available in terms of drive arrangement, output control, layout and ancillary equipment, to give maximum flexibility to the plant designer.
|
Dust collector |
Hengtong blower is a leading provider of fans and blowers for dust collection applications, our air dust centrifugal fan are used to supply dirty corrosive air into the system, and exhausting clean air out of the system. whether it is sawdust, metal scraps, or welding smoke, we design and manufacture various pre-engineered and custom heavy duty fans to capture the particles exhausted into the air. |
|
Chemical industrial |
From the petroleum refining to chemical production, Hengtong blower provides pre-engineered and customized heavy duty fans meet the strict requirements in the petrochemical industry . some industries need fan used in heating process, such as the flare stacks,fired heaters,burner systems.in addition to heating systems,fans are also used in pollution control systems like scrubbers and thermal oxidizers within the petrochemical industry. Even in the extreme operating conditions, all of our fans operates with coatings to ensure the system properly and specialty bearings seals to meet the needs of industry standards. |
|
Power Generation |
Hengtong blower provide all kinds of air handing products to meet the requirements of power generation industry. We provide fans and blowers that supply, exhaust contain and cool airflow within various applications. From industrial boilers systems and specialty cooling applications to dust collection systems, our pre-engineered and custom heavy duty fans are designed by engineers with power generation applications in mind. |
Recommended parts
Low noise Hengtong Industrial Hot Air Blower :
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Air inlet: Convergence can be a good design to reduce wind resistance, and to be able to get better gas inlet angle when entering the impeller wheel, can effectively improve the operating efficiency of the fan.
Belt pulley: The structure is compact save a space ,differential transmission.
Overall support:Overall support is your installation is very simple and easy operation.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Optional components Flow Process Fan driven by motor, drive the impeller rotation, the gas along the air inlet get into the impeller, as a result of the action of the impeller, the gas gain energy, pressure and kinetic energy increased, the impeller gas out of the volute impeller junior people after work, leave is the role of volute impeller gas concentration of diversion, and parts of the gas kinetic energy into the static pressure, and then send the gas from the outlet of the spiral case, when the gas enough energy to overcome the resistance of pipelines and gas can be transported to high or the distance.
Technical Parameters
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 730 | ~ | 2550 | rpm | |
| Pressure range | 402 | ~ | 5358 | Pa | |
| 3 | ~ | 40.185 | mmHg | ||
| 41 | ~ | 547 | mmH2O | ||
| Flow range | 5508 | ~ | 119491 | m3/h | |
| 9363 | ~ | 2013112 | CFM | ||
Installation Service
There are three methods for our installation: Production process Quality Assurance
Hengtong's Quality Control programe is supported by a comprehensive Quality Management System (ISO 9001:2000), deviced at the time of inception andcontinuously upgraded. We have in place highly mechanised testing facilities, with procedures laid out to the requirement standards. The test facilities in place permit the flawless testing of the complete range of our products.
customer visitting
our blowers are exported to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise. If you are interested in our Low noise Hengtong Industrial Hot Air Blower , Please don't hesitate to contact me !
