Specifications
our produce1. Large air flow
2. ISO 9001:2008 certification
3.easy to operate
mpt delivery

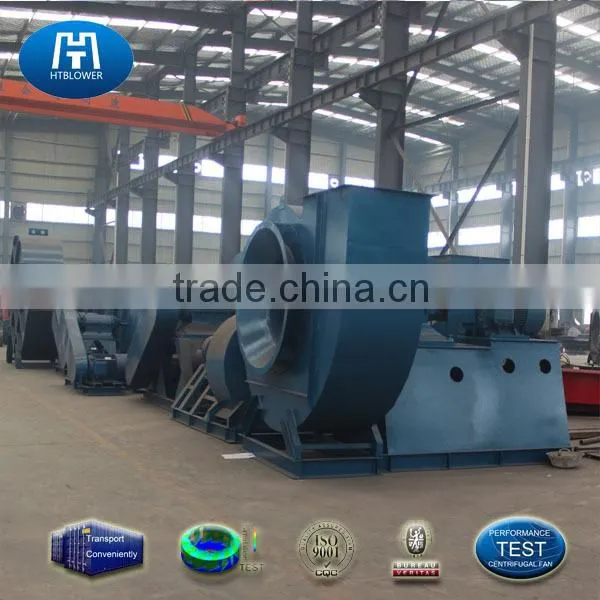

Centrifugal air blower
Welcome To Henan Hengtong Blower CO.,LTD
Hengtong Blower products in each big industry were used as key equipment, among dust removal blower, boiler blower, cement plant dedicated blower, ventilation blower, cooling blower, high temperature blower, environmental protect blower etc were used in industrial and civil fields.
dust collection |
Hengtong blower is a leading provider of fans and blowers for dust removal industry. A variety of industries use dust collection system to remove and control harmful particles from entering into the airflow. Our Centrifugal air blowers are used for either supplying dirty corrosive air into the system. Or exhausting clean filtered air out of the system. whether it is sawdust, metal scraps, or welding smoke, our pre-designed and custom heavy duty fans control particles from exhausted into the air . |
cement |
Hengtong blower extensive design and manufacturing capabilities enable us to provide a wide range of fans for several applications in cement manufacturing industry ,fans are required for the refinement and blending of materials in pneumatic conveying system as well as exhausting fans for transporting and removing of materials. our pre-engineered and custom Centrifugal air blowers are reliable to control the harsh environments of cement manufacturing industry. |
power generation |
Hengtong blower provide all kinds of air handing products to meet the requirements of power generation industry. We provide fans and blowers that supply, exhaust contain and cool airflow within various applications. From industrial boilers systems and specialty cooling applications to dust collection systems, our pre-engineered and Centrifugal air blowers are designed by engineers with power generation applications in mind. |
Boiler System |
According to different applications, boiler system are used for generating steam and electric energy in many different industries. boiler system needs forced draft fans to offer combustion air ,at the same time, induced draft fan remove products of combustion and maintain the required draft.over-fire air fan, primary air and FGR fan are used to circulate gases to different parts of the system. Hengtong blower is a leading provider of pre-engineering and Centrifugal air blowers for boiler system. |

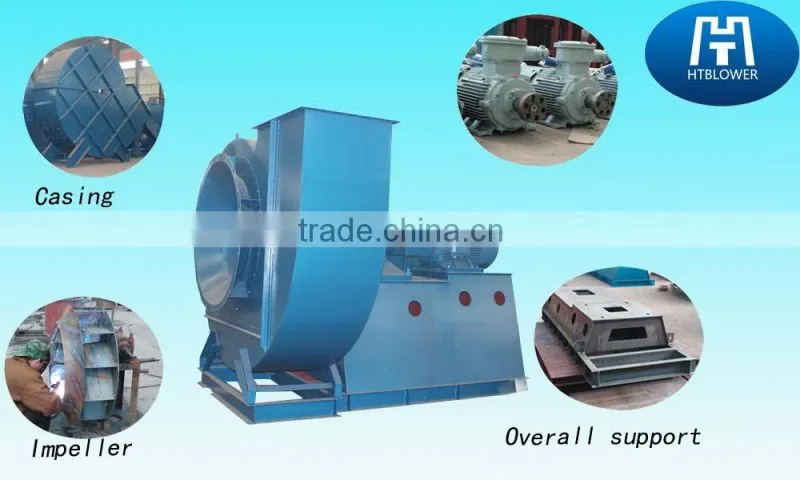

Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Overall support:Overall support is your installation is very simple and easy operation
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
| Application | Temperature | Normal temperature Air | |||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 730 | ~ | 1450 | rpm | |
| Pressure range | 383 | ~ | 5500 | Pa | |
| 2 | ~ | 41 | mmHg | ||
| 39 | ~ | 561 | mmH2O | ||
| Flow range | 5508 | ~ | 120000 | m3/h | |
| 9362 | ~ | 203977 | CFM | ||
| System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | Coupling | Can assign | |||
| Foundation bolt | Carbon steel | ||||
Quality Assurance:
Hengtong's Quality Control programe is backed by a comprehensive Quality
Management System (ISO 9001:2000), deviced at the time of inception and
continuously upgraded. We have in place highly mechanised testing facilities, with procedures laid out to the requirement standards. The test facilities in
place permit the flawless testing of the complete range of our products.
customer visitting
our blower export to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise.
If you are interested in our air blower ,Please don't hesitate to visit our website.
htblower.en.china.cn
We will give you a favorable price.
