POWER SUPPLY 12V 2A CE UL GS UK SAA ADAPTER PLUG

Name: POWER SUPPLY 12V 2A CE UL GS UK SAA ADAPTER PLUG
Brand: FN-LINK
SKU: 113727427
Availability: InStock

US$ 2.55 - 2.65 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

FN-LINK

Model Number:

24W UL

Shenzhen Ofeixin Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name FN-LINK

Model Number 24W UL

Output Power Other, 24W

Output Type Single

Input Voltage Other, 100-240VAC

Output Voltage 12VDC

Output Frequency 47~63Hz

Output Current 2A

POWER SUPPLY 12V 2A CE UL GS UK SAA ADAPTER PLUG

Product Description

key features
Light,extra slim,sleek,compact design Green Power,Full complies with CEC level IV,MEPS IV EUP2010 High Power density Extra safe design,have got their respective safety approvals Completed protect function
key applications
Audio & Video Product POS machine ADSL Mobile devices Set-Top Box Medical device

Main Parameters

Input	Input Voltage	100-240Vac 50/60Hz
	inrush current:	100VAC full load,Max 20A 240VAC full load, Max 30A
	leakage current:	Max 0.25mA
Output	Output Power:	24W
	Output current:	12Vdc ±5%
	Output Voltage	2A
	Output DC Mode	USB Femal stocket or DC cord with plug
Test Standard	Ripple & Noise:	Vin 100Vac 60Hz Full load, 150mV p-p max. Vin 240Vac 50Hz full load, 150mV p-p max.
	Power consumption:	Max 0.3W
	Conversion efficiency:	86.20% min,Meet ERP V,DOE V
	OCP	Vin100Vac 60Hz , 110%~250% Vin230Vac 50Hz, 110%~250%
	Hi-pot test:	Primary.to.secondary:3000Vdc/10mA/60S for type test
	Protection:	Short Circuit Protection Over-voltage protection Over current protection
	Operating temperature	0...+40° C
	MTBF	50000 hours MTBF & 0.5% annual field failure rate @ 25°C

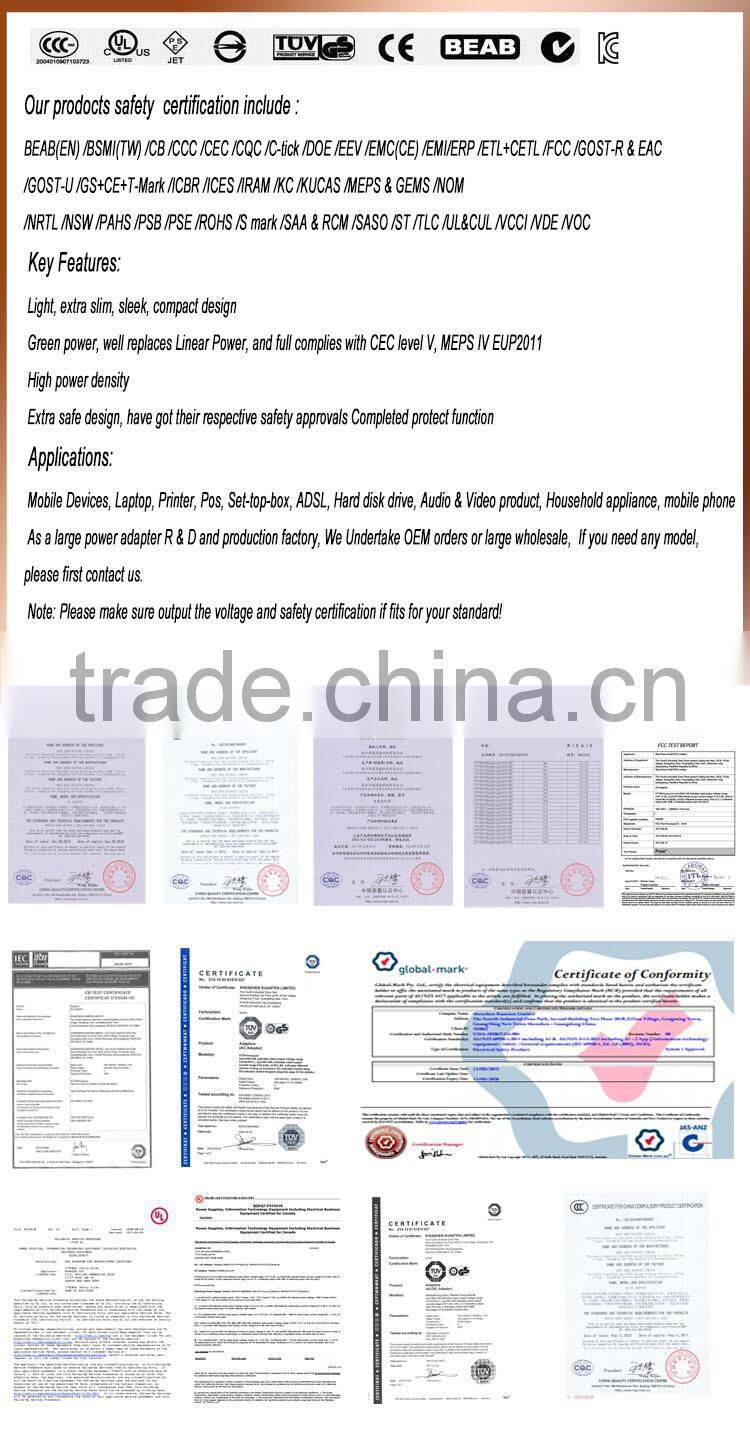

Approvel Standard	Certification	CB,GS,CE,UK,SAA,UL/cUL,CCC,FCC,TUV,C-TICK,KC,PSE etc.
Approvel Standard	Safty Standard	IEC/EN60950 IEC/EN61558 EN60065 GB4943

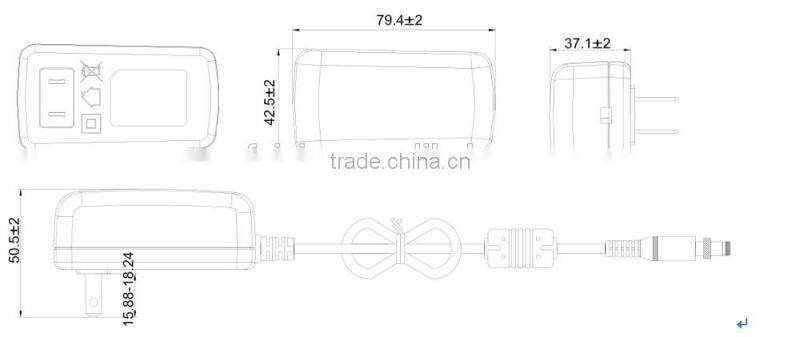

Mechanical SPEC

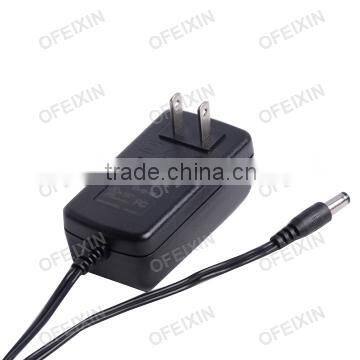

Products Display

Packaging & Shipping

Packing & Shipping

The items normally will be shipped out within 3 working days after the payment confirmed.
It will be shipped by DHL/TNT/UPS/FedEx/SF or other special way.Please contact with us and chose the best one.
Any accidents and delays or other issues cased by forwarder,please forgive that we can not take responsibility.
The sample which needs your charge. 5.You should have to pay for all fees of shipping.
