Factory OEM white and green color PPR Pipe for Cold and Hot Water

Specifications

Specifications:
OEM PPR Pipe for Cold and Hot Water
Material:PPR
Color:Grey/Whiteor as your requirement
Size:20-200m

OEM PPR Pipe for Cold and Hot Water

Specifications:

Material:PPR
Color:Grey/Green/White or as your requirement
Size:20-200mm

Length:4m or as your requirement

high quality and reasonable price
oem is welcome





1.PARAMETERS:

1.Pressure:PN12.5,PN16,PN20,PN25

2.Size(mm):DN20~200;EN2.0~18.3;

3.ODM/OEM



2.PP-R pipe qualifications:

SIZE	PN 1.25MPa	PN 1.6MPa	PN 2.0MPa	PN 2.5MPa
Outer Diameter (mm)	Wall Thickness  (mm)	Wall  Thickness (mm)	Wall Thickness  (mm)	Wall Thickness (mm)
20	2	2.3	2.8	3.4
25	2.3	2.8	3.5	4.2
32	3.0	3.6	4.4	5.4
40	3.7	4.5	5.5	6.7
50	4.6	5.6	6.9	8.3







3.DS PPR Pipe Advantages:

1. High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.

2. Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.

3. Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.

4. Corrosion Resistant: resist chemical matters or electron chemical corrosion.

5. Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.

6. Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.

7. Long Life: more than 50 years under normal conditions.

8. Recycled and Environment-friendly.





4.Applications:

 1.  Hot and cold water pipeline, including central-heating system
 2. Heating system, include floor-heating, radiator-heating pipeline;
 3. Potable water supplying pipeline
 4. Central air-conditioning system
 5. Irrigation system in public place and garden, greenhouse etc
 6.Industrial pipeline for supplying of chemical products.

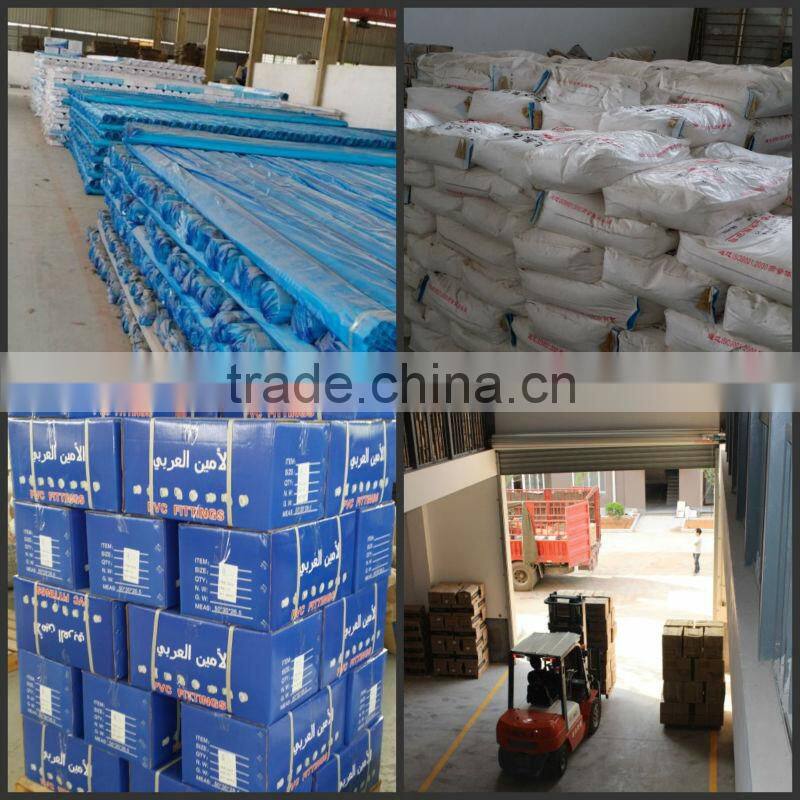

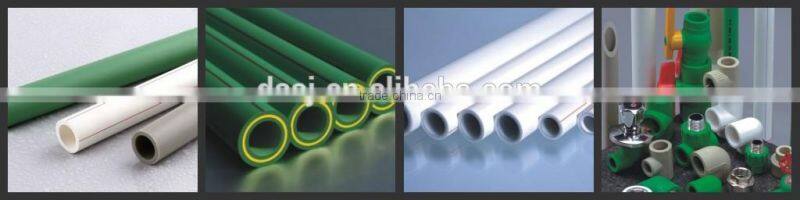

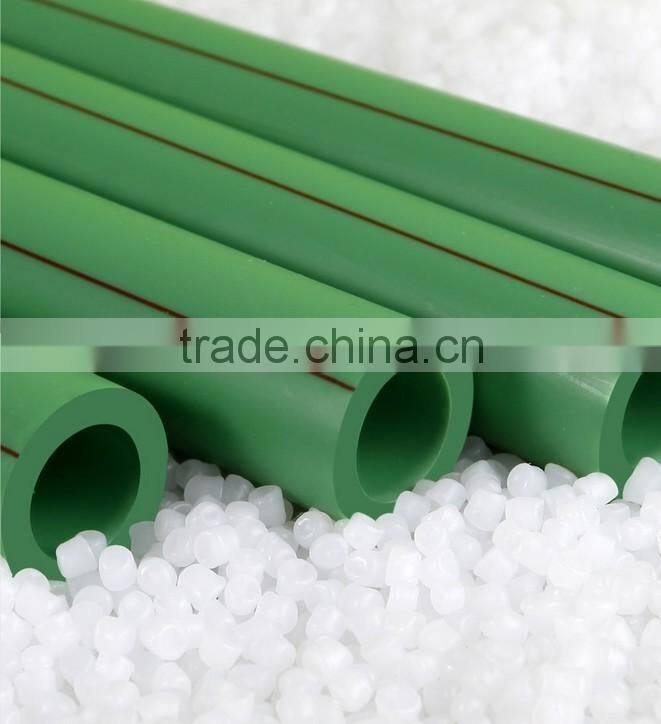

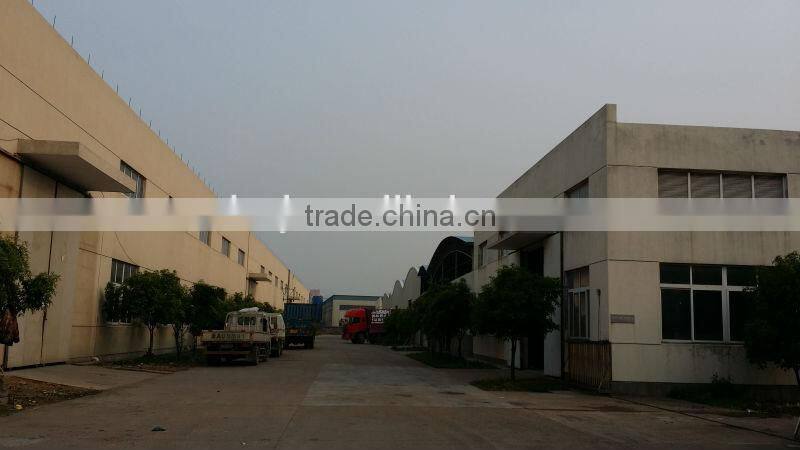

5.pictures:
