concrete aluminum formwork standard pin wall tie wedge

 Aluminum form pin

1 aluminum form pin
2 pin wedge fast system
3 mivan form pin wedge
4 pin wedge wall ties system'
5 pin 16*45,16*50,16*55,16*58,16*72,16*75,16*83,16*100,16*105,16*132,16*140,16*150,16*180,16*185,16*195

6 wedge, flat wedge 3*70.3*80

curved wedge:3*70mm

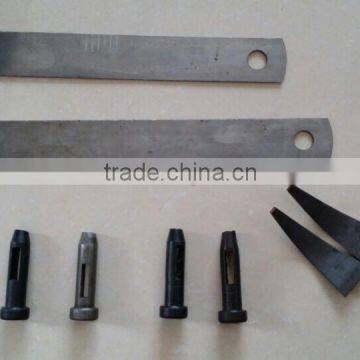

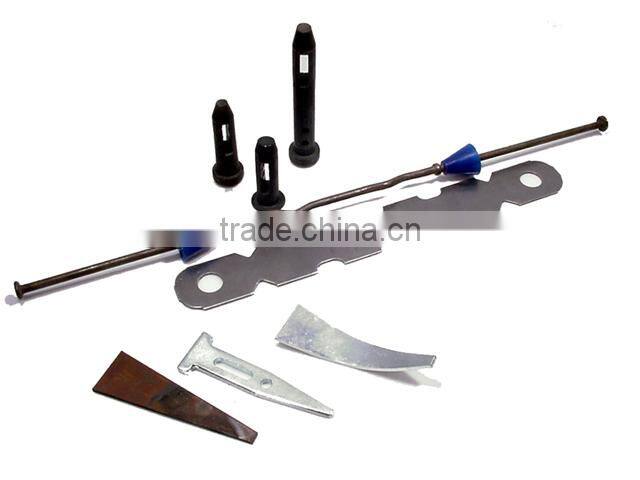

US aluminum form pin, wedge and wall ties

Pin , flat head pin, standard pin, tapered pin, combo filler pin

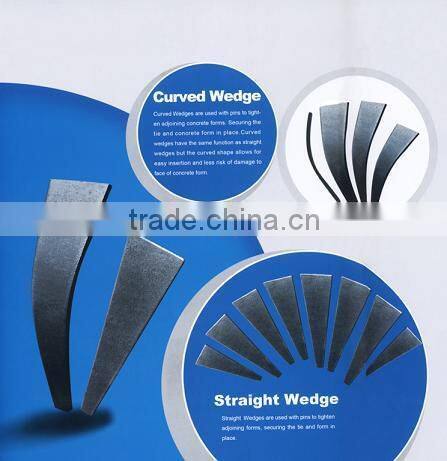

Wede, flat wedge, curved wedge

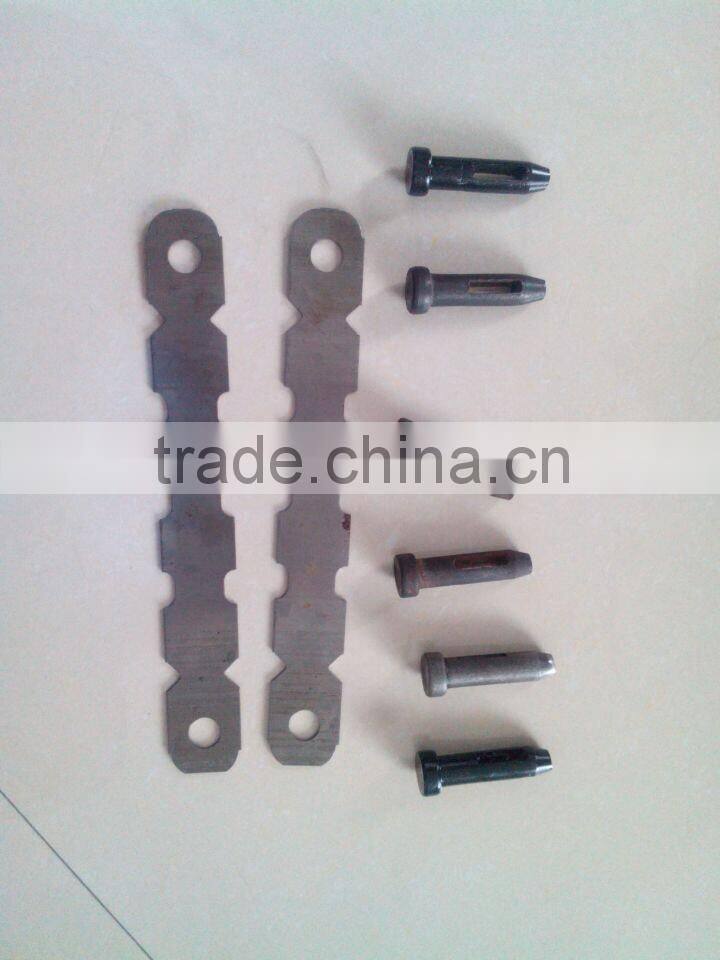

Wall ties, Nominal tie. wall tie,

pin and wedge used with wall ties in aluminum form system, its simple, fast, quick for unskill workers,

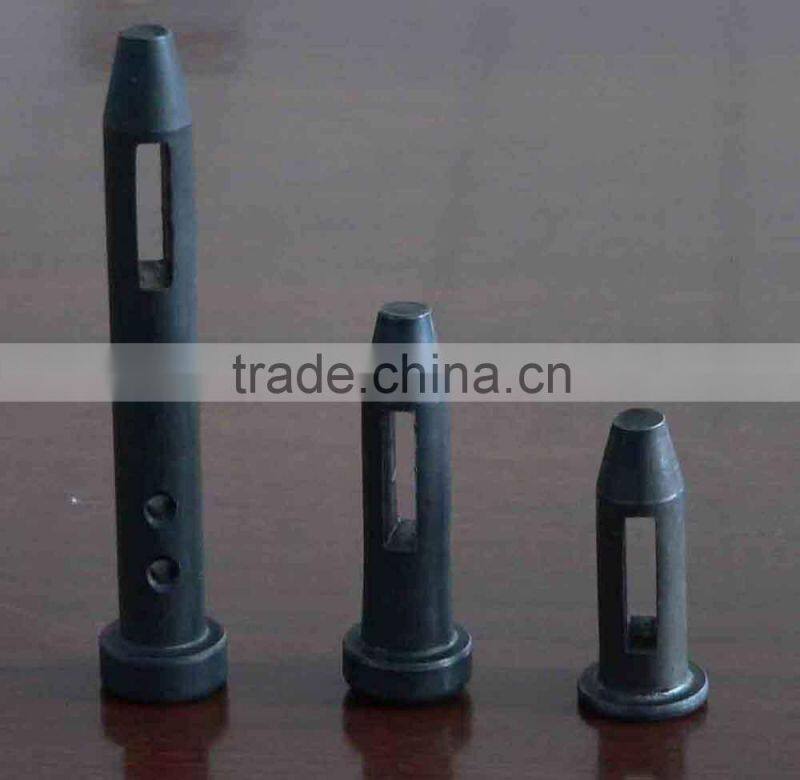

standard pin

1 the material is steel

2 concrete formwork standard pin

3 lenth x width 72mm x 16mm

4 with good quality and competitive price.

Our round, tapered pins have a milled wedge slot. the shank is designed to eliminate pin sag and improve ease of stripping. Pins are made from steel and are heat-treated for long life.

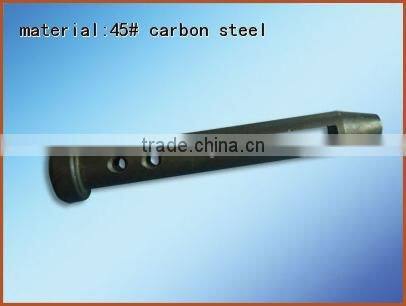

combo pin

1 the material is steel

2 concrete formwork combo pin

3 lenth x width: 120mm x 16mm

4 with good quality and competitive price.

This pin passes completely through 2" aluminum fillers and connects adjoining panels with a wedge. To convert to either 1" or 1½" filler simply insert duplex nail in the appropriate hole.
Combination with head - 1", 1½", 2"

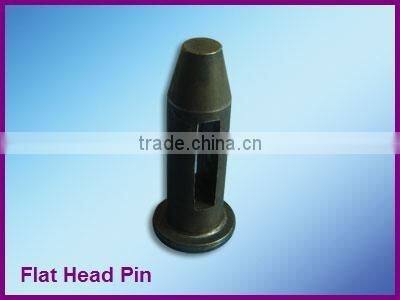

Flat head pin

1 the material is steel

2 concrete formwork flat head pin

3 with good quality and competitive price.

The flathead pin is used when pinning through a single rail or when placing concrete against an existing wall. Also used in lay down applications, such as 36” 96” panel, to pour a 36” tall concrete wall.
