Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > Vertical Drilling Machine
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
CNC or Not
Normal
Place of Origin
China
Brand Name
THL
Model Number
Z5040A/Z5045/Z5050A
Specifications

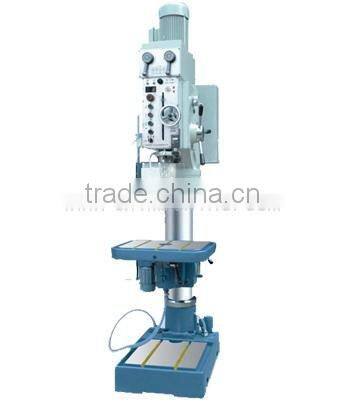

Vertical Drilling Machine
Model | Z5050A | Z5045 | Z5040A |
Max drilling capacity | Φ50/40mm | Φ45mm | Φ40/32mm |
Spindle travel | 225mm | 150mm | 190mm |
Distance spindle axis to column | 360mm | 330mm | 330mm |
Distance spindle nose to worktable surface | 590mm | 630mm | 630mm |
Distance spindle nose to base surface | 1190mm | 1200mm | 1200mm |
Spindle taper | MT.4 | MT.4 | MT.4 |
Spindle speeds range | 54-1450rpm | 83-1412rpm | 67-2500rpm |
Spindle speeds | 12 | 8 | 12 |
Worktable surface dimension (LXW) | 510×390mm | 450×390mm | 450×390mm |
Base dimension (LXW) | 470×435mm | 410×395mm | 410×395mm |
Overall height | 2400mm | 2160mm | 2300mm |
Motor | 3KW | 1.5/2.2 KW | 1.5/2.2 KW |
G.W. /N.W. | 800/750kg | 590/550kg | 550/500kg |
Ship measurement | 1070×700×2300mm | 1000×660×2260mm | 920×560×2295mm |
