tractor excavator high quality orange grab bucket
Wuxi Lydite Trade Company was founded in 2000, We are specialize in machine, such as hydraulic earth drill log grapple, plaster machine, lawn mower, excavator ripper, irrigation machine and so on. We have own factory , we have good after-sale. we can make machine as your required as soon as possible, and our machine all in factory price, you can get high quality and cheap machine, welcome to our company.

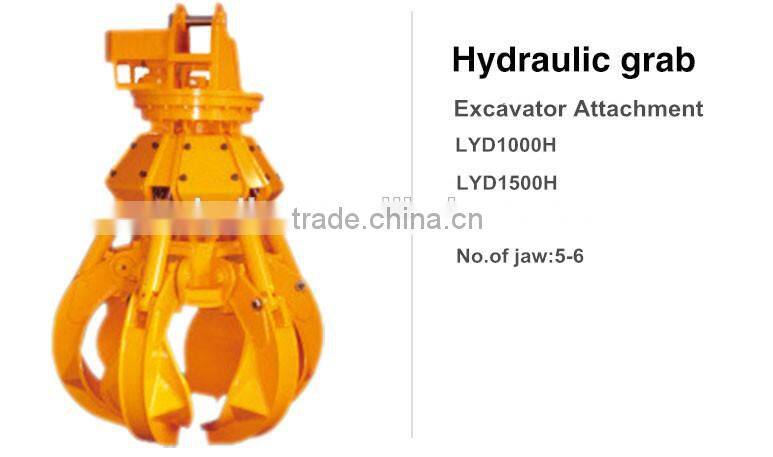

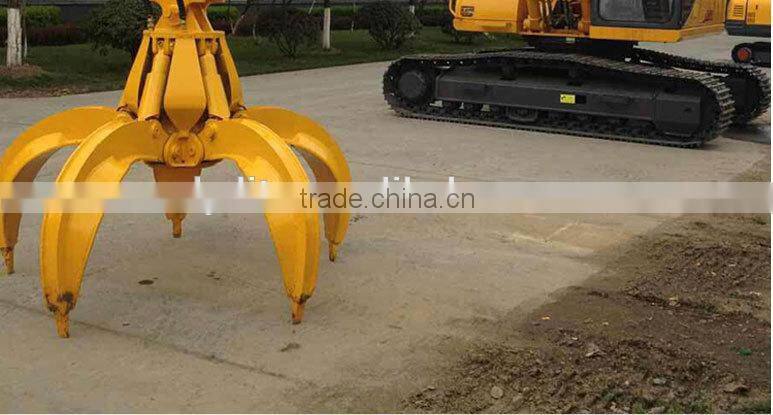

Hydrualic Grab
Hydraulic Grab is a high efficient equipment to handle waste steel ,iron,mineral,rubbish or other irregular massive material which replace human under various conditions. Hydrauilc grab belongs to hydraulic structural product. It is combined by hydraulic cylinder,grab bucket (jaw), connection columns, ear plate, earmuffs, bucket teeth, tooth block and other spare parts.The key driving parts is hydraulic oil cylinder. Excavator used hydraulic grab is divided into rotary and non-rotary two kinds .The non-rotary grab use the excavator oil pipeline which means it do not need additional hydraulic valve block and pipeline.Oppositely,the rotry grab need addtional hydraulic valve block and pipeline to operate.
Engineering application scope:
Hydraulic grab can operate under various conditions. The unique designed jaw curve is perfect for grabing waste steel,iron and other irregular massive material.It owns 2-6 jaw,each jaw drived by an individual oil cylinder to insure the materials won't leak. xcavator used hydraulic grab application scope:
1.Digging construction foundation, deep hole or load soil,sand,coal,macadam etc.
2.Digging and loading on the limited side of the channel or space

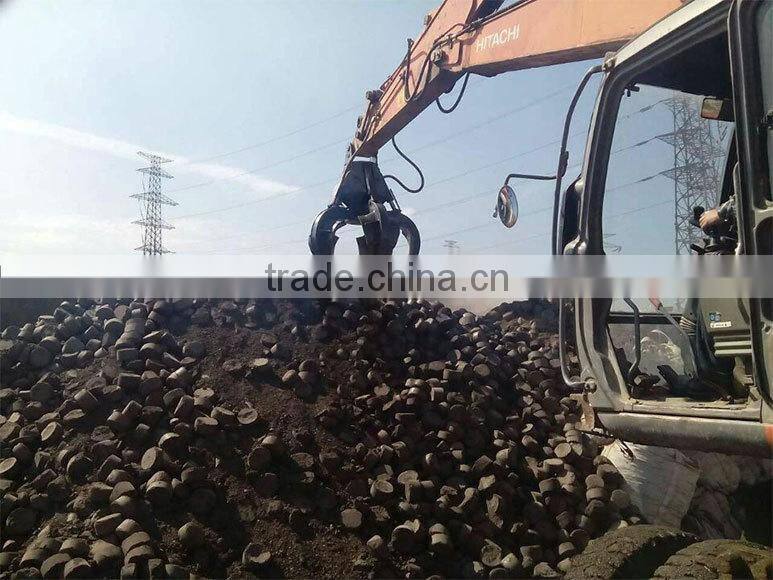

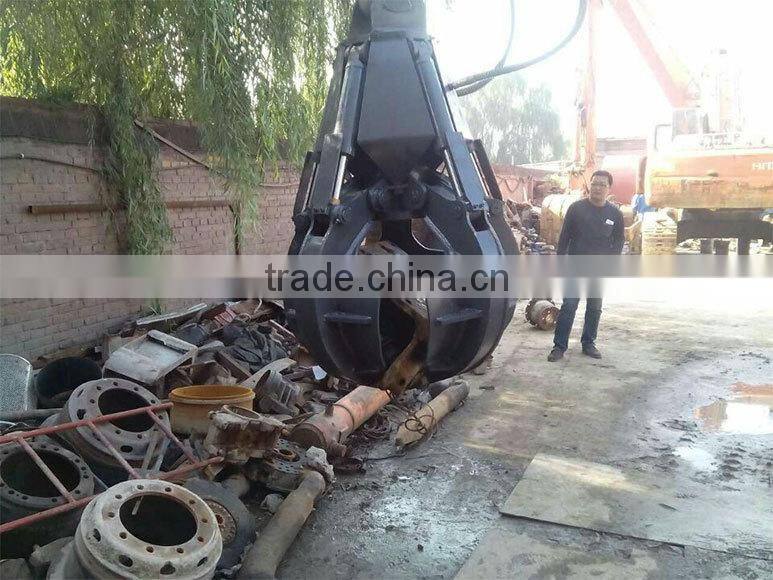

3.Loading,stacking and transportation waste steel,crushed aggregates, saw dust, ballast in iron and steel enterprises,port,wharf,railway station,storage etc.
performance parameter
description |
unit |
LYDITE |
|||||
1500H |
2000H |
3000H |
4000H |
5000H |
|||
volume |
m³ |
0.6 |
0.8 |
1 |
1.5 |
2 |
|
|
|
|
|
|
|
||
weight |
kg |
1050 |
1300 |
1500 |
1800 |
2100 |
|
|
|
|
|
|
|
||

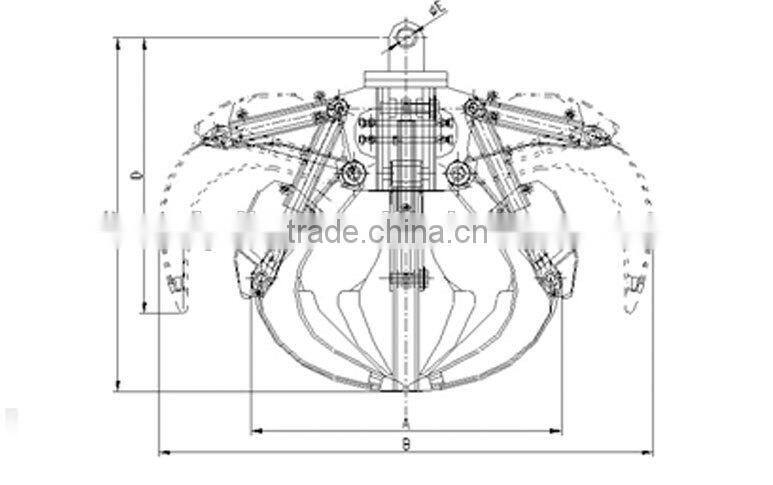

measurement |
A |
mm |
849 |
969 |
1050 |
1315 |
1705 |
|
|
|
|
|
|
||
B |
mm |
1859 |
1939 |
2440 |
2403 |
1699 |
|
|
|
|
|
|
|
||
C |
mm |
1850 |
1970 |
2300 |
2381 |
2939 |
|
|
|
|
|
|
|
||
D |
mm |
1550 |
1674 |
1900 |
2107 |
2673 |
|
|
|
|
|
|
|
||
Oil cylinder |
pressure |
bar |
280 |
||||
|
|
||||||
Oil flow |
1/min |
80~120 |
|||||
|
|
||||||
Rotation |
Pressure |
bar |
140 |
||||
|
|
||||||
Oil flow |
1/min |
80 |
|||||
|
|
||||||
Claw |
EA |
4 |
|||||
Machinery Tonnage |
ton |
12/17 |
18-27 |
28-35 |
26-42 |
43-47 |
|
|
|
|
|
|
|
||
products use
1.Digging construction foundation, deep hole or load soil,sand,coal,macadam etc.
2.Digging and loading on the limited side of the channel or space
3.Loading,stacking and transportation waste steel,crushed aggregates, saw dust, ballast in iron and steel enterprises,port,wharf,railway station,storage etc.

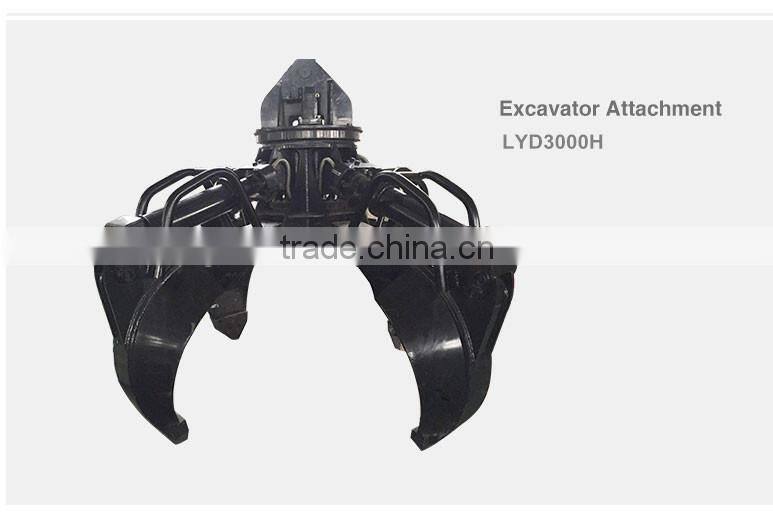

| UNIT | LYD1000H | LYD1500H | LYD2000H | LYD3000H | LYD4000H | LYD5000H | |
| Weight | kg | 510 | 1200 | 1560 | 1500 | 1800 | 2000 |
| Max jaw opening | mm | 1750 | 1780 | 1950 | 2440 | 2503 | 2699 |
| Height of closed grapple | mm | 1440 | 1540 | 1650 | 2300 | 2381 | 2939 |
| Set up pressure | bar | 260 | 260 | 260 | 280 | 280 | 280 |
| Opening flux | lpm | 20-70 | 60-120 | 60-120 | 80-120 | 80-120 | 80-120 |
| Volum | m³ | 0.4 | 0.6 | 0.8 | 1 | 1.5 | 2 |
| NO. of jaw | piece | 5-6 | 5-6 | 5-6 | 4 | 4 | 4 |
| Suitable excavator | ton | 5-11T | 12-18T | 18-2T5 | 28-35T | 26-42T |
43-47T |
