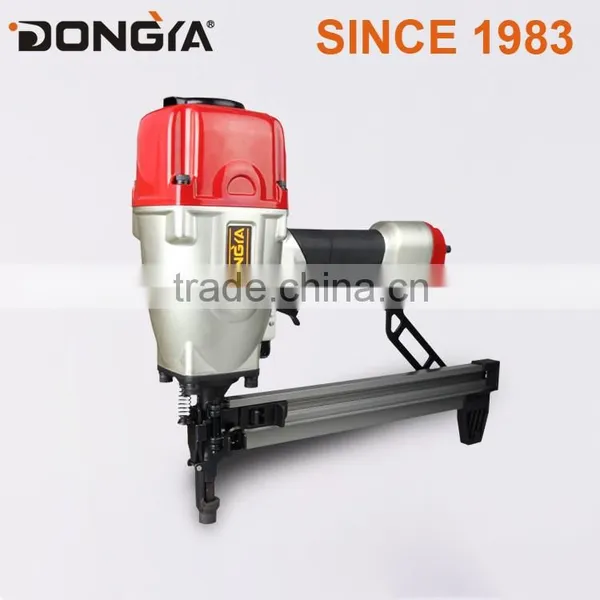

Heavy Duty SP40 Sheet Metal Stapler

Zhejiang Dongya Facility Co., Ltd.
Heavy Duty SP40 Sheet Metal Stapler thumbnail-1
Heavy Duty SP40 Sheet Metal Stapler thumbnail-2
Heavy Duty SP40 Sheet Metal Stapler photo-1
Heavy Duty SP40 Sheet Metal Stapler photo-2
US$ 80 - 200 MOQ: 51 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DONGYA
Model Number:
SP40
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DONGYA
Model Number SP40
Type Other, Sheet Metal Stapler
Power Source Pneumatic
Capacity 40pcs Nails

Samples please purchase from our Ali express shop: /store/101301

Product Description

Heavy Duty SP40 Sheet Metal Stapler

30 Year Production Experience

Industry's Leading Factory

Taiwan Engineer With 30 Years Experiences In Nail Gun Industry

Taiwan Spare Parts

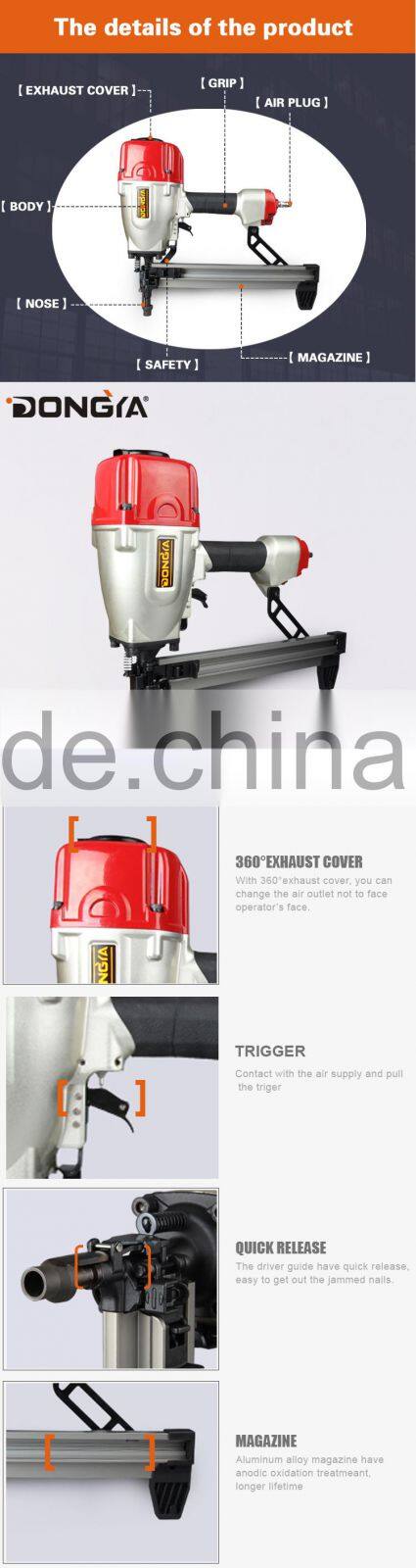

  FEATURE

 • Quick release design, extremely easy jam clearing

 • Light die cast body of aluminum alloy

 • Top loading design

 • "Partial Sequential mode"  safety system

 • Safety system available

Heavy Duty SP40 Sheet Metal Stapler

Heavy Duty SP40 Sheet Metal Stapler Parameters

Tool Diamensions:445x125x380mm(17.52X4.92X14.96in.)
Net Tool Weight:3.0kgs (6.60lbs)
Operate Pressure:5~7.5Kg/cm (75~110Psi)
Load Capacity:40 pcs Nails

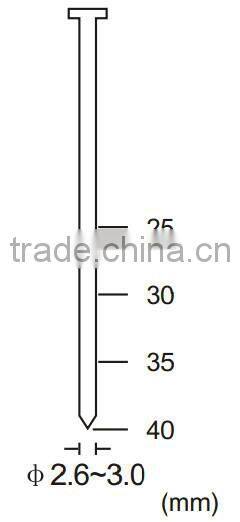

Nail Diameter:2.6~3.0mm(0.102~0.118")
Staple Length :25-40mm(1 "-1-1/2 " )



Heavy Duty SP40 Sheet Metal Stapler Advantage

1. 300000 working times

2.  ISO9001 international certificate

3. Easily broken parts are imported from Taiwan

4. 100% Spare parts can be supplied to you.

5. Very powerful for hard wood

Heavy Duty SP40 Sheet Metal Stapler

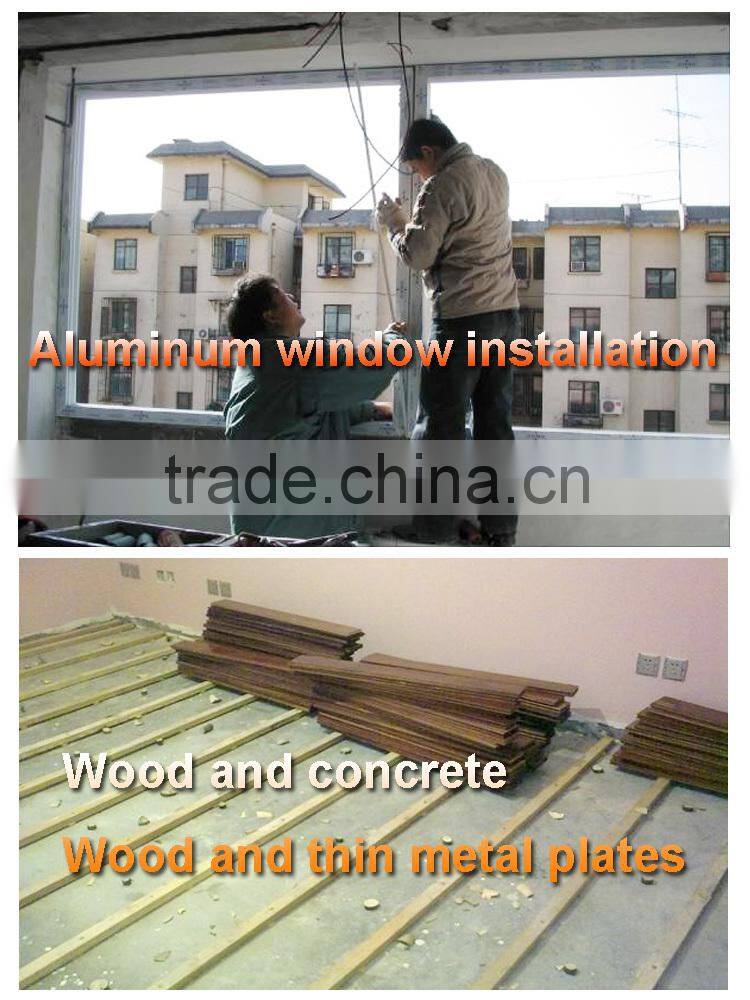

 MAIN APPLICATION FOR Heavy Duty Sheet Metal Stapler

Heavy Duty SP40 Sheet Metal Stapler

Packaging & Shipping

 Heavy Duty SP40 Sheet Metal Stapler





Service and Repars



 SERVICE AND REPAIRS

No.  SymptomProblemsSolutions
1.1Air Leak Air leak in the cylinder cap when tools don't work 1.Loose head valve piston seal or o-rings .Check and replace the head valve piston set
2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap Check and replace o-ring or cylinder cap gasket under the cylinder cap
1.2Air leak in Trigger area  when tools don't work1.Damaged o-ring in trigger valve Check and replace  o-ring
2.Damaged o-ring in trigger valve stem Check and replace o-ring
3.Dirt in the trigger valveCheck and clean the trigger valve
1.3Air leak in cylinder cap when tools are working 1.Damaged head valve piston o-ringsCheck and replace  o-rings
2.Damaged seal under cylinder cap Check and replace seal
1.4Air leak in nose when tools are working 1.Worn or damaged bumperCheck and replace bumper
2.Loose driver(piston unit) threadCheck and replace driver(piston unit)
1.5Air leak in Trigger area when tools are working1.Worn or damaged trigger valve headCheck and replace trigger valve head
2.Damaged head valve piston o-ringsCheck and replace head valve piston o-rings
2Failed to get driver(piston unit) back to the correct position completely.1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled.Straighten the driver(piston unit)  or verify driver guide(nose) and magazine
2.Worn or damaged nozzle  Check and replace nozzle
3.The space between piston o-ring and  cylinder is too tight.Check if the cylinder is adequate lubrication or replace the o-ring on the piston.
3Work weakly and sluggishly1. Worn or damaged  piston o-ring Check and replace piston o-ring
2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings  Place 2 or 6 drops of oil on o-rings or replace  head valve piston o-rings
3.Dirt in the nozzleCheck and clean the nozzle
4Tool jams frequently1.Damaged or Worn driver (piston unit)Check and replace driver (piston unit)
2.Damaged or Worn driver guide (nose)Check and replace  driver guide (nose)
3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too bigCheck and replace driver guide cover
5Nail can not be shot1. Driver (piston unit) can't return to the correct position.Refer to no. 1  Symptom
2.Driver guide(nose) can not match magazine wellCheck and correct the position between driver guide(nose) and magazine
3.Worn or damaged nail pusher compression spring Check and replace nail pusher compression spring



Company Information



Heavy Duty SP40 Sheet Metal Stapler
Heavy Duty SP40 Sheet Metal Stapler
Heavy Duty SP40 Sheet Metal Stapler
 WHY CHOOSE US?

     1) 30 Years Production Experience

     2) 13 Years Alibaba Gold supplier with High Reputation

     3) Alibaba Trade Assurance USD30,000

     4) 100% QC Inspection before Shipment

     5) Engineer Team from Taiwan

     6) Competitive Price

     7) Lifelong After-Sale Service

     8) Advanced Machines

     9) CE Certificate and ISO 9001:2008

    10) OEM Available

    11) Sample Available
