Specifications
1. Brand: TCI2. High quality raw material
3. Senior technical person
4. Locate at Dalian, near Dalian port
5. CESI report
XGU type suspension clamp, turnnion type, power fitting

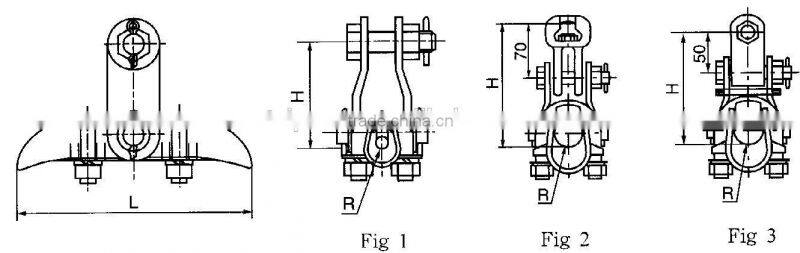

Main parameters and drawing:
Cat No. |
Conductor Dia.(mm) |
Dimensions(mm) |
Fig. No. |
UTS (KN) |
Weight (Kg) |
||
|
|
H |
L |
R |
|
|
|
XGU-1 |
5.0-7.0 |
82 |
180 |
4.0 |
1 |
40 |
1.4 |
XGU-2 |
7.1-13.0 |
82 |
200 |
7.0 |
|
40 |
1.8 |
XGU-3 |
13.1-21.0 |
102 |
220 |
11.0 |
|
40 |
2.0 |
XGU-4 |
21.1-26.0 |
110 |
250 |
13.5 |
|
40 |
3.0 |
XGU-5 |
23.0-33.0 |
87 |
300 |
17 |
|
60 |
4.7 |
XGU-6 |
34.0-45.0 |
93 |
300 |
23 |
|
60 |
5.1 |
XGU-5A |
23.0-33.0 |
157 |
300 |
17 |
2 |
60 |
5.7 |
XGU-6A |
34.0-45.0 |
163 |
300 |
23 |
|
60 |
6.1 |
XGU-5B |
23.0-33.0 |
137 |
300 |
17 |
3 |
60 |
5.4 |
XGU-6B |
34.0-45.0 |
143 |
300 |
23 |
|
60 |
5.8 |
XGU-7B |
45.0-48.7 |
146 |
300 |
26 |
|
60 |
6.4 |
Packaging:

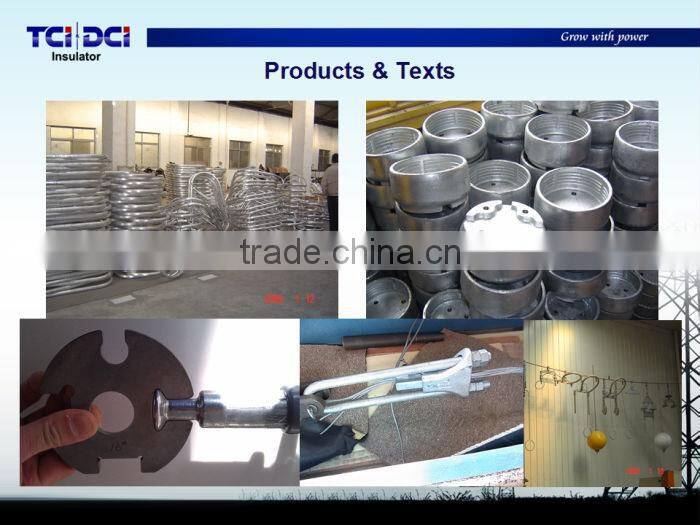

Our factory and products:
Certificated by ISO 9001 and ISO 14001
Test report:
Third party test report:
Dalian Tucheng International Corp., Ltd(TCI)
Our main international markets:
Supply records:
Some customers visit us:
Purchase notice:
1.the coupling of fitting
2.the number of grading ring
3.the colour of silicon rubber,usually red or grey
4.the main dimension and rate voltage
5.we can design and produce according to the drawings and characteristics of customers
6.other particular requirement
If you can cooperate with us,we will be honored
Our professional service before and after sale.
The reasonable price.
Any questions from you are welcome and will be replied in 24 hours.
Dalian TuCheng International Co.,LTD
Skype: chris.wu50
