concrete pile breaker hydraulic tool
Hydraulic pile breaker can break such like cast-in-place piles, precast piles etc. It can be divided into round and square by the pile shape. Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering. Normally hydraulic round pile breaker can break pile diameter from 600-2500mm and hydraulic square pile breaker is suitable for square piles from 300-650mm. Our machine can meet the requirements of all kinds of large-scale infrastructure construction.
Hydraulic Pile Breaker Working principle
Hydraulic pile breaker offer its several cylinders oil pressure through power source and cylinder directly drive the chisels and squeeze the pile body at the same time to break the pile. It operates easily and has high effiency, low noise, low cost in the pile cutting construction process, which is suitable for pile group in construction engineering. Hydraulic pile breaker machine adopts highly modular combinations and connect modules through axis pins. It can break piles in certain ranges
of diameter by different number of modules combination.
Hydraulic Pile Breaker Advantages
1.It is the most advanced pile breaker and can achieve high efficiency, low noise in pile broken.
2.It has the advanced modularization and break different diameter pile by different number of modular combination.
3.It has high cost performance, low operating cost and its cost performance is nearly the same with the foreign products.
4.It operates easily and don’t need any professional skill, besides, it operates very safely.
5.It can be connected to a variety of engineering machinery to make achieve of products’ commonality and economical efficiency.
6. It also can be hanged in the excavators, cranes and telescopic arm, etc.High life design can bring you the best benefits.
Hydraulic Pile Breaker Performance Parameter
| Module Number | Module | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 18 |
| Combination Total Weight | KG | 2200 | 2475 | 2750 | 3025 | 3300 | 3575 | 3850 | 4125 | 4400 | 5000 |
| Pile Diameter Range | mm | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1460-1970 | 1620-2140 | 2500 |
| Max.Thrust | 300KN | Max.Cylinder Required | 20L/min | Machinery Tonnage | ≥20t |
| Max.Cylinder Trip | 250mm | Breaking Pile Quantity/8h | 80/8h | Single Module Weight | 278KG |
| Max.Cylinder Pressure | 30Mpa | Max.Hoist Capacity | ≤500mm | Single Module Size | 885x780x340mm |
Hydraulic Pile Breaker Details

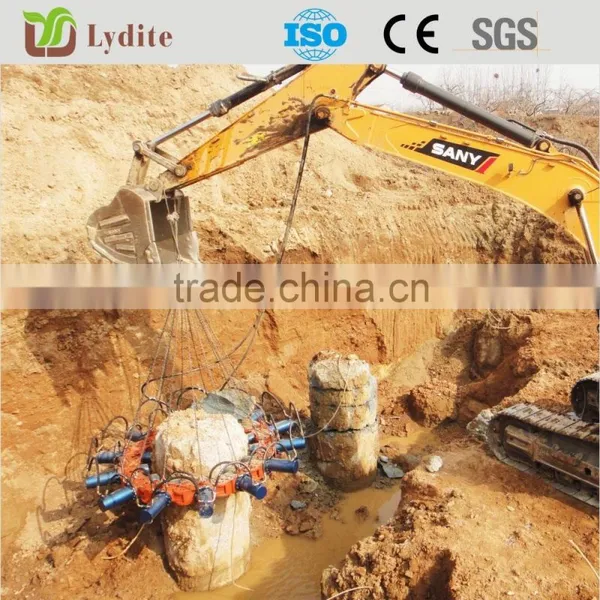

Hydraulic Pile Breaker Construction Site
If you are interested in our hydraulic pile breaker, please tell us your requirements on the construction first.
Something like the pile diameter which you will break/cut, the grade of concrete, round pile or square pile, the concrete reinforcement arrangement. We will introduce the most suitable products to you.
Welcome to visit our factory, If you have any questions, please feel free to contact me!
