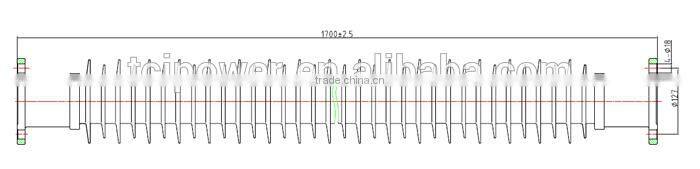

150kV Composite Post Insulator GIS Post Insulator
Voltage: 150kV
Cantilever strength: 4kN
End fitting: Cast iron flanges. according to IEC61109,
Technical specifications:
1. Nominal System Voltage 150kV
2. Dry Lightning Impulse Withstand Voltage 750kV
3. 1 Min Wet Power Frequency Withstand Voltage 325kV
4. Specified Cantilever Load 4kN Min Creepage Distance 4250mm
5. The color of weather sheds is light grey
6. Standard applied: IEC 61109:2008
7. Model:FZSW-150/4
150kV Composite Post Insulator
a. High mechanical strehgth;
b. Good performance of hydrophobicity anti-pollution;
c. Excellent electrical specification;
d.Small volume and light weight.
Wooden case on pallet.
Full technical support, timely delivery, best quality with most competitive price.
We can do better on what you can't see.
Quality is always the first for TCI.
