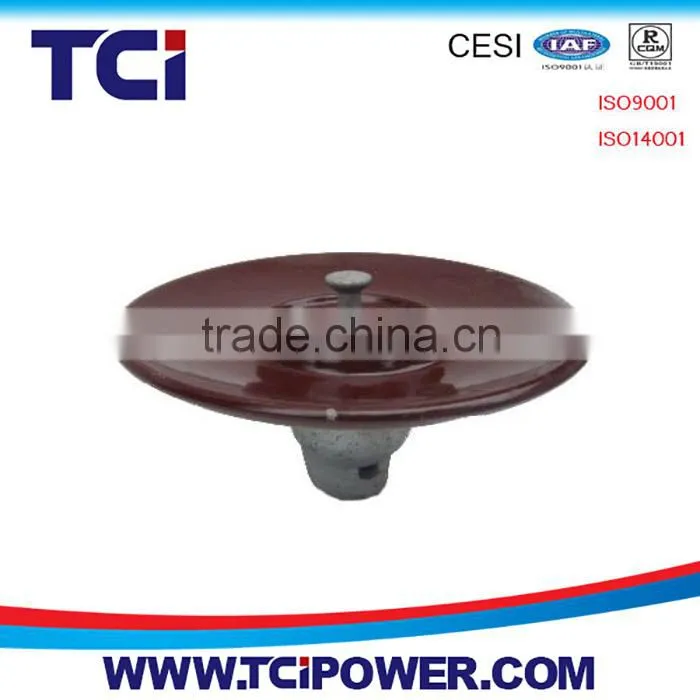

High Voltage 33kv Cap and Suspension Pin Type Porcelain Insulator

High Voltage 33kv Cap and Suspension Pin Type Porcelain Insulator thumbnail-1
High Voltage 33kv Cap and Suspension Pin Type Porcelain Insulator photo-1
US$ 1 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
TCI
Model Number:
132kv insulator
Contact Supplier Request Quote Chat Now
Dalian Tucheng International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Main Seaports of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name TCI
Model Number 132kv insulator
Type Insulator
Material Porcelain
Application High Voltage
Rated Voltage 10~50kv
Tensile Strength 30~160kn

Specifications

33kv Cap and suspension insulator
1. excellent quality.
2. according to international standard
3. type test report.
4. ANSI.

High Voltage 33kv Cap and suspension pin type porcelain insulator

Please send us your technical specification or drawings by email, so that we provide the offer to you.



Service Condition:

Ambient temperature                            -40°C~+40°C

AC power supply frequency                        ≤100 HZ

Earthquake intensity:                                 ≤8

Altitude                                                       ≤1500 m

Maximum wind velocity                               ≤35 m/s

 High Voltage 33kv Cap and suspension pin type porcelain insulator



Class ANSI

52-1

XP-4.5C-M

52-2

XP5-7C-M

52-3 XP-7-M

52-4

XP-7C-M

52-5

XP-11-M

52-6

XP-11CM

52-8

XP-16-M

52-9

XP9-4.5C-M

52-10

XP-16C-M

Fig. NO

1

2

3

4

3

4

3

5

4

Main Dimensions

mm

D

165

190.5

254

254

254

254

279.4

114

297.4

H

139.7

146

146

146

146

146

146

160

165

Creepage Distance/mm

117.8

209.5

292

292

279.4

279.4

279.4

171

279.4

Power Frequency Puncture Voltage KV

80

90

110

110

110

110

110

80

110

Average Flashover Voltage

Power-Frequency

Dry/KV

60

65

80

80

80

80

80

60

80

Wet/KV

30

35

50

50

50

50

50

30

50

Critical-Impulse

15*40us Wave

Positive/KV

100

115

125

125

125

125

125

125

125

Negative/KV

100

115

130

130

130

130

130

90

130

Radio-Influence-Voltage Date

Test Voltage to Ground/KV

7.5

7.5

10

10

10

10

10

7.5

10

Maximum RIV at 1000KHZ/uKV

50

50

50

50

50

50

50

50

50

Electromechanical Load/kg

4500

6750

6750

6750

11250

11250

16350

4540

16200

Mechanical Impact Strength/in-16

45

50

55

55

60

60

90

45

90

Time Load Test Value/kg

2700

4500

4500

4500

6750

6750

10900

2720

10800

Weight(kg)

2.5

3.9

4.6

4.9

5.6

5.9

6.9

2.6

7.2









1.certificated by IEC ANSI GB ISO9001
2.We can design and produce according to the drawings.

3.we supply insulators with reliable quality reasonable price and good service.

4.We attend 2007 Hannover exhibition, India electricity 2008 exhibition,2008 Hannover exhibition,2009 and 2010 Dubai Middle East electricity exhibition



High Voltage 33kv Cap and suspension pin type porcelain insulator

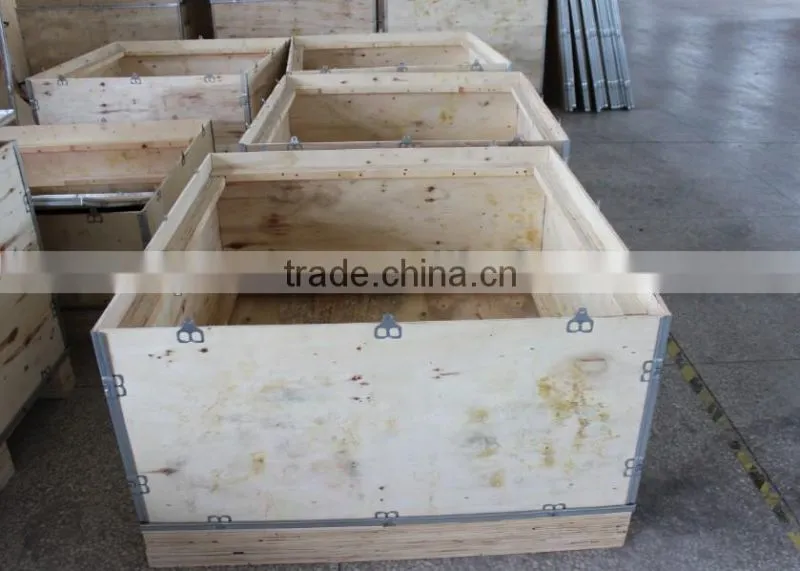

Packaging.

High Voltage 33kv Cap and suspension pin type porcelain insulator



About us

Dalian TuCheng International co., Ltd (TCI).

Business covering: manufacturing and exporting insulators, power fittings, bushings, cables and

accessories for power transmission lines and substations;

In addition to supplying high-quality products to our customers, we also provide superior technical

assistance and services to meet their various needs. Our reliable quality, competitive prices and

good business practices have enabled us to establish successful business relationships with

companies from over 20 countries around the world.

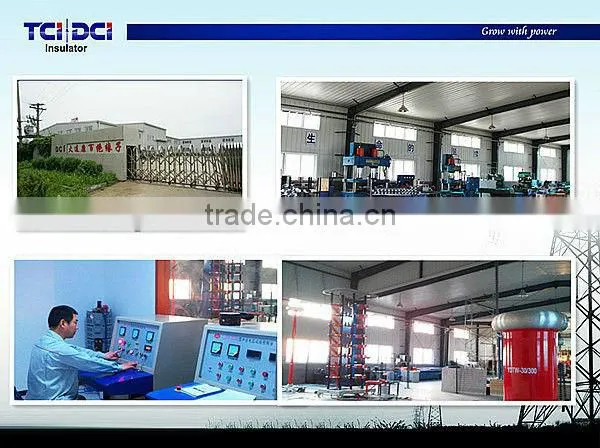

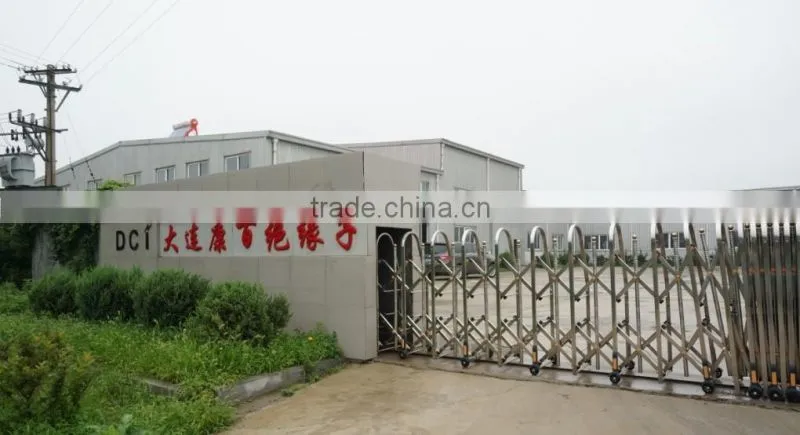

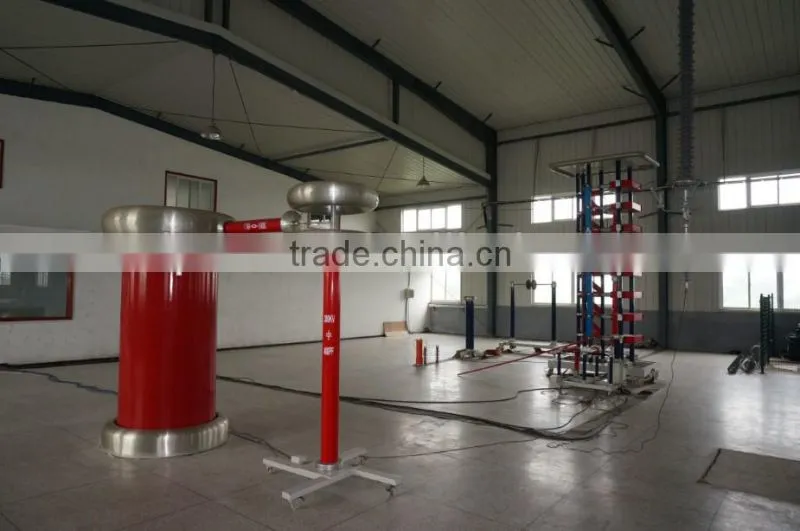

Welcome to visit our factory.

High Voltage 33kv Cap and suspension pin type porcelain insulator



High Voltage 33kv Cap and suspension pin type porcelain insulator



High Voltage 33kv Cap and suspension pin type porcelain insulator

Tips: Since we (TCI) have many different models and types,providing exact model or detailed technical specification in your inquiry will largely help us finding your a better solution within less time and reducing your communication cost.





Contact with me:Jeff Song 24Hours in

Email me:song@tcipower.com

Dalian Tucheng International Corp.

Dalian Composite Insulator Corp.

Tel:+86 411 82789881/82789882 (ex220)

Fax:+86 411 82789882
