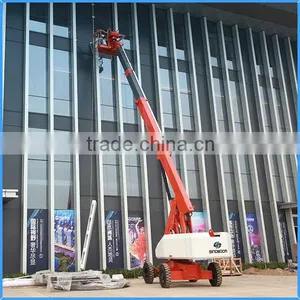

China 20m telescopic boom lift for selling on alibaba
- 500 Set / Sets per Month
- main ports of china
- T/T
- China easy operated scissor lift platform, truck mounted platform scissor lift
- China low cost hydraulic elevating platform, truck mounted platform scissor lift
- 2015 hot sale double ladder stop type hydraulic scaffolding lift
- Big discount offered 8m lift self propelled hydraulic outdoor aerial work platform scissor lift
- China factory direct sale self propelled scissor lift table / hydraulic scissor lift
- China good working performance hydraulic scissor lift table, electric mini scissor lift
Product Details
Place of Origin: | Hunan, China | Brand Name: | SINOBOOM | Model Number: | GTBZ20 |
Lift Mechanism: | Telescoping Lift | Lift Drive / Actuation: | Hydraulic | Power: | 45KW |
Rated Loading Capacity: | 250kg-480kg | Min. Lifting Height: | 0m | Max. Lifting Height: | 22.6m |
Table Size: | 1.45*0.85*1.24m | Overall Dimensions: | 9.57*2.49*2.84m | Weight: | 11815kg-11885kg |
Certification: | CE/ISO/ADR/ARAMCO | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Self-propelled sky lift applies to shipbuilding, large steel structure building, construction, civil engineering and advertising industries, etc. This aerial work platform is safe and reliable. Designed with the concept of durability, solidity, and excellent performance, it can meet the need of extremely challenging operating conditions.
Technical parameters
Models | GTBZ20 | |
Measurements | Metric | US |
Dimensions | ||
Platform height max. | 20.6 m | 68 ft |
Working height max. | 22.6 m | 74 ft |
Horizontal treach max. | 17.5 m | 57 ft 4 in |
Length-stowed | 9.57 m | 30 ft 1 in |
Width-stowed | 2.49 m | 8 ft 2 in |
Height-stowed | 2.84 m | 9 ft 3 in |
Ground clearance | 0.45 m | 1 ft 5 in |
Wheelbase | 2.49 m | 8 ft 2 in |
Platform size (L*W*H) | 1.45 m *0.85 m *1.24 m | 4 ft 8 in*2 ft 8 in*4 ft 1 in |
Productivity | ||
Max. platform occupancy | 2 | 2 |
Lift capacity | 250 kg-unlimited;480 kg-limited | 551 lbs-unlimited;1058 lbs-limited |
Turntable rotation | 360° continuous | 360° continuous |
Platform rotation | 160° | 160° |
Drive speed-stowed | 0~6.3 km/h | 0~3.9 mph |
Drive speed-raised | 0~1.1 km/h | 0~0.7 mph |
Gradeability | 30%(2WD)45%(4WD) | 30%(2WD)45%(4WD) |
Turning radius-inside | 1.66 m | 5 ft 4 in |
Turning radius-outside | 4.97 m | 16 ft 3 in |
Turning tailswing | 1.42 m | 4 ft 7 in |
Max. allowable slope | 3° | 3° |
Max. noise on normal use | 386 dB(A) | 386 dB(A) |
Drive & steer model | 2WD*2WS/4WD*2WS | 2WD*2WS/4WD*2WS |
Tire size/type | 9.00 - 20/ 7.0 solid | 9.00 - 20/ 7.0 solid |
Power | ||
Power source | Original Cummins/Perkins Engine | Original Cummins/Perkins Engine |
Fuel tank capacity | 160 L | 42.27 gal |
Control voltage | 12 VDC | 12 VDC |
Power | 45 KW | 45 KW |
Weight | ||
Overall weight | 11815 kg(2WD) 11885 kg(4WD) | 26048 lbs(2WD) 26202 lbs(4WD) |
Standards Compliance | CE/ISO/ADR/ARAMCO | CE/ISO/ADR/ARAMCO |
The core configuration
Production Line
Product Inventory

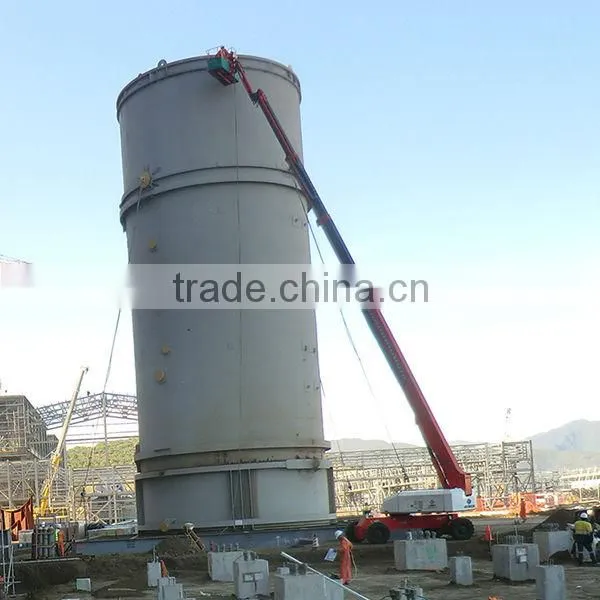

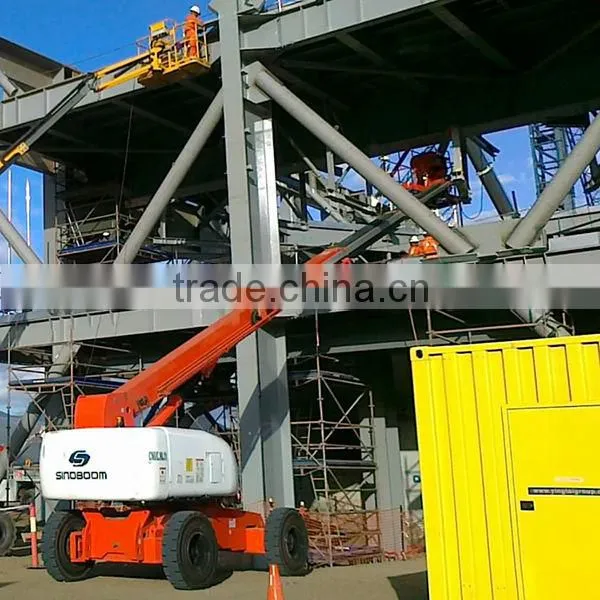

Application
Worldwide Show
About Us
Sinoboom is engaged in research, development, manufacturing, sale and service of aerial work equipment. There are four series of aerial work platforms, including articulated boom lift, telescopic boom lift, scissor lift and spider lift, with working height from 4M - 42M in full series and various types, we owns the proprietary core technology and 30 items of intellectual property.
Contact Us
Hunan Sinoboom Heavy Industry Co., Ltd.
No. 128, East Of Jinzhou Avenue, Jinzhou New District, Ningxiang County, Changsha, Hunan, China
Tel: 0086-731-87116222
Skype:
Why Choose Us
1. Provide a various kinds of aerial work platform, which could meet customer's needs.
2. We could help customer choose the right model and also provide customization.
3. All electrical elements are used world famous brand.
4. Provide timely delivery,Sales engineers are ready to solve all problem.
5. Provide spare parts, worksite installation guidance and training operation.
1. Service concept: Exceed clients’ expectation.
2. Presale service: Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
3. In sale service: We provide free guidance of installation and debugging and free training of operation, care and maintenance.
4. After-sale service: One-year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
5. Quick responses: we have a complete service network, 400 free hotline services for 24hours and assist you to solve the problem in a short time.
6. Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
1. QTY?(set)
2. Purchase period?(in a month, two month, three months or others)
3. Delievery Time?(in a month, two month, three months or others)
4. Trade term? ( FOB/CIF to your nearest seaport)
5. Demand Working Height?
6. Demand Platform Size?
7. Platform load capacity?
8. Demand power source?(electric or hydraulic)
9. Demand drive motion?(2 wheel driving or 4 wheel driving)
10. Cooperation property?(dealer, agent, end-user, including company or personal use )
11. Application field?(construction, shipyard, industiral, airport, municipal garden
or others)
We'll give you an exact quotation based on your demand after confirming the above information.
