Scissor lift applies to indoor and outdoor flat ground conditions. It provides users reliable safeguard according with CE standard. Hydraulic elevated work platform is the electrical self-propelled work platform with low-noise and non-pollution. The spacious platform and great load capacity ensure widely usage.

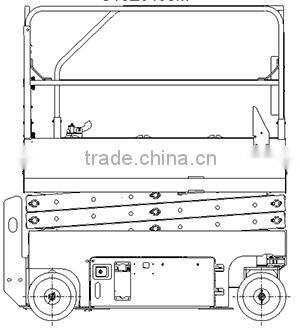

Technical parameters
Models |
GTJZ0408M |
|
Dimensions | ||
Platform height max. |
15 ft (4.6 m) |
|
Working height max. |
21 ft (6.6 m) |
|
Platform extended |
3 ft (0.9 m) |
|
Length - stowed |
5.84 ft (1.78 m) |
|
Width - stowed |
2.65 ft (0.81 m) |
|
Height - stowed |
6.89 ft (2.1 m) |
|
Wheelbase |
4.31 ft (1.315 m) |
|
Ground Clearance |
0.23 ft in (0.07 m) |
|
Platform size (L*W*H) |
5.38ft*2.5ft*3.6ft (1.64 m*0.76 m*1.1 m) |
|
Productivity | ||
Max. platform occupancy |
2(indoor) 1(outdoor) |
|
Lift capacity |
617 lbs (280 kg) |
|
Lift capacity - extension deck |
265 lbs (120 kg) |
|
Drive speed - stowed |
0~4 km/h |
|
Drive speed - raised |
0~0.8 km/h |
|
Gradeability |
30% |
|
Turning radius - inside |
0.88 ft (0.27 m) |
|
Turning radius - outside |
5.34ft (1.63 m) |
|
Raise / Lower speed |
15s~20s / 28s~33s |
|
Controls |
Proportional |
|
Drive&steer model |
2WD, front-wheel |
|
Brake |
2 rear wheel |
|
Tire Size/type |
305*115mm/solid |
|
Power | ||
Battey |
6V*4/225Ah |
|
Hydraulic system tank vol. |
18 L |
|
Power unit |
24VDC ,3 KW |
|
Weight | ||
Overall weight |
3573 lbs (1261 kg) |
|
StandardsCompliance |
CE/ISO/ADR/ARAMCO
|
|
The core configuration
Production Line
Product Inventory

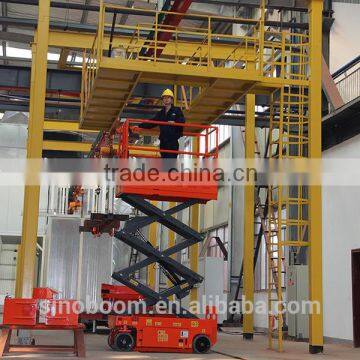

Application
Worldwide Show
About Us
Sinoboom is engaged in research, development, manufacturing, sale and service of aerial work equipment. There are four series of aerial work platforms, including articulated boom lift, telescopic boom lift, scissor lift and spider lift, with working height from 4M - 42M in full series and various types, we owns the proprietary core technology and 30 items of intellectual property.
Contact Us
Hunan Sinoboom Heavy Industry Co., Ltd.
No. 128, East Of Jinzhou Avenue, Jinzhou New District, Ningxiang County, Changsha, Hunan, China
Tel: 0086-731-87116222
Skype:
Why Choose Us
1. Provide a various kinds of aerial work platform, which could meet customer's needs.
2. We could help customer choose the right model and also provide customization.
3. All electrical elements are used world famous brand.
4. Provide timely delivery,Sales engineers are ready to solve all problem.
5. Provide spare parts, worksite installation guidance and training operation.
1. Service concept: Exceed clients’ expectation.
2. Presale service: Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
3. In sale service: We provide free guidance of installation and debugging and free training of operation, care and maintenance.
4. After-sale service: One-year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
5. Quick responses: we have a complete service network, 400 free hotline services for 24hours and assist you to solve the problem in a short time.
6. Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
1. QTY?(set)
2. Purchase period?(in a month, two month, three months or others)
3. Delievery Time?(in a month, two month, three months or others)
4. Trade term? ( FOB/CIF to your nearest seaport)
5. Demand Working Height?
6. Demand Platform Size?
7. Platform load capacity?
8. Demand power source?(electric or hydraulic)
9. Demand drive motion?(2 wheel driving or 4 wheel driving)
10. Cooperation property?(dealer, agent, end-user, including company or personal use )
11. Application field?(construction, shipyard, industiral, airport, municipal garden
or others)
We'll give you an exact quotation based on your demand after confirming the above information.
