PP material one float point level switch

 10W/100V  Magnetic plastic  Float water level sensor to detect level height

Plastic water high / low  PP float ball level sensor switch For tank  level control

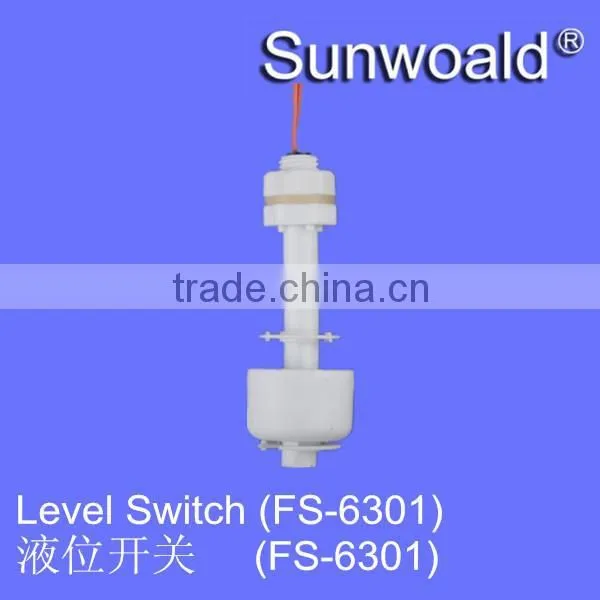

PP material one float point level switch   FS-6301

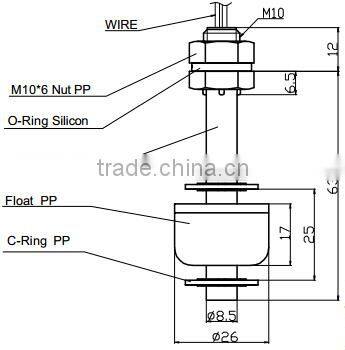

Size:   Length 63 x Float D26MM

Contact form : Normally Open /NO

Max Voltage : 100V  or  300 V

Max Contact Rating:  10W or 70W

Max Current: 0.5A  or 1 A

Temperature Rating:  -10 °C  ~ +60°C

Electrical life : according to client need

Certificate :  SGS / RoHS

Description  of  water level float switch :

PP plastic foam ball float liquid level switch is fixed size through the plastic mold injection

molded parts, is a simple, easy to use liquid level control devices, it has no complex circuit,

 would not be disturbed, as long as the material selection is correct, any nature of the liquid,

pressure and temperature can be used.

Liquid dielectric properties and float: b. liquid specific gravity

is not the same as float action will vary, SG hours than water,

will float is immersed in a liquid increases. Float switch products refer to

the proportion of water (SG=1) used to be considered when choosing float liquid level

 the proportion of SG, denoted by the floating ball specifications must be over, otherwise,

the float switch unable to float high viscosity empty liquid stainless steel ball float.

PP float switch is sensing Reed switches using a magnet, so the fluid to be measured

should not be iron, or iron filings stuck float float floating above would affect the float side

of switch operation.

  Use: PP float switch designed for a variety of home appliances, humidifier, water cooler,

constant temperature and humidity, salt fog machines, printing machines, medical equipment,

 beverage machines, and compression tank liquid level detection, signal transfer, switch alarm,

can be applied to a variety of health, environmental protection, toxic, with strong acid and alkali

corrosive liquid used. Float selection Description: follow the measured temperature, pressure,

specific gravity, acid properties, choose one of the following variety of float.

Liquid dielectric properties and float:

B. liquid specific gravity is not the same as float action will vary, SG hours than water,

will float is immersed in a liquid increases.

C. the float switch products refer to the proportion of water (SG=1) used to be considered

when choosing float liquid level the proportion of SG, denoted by the floating ball specifications

 must be over, otherwise, the float switch unable to float.

D. viscosity liquids of high dries, should generally use large outer diameter stainless steel ball float.

E. float switch is sensing Reed switches using a magnet, so the fluid to be measured

should not be iron, or iron filings stuck float float floating above would affect

the float side of switch operation.

Temperature: PVDF ball maximum temperature 120 ℃,

PP float up to 80 ℃,

stainless steel 304/316 of up to 200 degrees centigrade.

Ball size: φ 26*17 ,φ 26*10,φ 26*26, φ19*16.5, φ18*8,φ 24*16.5,φ 29*12.5,

 plastic floating ball molds of various sizes.

Sticky: ball diameter should be chosen a larger proportion of small float to

overcome the surface tension of liquids.

 Where these Magnetic float water level sensor switch  use for ??

For example :

Specifications:

Nice design,.

light weight ,

easy installation,

Low cost:

wide using application,

hermetically sealed,

suit for tough environment and long life,

Quality control takes on high priority.

Development team support.

After sale services.

Working theory:

The float switch is a device used to sense the level of liquid in a tank.

When the float ball of the level switch rises or falls with the liquid. The magenetic force of magnet.

which inside of the float ball will cause the reed switch to turn on( which tell the signal out) , change to Normally Closed. When the float ball move away

from the reed switch, the reed switch will turn off, change back to Normally Open.

Where to use ?

This product can be used in liquid level control for watering machine ,

water heater , solar energy ,air conditioning , vending machine,

BSD-P,water dispenser, Humidifier, dehumidifier, fluid control ,

a pump, alarm device, moisturizing machine , bathroom utensil ,  oil tank , water tower and chemical industrial ,etc.

And widely applied in motor vehices ,industrial equipment ,

agricultural equipment and household electrical appliances in future.

Our Certificate :

Payment and Delivery way:

Before offer you the quotation, we need to know the following information:

1. Connection size

Connection size will affect the price.

And we are not sure if the connection can meet your request of flow rate;

2.Using Temperature and pressure.

We can give you the suggestions of material accordingly.

Maybe a cheaper one is enough.

3.Order Quantity.

We will give you the discount according to the quantity.

4. Sample

If you need sample, feel free to contact us below :

About us :

Shenzhen Sunwoald Electronics Co., Ltd.was established in 2006,    and is engaged in the development, production, sale and services of proximity sensor , magentic reed switches , flow switches ,flow sensors ,level float sensor , float switch , door magnetic switches, magnetic reed relays and infrared sensors.
Our products are widely applied in home appliances, automobiles, machinery, electronics, communication equipment, metallurgy, power generation, shipbuilding, petrochemical, food, waste water/water purification processing, pharmaceutical, chemical, steel, mining, oil equipment, temperature monitoring, boilers, large air-conditioning and other industries. We can meet the demands of users in different environment. Our products have many kinds of specifications, we also accept customized orders, and we are pursuing perfect in every detail, relying on sophisticated technology.

   Excellent service system helps us respond quickly to customers. Single product can not bring our customers real benefits. Our company provides one-stop service. We have a new factory, advanced processing equipment, a modern design center, efficient technical service institutions and internationally advanced testing equipment. Our company has strict quality tracking and service management systems, and have gained the ISO9000 certificate in August, 2011.

  Our company is committed to market development and promotion, till now, we have developed the North America, South America, the European Union, the Middle East, South Korea and Japan markets, our products are with excellent quality and competitive prices, they have gained good sales at home and abroad, we now the steady supplier of Unilever, Duravit, etc. famous 500 Top company in the world.

  Based on the "excellent quality, competitive price, fast delivery, perfect service, customer satisfaction" policy and making full use of advanced technology and quality management, we have confidence in the areas of sensors.

  Our company has developed many kinds of magnetic door contact switch, float level switch, water flow switch, magnetic susceptibility temperature switches, magnetic reed relays, optical sensor, the temperature sensor, and various types of foaming float, safety equipment and other products up to more than 100 types, and with the constant expansion of market at home and abroad, we will continuously introduce more and better products for different users in the future.

We are willing to work with all friends in the world and hand in hand to create a wonderful tomorrow.

Welcome to join in us. Thank you!!!

FAQ :

1. What material can be choose ?

Answer: Plastic PP, Stainless steel

2. Material is for drinking water ?

Answer: Yes, surely.

All of our materials are according RoHS,

Not –toxi , and environmental friendly.

If you would need the test report, pls contact with us.

3. The switch is normally closed or normally open?

Answer: Always normally open, most client choose this.

If you need Normally closed, is also not problem.

Before ordering , please confirm our datasheet. And start production.

 If there is no product suitable for your desire,you please also send us some data and pattern

 of your product that you desired ,

our engineer will design it and OEM for you particularly!
