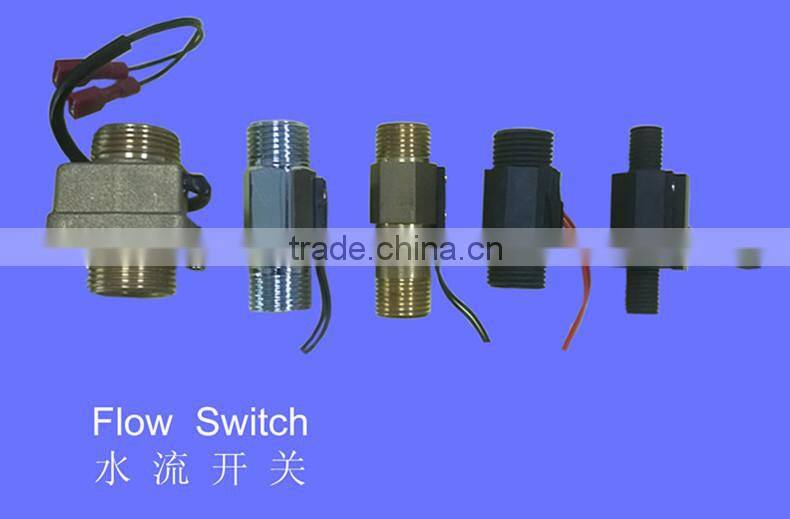

Water Automatic Flow Switch
- 5000 Piece / Pieces per Month
- SHENZHEN
- T/T L/C Credit Card
- Water Level Controller Plastic Fuel Tank Liquid Float Level Switch For Sewerage Sludge
- Intelligent Water Pump Automatic Pressure Switch Pump Controller
- China Wholesale Good Quality PP material Water Level Control floating switch for water pump
- Wholesale Good Quality Stainless Steel Water Level Control Compact SS floating switch for pump
- SNS Pneumatic HFS Series Air Source Treatment Water Flow Control Digital Pressure Switch For Water Pump
- SNS brand HFS Series Water Flow Control pump digital pressure Switch
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Shen Zhen Sunwoald | Model Number: | FS-1963 |
Media Type: | Liquid | Operating Temperature: | 0~+70°C | Flow Rate: | 5L/Min, 5L/min |
Product Description
Specifications
Water Automatic Flow Switch1.Contact form:NO (Normally open)
2.Max Contact Rating:10W
3.Body Material: Brass
4.MOQ:20PCS
FS-1963 Water Automatic Flow Switch
Electrical Characteristic:
- Contact form:NO (Normally open)
- Max Contact Rating: 10W
- Max Switch Voltage: 100V
- Max Switch Current: 0.5A
- Max Contact Resistance: 100m ohm
- Min insulation Resistance: 100M ohm
- Electrical Life: 1x107 (5Vdc, 10mA)
Technical Characteristic:
- Start-up Volume(min): 0.5L/min
- Operate Volume(Max):5L/min
- Standard Operate Pressure: 0.01~0.4Mpa
- Suffering Pressure: 1.5Mpa
- Operate Temperature: 0~+70°C
- Mounting Position: Discretional installation
- Body Material: Brass
Switch Characteristic | Physical Characteristic |
1. Contact Form: A (Normally Open) | 1. Start-up Volume(min): 0.5L/min |
2. Max Contact Rating: 10W | 2. Operate Volume(Max): 5L/min |
3. Max Switch Voltage: 100V | 3. Standard Operate Pressure: 0.01~0.4Mpa |
4. Max Switch Current: 0.5A | 4. Suffering Pressure: 1.5Mpa |
5. Max Contact Resistance: 100m ohm | 5. Operate Temperature: 0~+70°C |
6. Min Insulation Resistance: 100M ohm | 6.Mounting Position: Discretional installation |
7. Electrical Life: 1x107 (5Vdc, 10mA) | 7. Body Material: Brass |
