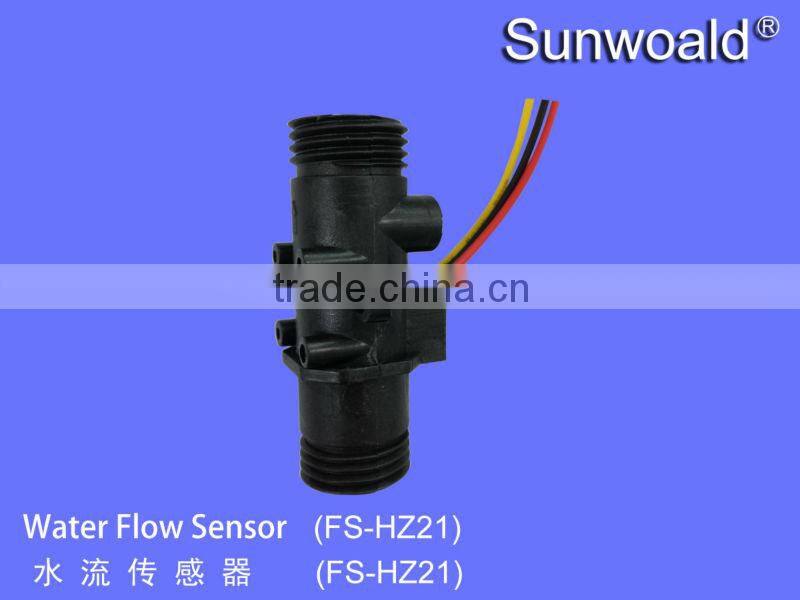

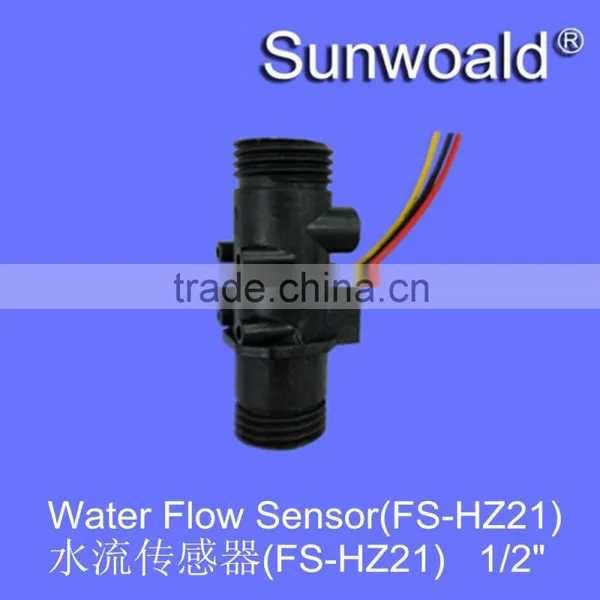

FS-HZ21 Plastic Water Flow Switch
1)Flow switch Body material : Plastic,
it is popular use in market, yes, low cost than Brass and stainless steel.
most customers prefer plastic material . which will be suitable for budget.
But if you consider metal material is more suitable for you,
then we have Brass, Brass chromium plating, Brass nickel plating, Stainless steel for choosing.
2) Screw Thread size: 1/2"
It is the Unified Standard Size Inches in Market, you don't worry when you buy can not fit in.
The thread connect Male-Male, Female-Male, Female-Female,Male -Female,
it can be according to your requirement design. Uausally is Male-Male, so you don't need to open
a new mould for production.
3) Mouting Position: Kindly have a look our datasheet . Verticall or Horizontal
when you use it , you will not worry about if you install it in worry way, because it can both work,
is very convenient and considerate.
4) Work Flowing rate: 1~30 L/min
Not allow to start up lower than the min flow rate, it may can not get the signal , so kindly
pay attention to it. Made the flow rate in this range will be perfect.
And if you would like other range , bigger or smaller, we have the size
1/4", 1/2" , 3/4" , 1" , flow sensor 1/4" 1/2", 3/4", 1", 1 1/4", 1 1/2", 1 1/3/4" , 2"
You will absolutely find the one you need.
5) Temperature: -10~+60°C Degreee Centigrade.
It can work in cold water or Hot water, not influent your working performance.
6) Electrical life: 1x10^7 (5Vdc, 10 mA)
We test and calculate is about 8 years using if without any out source hiting.
It becames old and burn-in together with the main machine.
7) OEM requirement:
* Length of Wire / cable : you could tell us how long you need ?
*Item size of Connector , you could tell us the size or Item number of it, or you have picture show us to check.
* Requirement of Terminal part: if your special need of terminal , you could freely let us know ,
* we can directly make it to meet you demand.
* the material print company logo, if you need, we can make, oil print, lable sticker or Laser...
Electrical Characteristic:
- Suffering Pressure:1.5Mpa
- Operating Termperature Operating Termperature : -10~+60°C
- Min Insluation Resistance: 100M ohm
- Percision: 1~30L/Min
- Flow Pulse: F=10Q±10% Q=L/min
- Mounting Position: Vertical or Horizontal
Technical Characteristic:
- Output Pluse Duty Cycle: 50%±10%
- Max Output Pluse Voltage: less than DC4.7V(Input Volotage DC5V)
- Min Output Pluse Voltage: more than DC0.5V(Input Volotage DC5V)
- Working Voltage: DC3-18V
- Body Material: PA66+30%Glass Black
- Application scope: Electronic Water Heater
About us :
Shenzhen Sunwoald Electronics Co., Ltd. was established in 2006, and is engaged in the development, production, sale and services of proximity switches, flow switches, door magnetic switches, magnetic reed relays and infrared sensors.
Our products are widely applied in home appliances, automobiles, machinery, electronics, communication equipment, metallurgy, power generation, shipbuilding, petrochemical, food, waste water/water purification processing, pharmaceutical, chemical, steel, mining, oil equipment, temperature monitoring, boilers, large air-conditioning and other industries. We can meet the demands of users in different environment. Our products have many kinds of specifications, we also accept customized orders, and we are pursuing perfect in every detail, relying on sophisticated technology.
Excellent service system helps us respond quickly to customers. Single product can not bring our customers real benefits. Our company provides one-stop service. We have a new factory, advanced processing equipment, a modern design center, efficient technical service institutions and internationally advanced testing equipment. Our company has strict quality tracking and service management systems, and have gained the ISO9000 certificate in August, 2011.
Our company is committed to market development and promotion, till now, we have developed the North America, South America, the European Union, the Middle East, South Korea and Japan markets, our products are with excellent quality and competitive prices, they have gained good sales at home and abroad, we now the steady supplier of Unilever, Duravit, etc. famous 500 Top company in the world.
Based on the "excellent quality, competitive price, fast delivery, perfect service, customer satisfaction" policy and making full use of advanced technology and quality management, we have confidence in the areas of sensors.
Our company has developed many kinds of magnetic door contact switch, float level switch, water flow switch, magnetic susceptibility temperature switches, magnetic reed relays, optical sensor, the temperature sensor, and various types of foaming float, safety equipment and other products up to more than 100 types, and with the constant expansion of market at home and abroad, we will continuously introduce more and better products for different users in the future.
We are willing to work with all friends in the world and hand in hand to create a wonderful tomorrow.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
