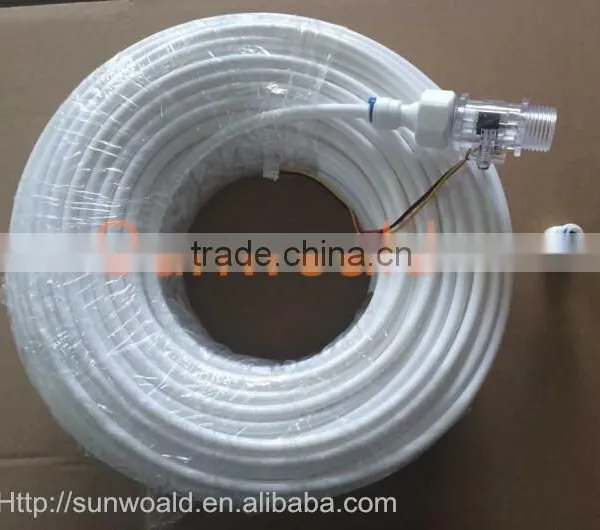

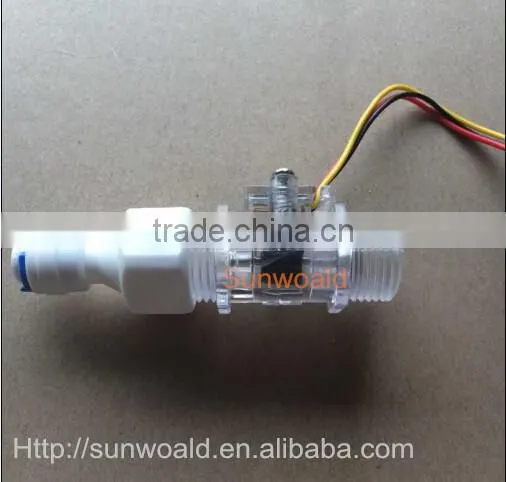

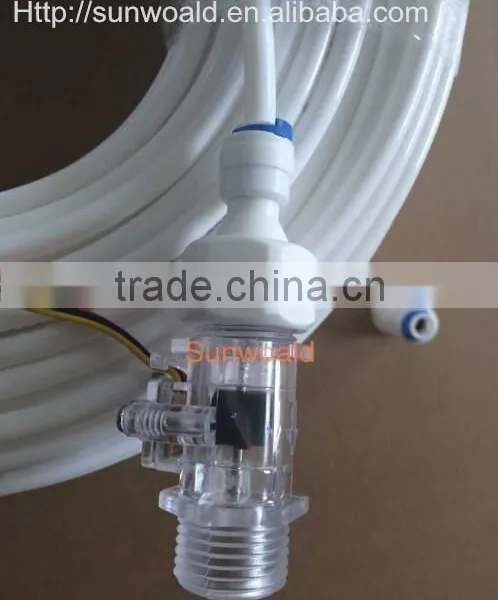

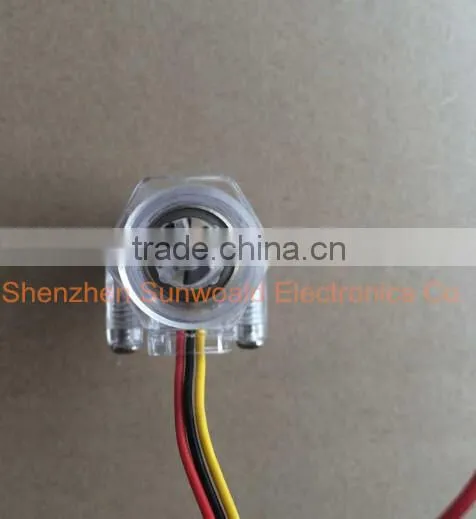

DN15 G1/2" rate 1~30L/min Hall Magnetic plastic home water flow sensor for water heater

DN15 G1/2" rate 1~30L/min Hall Magnetic plastic home water flow sensor for water heater

Electrical Characteristic:

1. Suffering Pressure: 1.5Mpa
2. Operate Temperature: -40~+150°C
3. Min insulation Resistance: 100M ohm
4. Flow rate Precision: 1~30L/min(Max)
5. Flow Pulse: F=7.5Q-3  Q=L/min
6. Mounting Position: Vertical or Horizontal

Technical Characteristic:

1. Output Pulse Duty Cycle: 50% ± 10%
2. Max Output Pulse Voltage: >DC4.7V (Input Votage:DC5V)
3. Min Output Pulse Voltage : <DC0.5V( Input Votage:DC5V)
4. Electrical Life: 1x107  (5Vdc, 10mA)
5. Body Material: PC Natural

6. Thread size : 1/4”   1/2”       3/4” 1” 1-1/4”       1-1/2” 2”


Working performance Description:

Water flow sensor by copper body and plastic forming, water flow rotor components, steady flow components and hall components. It into water dispenser, coffee machine and household appliances the water used for measuring the water flow.

When water flows through the rotor components, magnetic rotor rotating, and speed along with the flow of a linear change.

Hall element output corresponding pulse signal feedback to the controller, the size of the flow of water by controller judgment,

adjust proportional valve control of electric current.

Water flow sensor fundamentally solve the differential water-gas valve flap type high pressure and start water valve easy misoperation appear dry and shortcomings.It has reflected sensitive, long service life, action quick, safe and reliable, joins convenient traffic advantages such as the start low, deeply the general user affection.

Other size for choosing :

From size : OD6.5,  OD 9.5,  1/4" ,  1/2",  3/4",  1", 1-1/4",    1-1/2" ,  2"

Metal  Flow sensor :

From Size :  1/2" ,  3/4",  1"

Before offer you the quotation, we need to know the following information:

1.Thread Connection size and flow rate

Connection size will affect the price.

And we are not sure if the connection can meet your request of flow rate;

2.Using Temperature and pressure.

We can give you the suggestions of material accordingly.

Maybe a cheaper one is enough.

3.Order Quantity.

We will give you the discount according to the quantity.

4. Sample

If you need sample, feel free to contact us below :

About us :

Shenzhen Sunwoald Electronics Co., Ltd.was established in 2006,

 and is engaged in the development, production, sale and services of proximity sensor , magentic reed switches ,

flow switches ,flow sensors ,level float sensor , float switch , door magnetic switches, magnetic reed relays and infrared sensors.
Our products are widely applied in home appliances, automobiles, machinery, electronics, communication equipment, metallurgy, power generation, shipbuilding, petrochemical, food, waste water/water purification processing,

pharmaceutical, chemical, steel, mining, oil equipment, temperature monitoring, boilers, large air-conditioning and other industries. We can meet the demands of users in different environment. Our products have many kinds of specifications,

we also accept customized orders, and we are pursuing perfect in every detail, relying on sophisticated technology.

   Excellent service system helps us respond quickly to customers. Single product can not bring our customers real benefits. Our company provides one-stop service. We have a new factory, advanced processing equipment, a modern design center, efficient technical service institutions and internationally advanced testing equipment.

Our company has strict quality tracking and service management systems,

and have gained the ISO9000 certificate in August, 2011.

  Our company is committed to market development and promotion, till now, we have developed the North America, South America, the European Union, the Middle East, South Korea and Japan markets, our products are with excellent quality and competitive prices, they have gained good sales at home and abroad, we now the steady supplier of Unilever, Duravit, etc. famous 500 Top company in the world.

  Based on the "excellent quality, competitive price, fast delivery, perfect service, customer satisfaction" policy and making full use of advanced technology and quality management, we have confidence in the areas of sensors.

  Our company has developed many kinds of magnetic door contact switch, float level switch, water flow switch, magnetic susceptibility temperature switches, magnetic reed relays, optical sensor, the temperature sensor,

and various types of foaming float, safety equipment and other products up to more than 100 types,

and with the constant expansion of market at home and abroad,

we will continuously introduce more and better products for different users in the future.

We are willing to work with all friends in the world and hand in hand to create a wonderful tomorrow.

Welcome to join in us. Thank you!!!

1.where are these flow sensor use for ?

Answer : Tea / Coffee / Beverage / water vending Machine

2.what are there flow sensor working to in these vending machine ?

Answer : Liquid flow measurment

 3.what size of thread size connection can be choosed ?

Answer : The size we have OD6MM, OD9.8MM,

1/4” , 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”

 4.What should pay attention to ?

Answer : Never test flow sensor with compress air ,

It will damage its rotor and shaft.

 5.Application of Water flow sensor mini turbine:

Answer : Paper Industry, Beverages Industry, Food stuf Industry, Food Process, Pharmaceutical Industry, Dairy machine manufacturer, Ice-cream machine manufacturer, Boiller, Agriculture equipment, , etc.

 6.Is the material can be used in Drinking water ?

Answer: All of our products focus on the environmental , not-toxic, up to RoHS.

 7.If need sample , how can it deal with ?

Answer :Kindly contact with us and we can send in 1~2 days.
