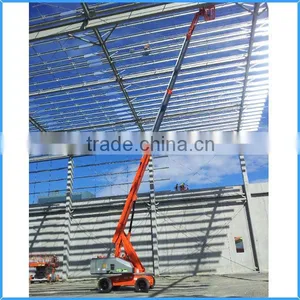

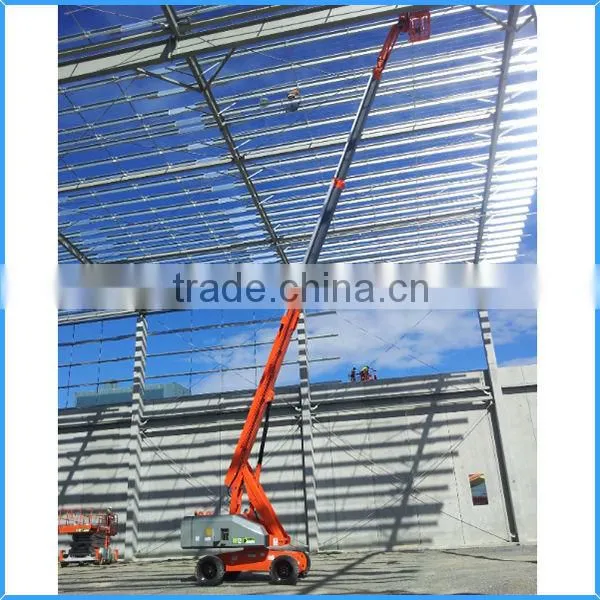

Hydraulic construction lifter applies to shipbuilding, large steel structure building, construction, civil engineering and advertising industries, etc. This lifting platform is safe and reliable. Designed with the concept of durability, solidity, and excellent performance, it can meet the need of extremely challenging operating conditions.
Technical parameters
Models | GTBZ32J | |
Measurements | Metric | US |

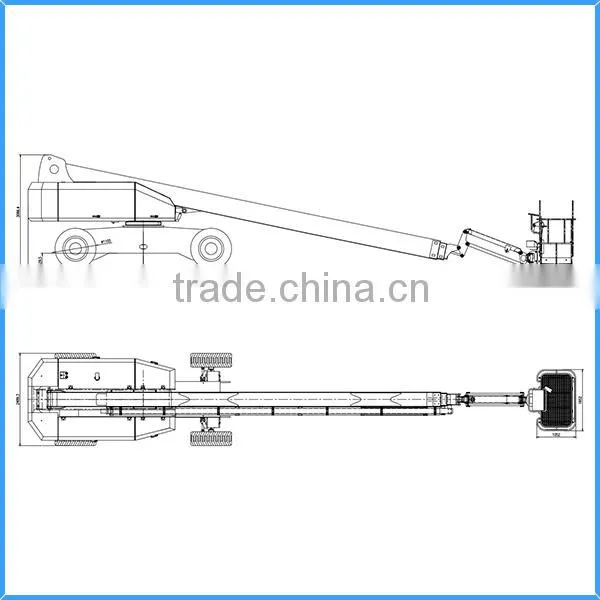

Dimensions | ||
Platform height max. | 32 m | 105 ft |
Working height max. | 34 m | 111 ft |
Horizontal reach max. | 24.4 m | 80 ft |
Length-stowed | 14.02 m | 46 ft |
Width-stowed | 2.49 m | 8 ft 2 in |
Height-stowed | 3.08 m | 10 ft 1 in |
Ground clearance | 0.43 m | 1 ft 4 in |
Wheelbase | 3.66 m | 12 ft |
Platform size (L*W*H) | 1.45 m *0.85 m *1.24 m | 4 ft 8 in*2 ft 8 in*4 ft 1 in |
Productivity | ||
Max. platform occupancy | 2 | 2 |
Lift capacity | 250 kg - unmilited | 551 lbs - unmilited |
Turntable rotation | 360° continuous | 360° continuous |
Platform rotation | 160° | 160° |
Drive speed-stowed | 0~4.4 km/h | 0~2.7 mph |
Drive speed-raised | 0~1.1 km/h | 0~0.7 mph |
Gradeability | 42% | 42% |
Turning radius-inside | 2.56 m | 8 ft 4 in |
Turning radius-outside | 5.57 m | 18 ft 3 in |
Turntable tailswing | 1.82 m | 6 ft |
Max. allowable slope | 3° | 3° |
Max. noise on normal use | 82 dB(A) | 82 dB(A) |
Drive & steer model | 4WD*4WS | 4WD*4WS |
Tire size/type | 12.00 - 20/ solid | 12.00 - 20/ solid |
Power | ||
Power source | Original Cummins/Perkins Engine | Original Cummins/Perkins Engine |
Fuel tank capacity | 200 L | 52.83 gal |
Control boltage | 12 VDC | 12 VDC |
| Power | 60 KW | 60 KW |
Weight | ||
Overall weight | 18820 kg | 41490 lbs |
Standards Compliance | CE/ISO/ADR/ARAMCO | CE/ISO/ADR/ARAMCO |
Priduction Features

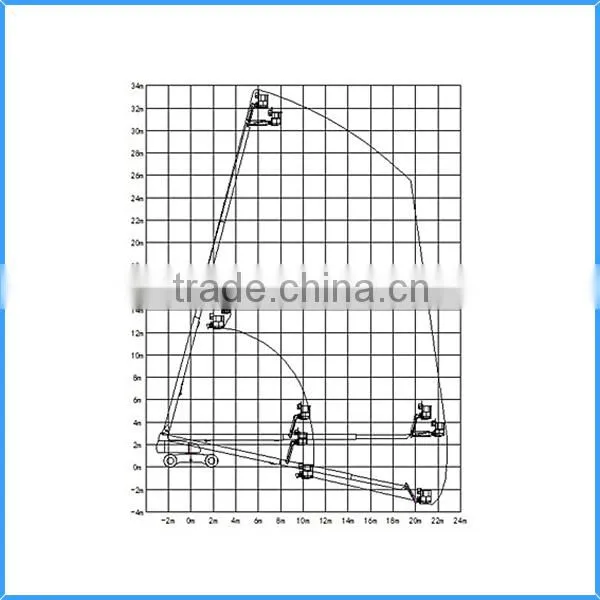

1. Wide operating range: 360° full direction operation at the height from 0~34m, with a horizontal outreach by 24.4m.
2. Large load capacity: The maximum load capacity is 250kg; the platform can hold 2 operators.
3. Powerful driving force: The engine is of famous international brand, large in power, strong grade ability.
4. Advanced technology: Self-adaption floating device, fault self-diagnosis technology, auto-leveling system, and anti-collision transducer device.
5. High reliability: The engine, key hydraulic components and electric components are all of international brand, designed in conformity with EN280, AS1418.10 and GB25849.
6. Easy maintenance: Swing-out engine, easy to maintain.
