Specifications
Max. load: 2kgfMinimum load on display:1gf
Head: standard 5pcs.
measurement accuracy : 0.2% full scale

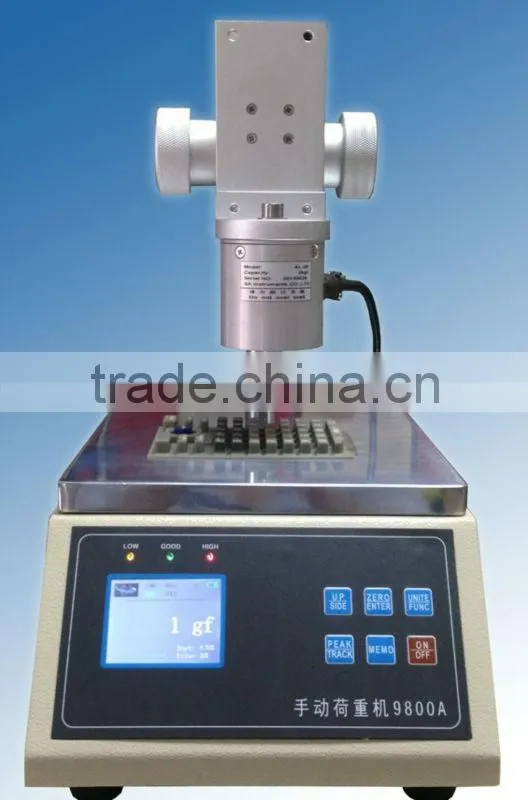

The silicone keypad instrument
Specification:
Max. load: 2kgf
Minimum load on display:1gf
Head: standard 5pcs.
measurement accuracy : 0.2% full scale
Permitted Overload: 500%
Unit: N,kgf,gf,Lb
The test sampling frequency : 2.5kHz,1kHz,250Hz,100Hz,50Hz
Size :220*200*350mm (W*D*H )
Weight: 5Kg
Power: DC9V charging source
This manual load plan for independent development and production of mg instrument, suitable for all kinds of buttons and touch switch test, using the embedded operating system image, simple and convenient operation, by manual rotation test head gently can test out a variety of shrapnel switch, silicone buttons railway, Bt1, Ck1, rPk1, rBt1 and other parameters, and the waveform graph display, is suitable for rapid quality inspection and testing of production factory, kenda capacity data storage area, it can store 1000 set of test data recently.
Machine features:
does simple manual tests, shows the test results, convenient in operation.
2.4 inch TFT true color LCD display
Embedded operating system, ARM7 platform
The test results, according to the curve is more intuitive, convenient.
High precision 16 bit AD sampling at a high speed.
Determination of project can be input value, the lower specifications, the determination results can automatically judge OK or NG.
LED display OK or NG with the external output at the same time, convenient to look at it.
Load unit show N, Ib, gf, KGF can switch freely.
1000 groups of test data store
Many kinds of test conditions and the sampling rate is set, adapt to all kinds of switch test
The built-in rechargeable battery, continuous use of more than 10 h a full charge
