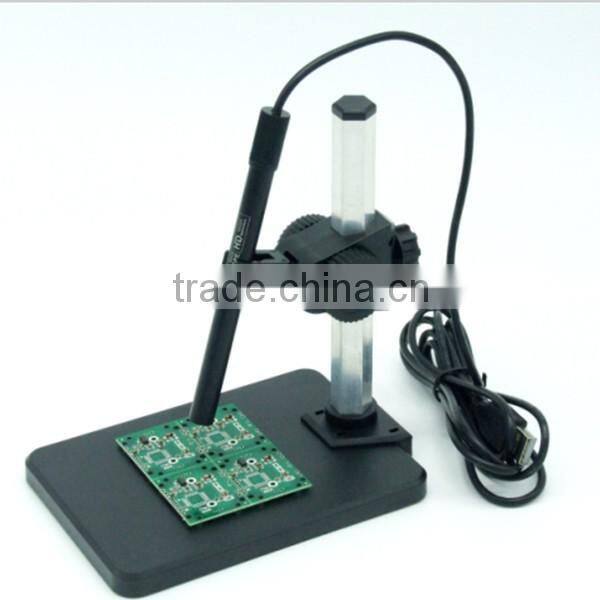

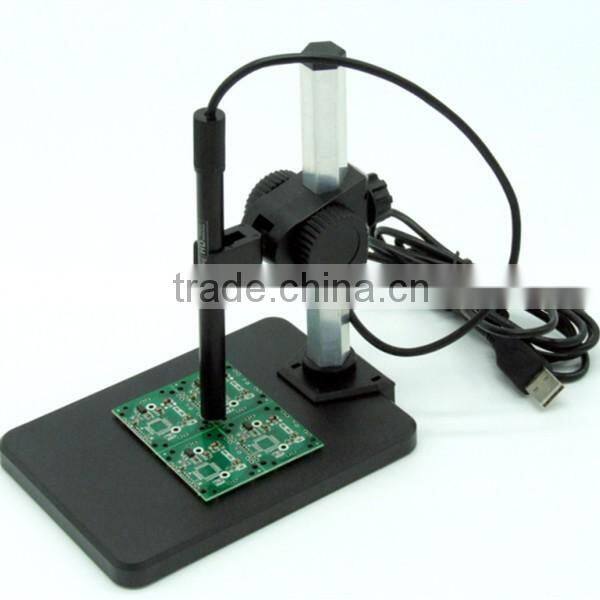

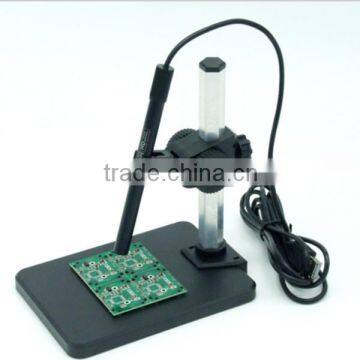

B006 Digital Microscope, USB Digital Microscope

B006 Digital Microscope, USB Digital Microscope photo-1
B006 Digital Microscope, USB Digital Microscope photo-2
B006 Digital Microscope, USB Digital Microscope photo-3
B006 Digital Microscope, USB Digital Microscope photo-4
US$ 1 - 50 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Model Number:
B006
Theory:
Other, Fluorescence Microscope, digital microscope
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Model Number B006
Theory Other, Fluorescence Microscope, digital microscope
Drawtube Other

Technical Specifications:

Image CMOS Sensor

Controller High Speed DSP (Driver Free available)

Focus Range 0mm ~ 40mm

Snap Shot Software and Hardware

Video Capture Resolution 0.3M.

Built-in 8 White-light LED and adjustable illumination ensure the

magnified images are clear and bright

Still Image Capture Resolution 640*480

Frame Rate 30 f/s under 600 LUX Brightness

Digital Zoom 5X Sequence Mode

Brightness Control Manual adjustment

Magnification Range 1X ~ 300X (Manually)500X,600X,800X,1000X

Power Supply USB Port ( 5V DC )

USB 2.0 & USB 1.1 Compatible

Operation System Windows XPVistaWin 7 32 bit and 64 bit.

Language: EnglishChinese and other language by selection

System Requirement: Pentium Computer with 700M Hz & above

20M HD Space CD ROM Driver64MB RAMDirect X VGA Card

CD disk Driver and Micro-Measurement Tool

Product dimension 112 mm ( L ) X 33 mm ( R )/10mm(L)*130mm(R)



Product net weight: 380g/250g



Available color: Matting blackUV black; and other colors.



Notes before use



1. Don’t dissemble the digital Microscope or change the interior partsit can cause damage.



2. Don’t clean the Microscope with alcohol organic solvents



3. Don’t touch the lens with your fingers.



4. Avoid outdoor use if possible.



5. Storage temperature0°C ~ 40°CHumidity:45%RH ~ 85RH%.



6. In case the product gets wetleave PC connection immediately.And do not dissemble or dry by hair dryer. Send to repair center if the digit microscope was effected by liquid or other elements.



7. Measurement Data only for reference.



Product Outlook & Standard parts



1. Digital Microscope (1pcs)



2. USB 2.0 cable



3. Metal fixed Stand (1pcs)



4. CD ROM (DriverMeasurement softwareUser Manual)

B006 Digital Microscope, USB digital MicroscopeB006 Digital Microscope, USB digital MicroscopeB006 Digital Microscope, USB digital MicroscopeB006 Digital Microscope, USB digital Microscope
