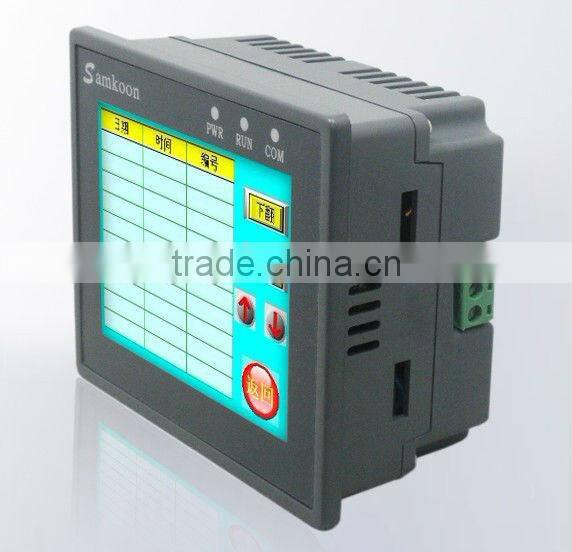

SA - 3.5A The man-machine interface ;Touch screen controller;The man-machine interface ;man-machine interface ;controller;

SA-3.5A Main technical parameters

Model

SA-3.5A

Display space size

3.5″(L:W=4:3)

Resolution

320*240

light intensity

350cd/mm

contrast

400:1

colour

262,144 color

backlight

LED

control panel

4 Line high precision resistance touch pad

communication port

COM 1(RS232,RS422,RS485) and COM 2(RS232,RS422,RS485)

USB download port USB Device

have

U disc port USB Host

No

ethernet port

No

SD

No

internal memory

128M FLASH + 128M SDRAM

CPU

32-bit 440MHz RISC

power supply

DC:24V(15%), 15W

power dissipation

8W

FCC compatibility

Fit FCC,Class A

Dielectric Withstand Voltage Test

1000V AC,1min.

CE attestation

Fit EN55022 and EN55024 standards

operating ambient temperature

-10-- +65°C

Working Relative Humidity

10~90%RH( No condensate )

shockproof

10-25Hz(X Y Z direction 2G/30 Min.)

level of protection

IP65 (Front panel)

canning material

engineering plastics  ABS+PC

overall dimension

96×81×47(mm)

Install the size of holes

93×77(mm)

weight

About 0.5 Kg

configuration software

SamDraw3.3
