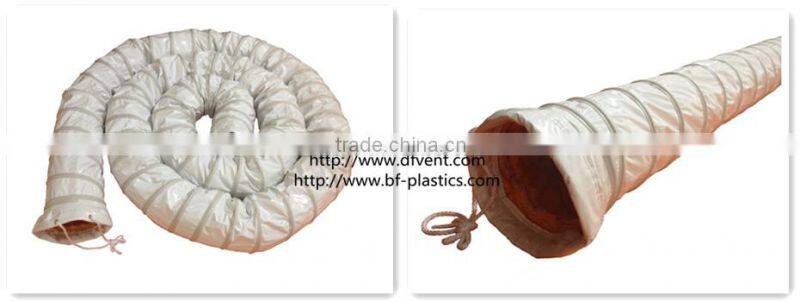

Air craft air conditioning thermal insulation duct three layers
This air conditioning thermal insulation duct is specially designed for one of our customers who wants double effect and increase the thickness in order to keep the air temperature, as well as avoid of energy loss in winter.
Material
PVC fabric and cotton insulation
Structure
Material structure
Two layers of insulated duct material, one layer of normal PVC fabric in white
Duct Structure
It is supported by spiral steel wire so that the duct can be flexible and will be stay on its own.
With anti-scuff rubber strip on the outside.
End with ropes at both ends
Features
Fire resistant and water proof, with insulation to keep the air temperature.
Material weight: 470GSM
Fabric thickness:2mm-3mm
Color: White
Temperature: -20 Celsius to 80 Celsius
Connection
Connect with rope
Size
Standard size: 100mm-1500mm, standard length 5m/10m. Custom sizes are available.
Advantage: To increase the thickness of the duct, it can effectively avoid of energy loss and keep
the temperature of the air.
Disadvantage: Production lead time will be longer.
Application
1. Connect with air conditioning equipment.

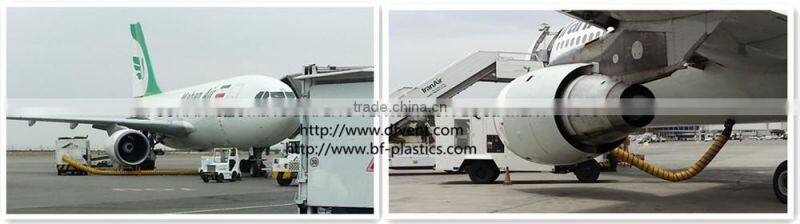

2. Used in the aircraft ground air conditioner to exhaust cool air to the cabin.

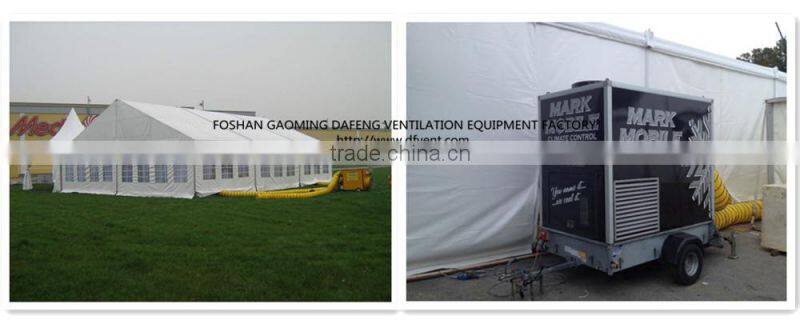

3. Exhibition center
4. Theatre
Packing: 1PC/CTN, Netural carton packing. Inside will have a plastic bag for protection
Shipping ways: By sea, by air, by express
Shipping terms: EX-Work, FOB, C&F, CIF, DDU, DDP...
1. We can offer small testing samples
2. OEM Serivice is available
3. Product warranty is 1 year
