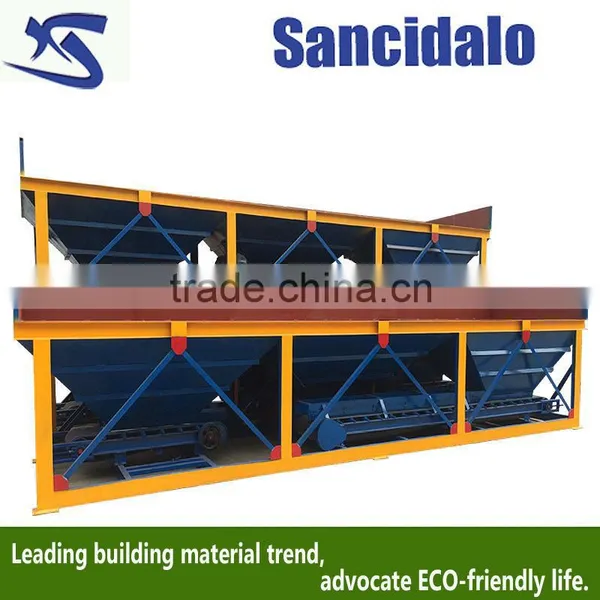

PLD1200 Cement batching plant PLD for block making machine
Our PLD1200 Concrete batching plant pld advantages:
1).Automatically finish the proportioning and measuring of sand and stone.
2).The control system is made up of controller and strong electricity part.
3).The controller has visual features like high weighing accuracy, rapid reacting speed, stable and reliable performance, strong anti-jamming ability, simple operation, etc.
4).It can control the specified proportioning times, and accumulate the total times automatically.
5).Customers can choose the numbers of proportioning bins according to different use.
Model | PL800 | PL1200 | PL1600 |
Capacity of Weighing Hopper (m3) | 0.8 | 1.2 | 1.6 |
Capacity of Storing Hopper (m3) | 2×2 | 3X3 | 3X8 |
Productivity (m3/h) | 48 | 60 | 80 |
Precision of Batching | ±2% | ±2% | ±2% |
Max Weighing Capability(kg) | 1500 | 2000 | 3000 |
Type of Aggregate Batched | 2 | 3 | 3 |
Height of Feeding (mm) | 2300 | 2400 | 3000 |
Power(kw) | 4.5 | 10.6 | 11.7 |
Overall Weight( kg) | 2250 | 3760 | 4820 |
Dimension(L*W*H) mm | 5600*1560*2760 | 8390*2000*2800 | 9500*2300*3300 |
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend. We will grow up into a tall tree in the near future for you to rely on.
