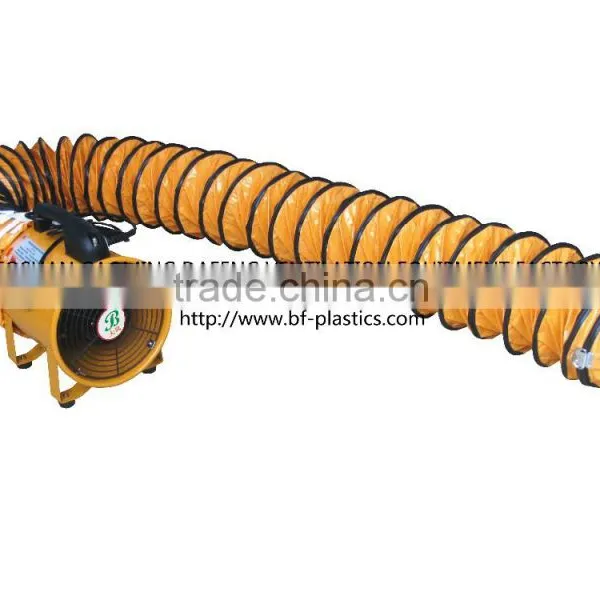

200mm x 5m PVC Orange Flexible Air Ducting and 200mm 220V/50/60Hz Axial Ventilator Fan

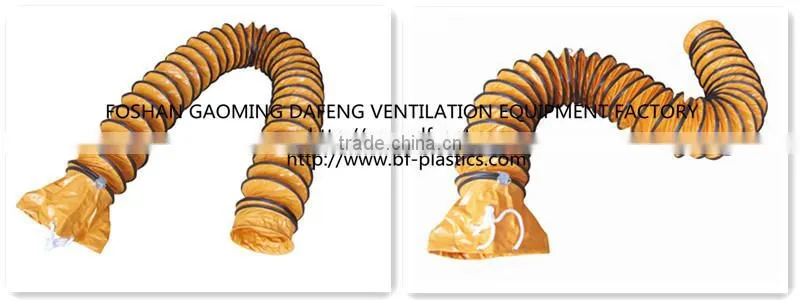

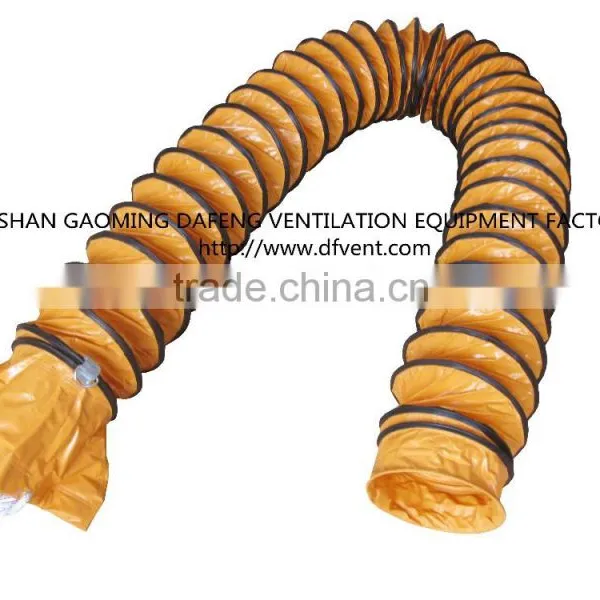

PVC Orange Flexible Air Ducting Material
It is made of water proof and fire-resistant pvc fabric
Structure
Supported by helix steel wire and black rubber strip, it is wear-and-tear proof.
With hanging hooks every 1 meter.
One end with metal ring, one end with rope
Features
It is characterized by its fire resistant, oleic acid proof.
Material thickness: 0.35-0.38mm
Material weight: 470GSM
Temperature range: -20-80°C.
Color: Yellow, orange, white, black, grey, red, green, blue
Connection
Duct to Fan: Connect with rope
Duct to Duct: Connect with rope or metal ring
Size
Standard diameter:100mm-1500mm, standard length: 5m,10m
Custom size are available upon request.
Application
- Underground cable maintaining
- Engine room ventilation
- Crypt ventilation
- Tunnel municipal conduit engineering
- Machine shipbuilding engineering
- Fire fighting rescue
-Welding

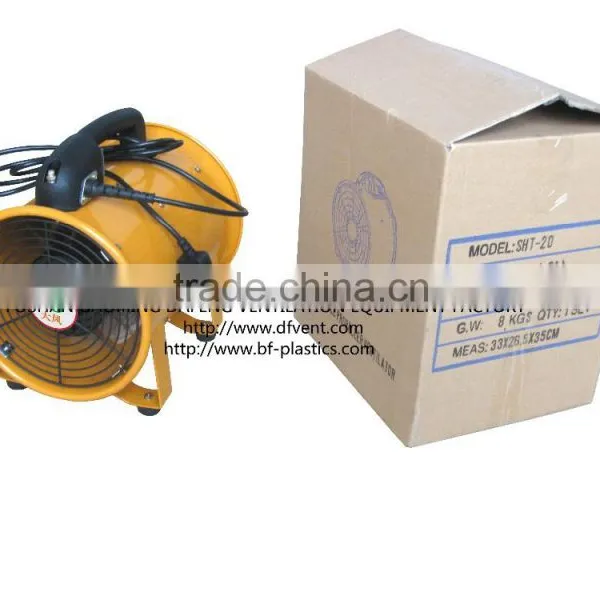

Axial Ventilator Fan Material
1. Ventilator shell: made of hot-dipped galvanized sheet which has spray painted automobile coating on its surface
2. Impeller: made of aluminum casting alloy, 7 blades.
3. Fan guard: dusting, zinc coating
4. Switch: Push button.
5. Integrated plastic handle for easy carrying.
6. Motor: It is wrap around with international standard copper wire
7. With radiating rib aluminum casting integrated motor shell.
Features
Strong air pressure, high rotational speed and air volume, strong suction, reasonable structure and superior performance
Available sizes:
1. 200mm, 250mm, 300mm, 350mm,light weight with handle, have a integrated switch
2. 400mm, 450mm, 500mm, 600mm, can equipped with a stand in order to adjust the blowing angle. There are handles on both sides for easy carry.
Voltage: 36V, 110V,220V,380V,440V.
Frequency: 50Hz, 60Hz, 50/60Hz universal type
Plug: European, American, British, Japanese, etc.
Application
1. Exhaust and supply flesh air in remote or deep operating zone, confined space construction and other bad air environment.
2. Exhausting welding waste gas, smoke, dust, the smell of paint during shipbuilding and maintenance.
3. Field of machinery, chemical industry, plant warehouse, underground sinking and driving engineering
1. We can offer small testing samples
2. OEM Serivice is available
3. Product warranty is 1 year
