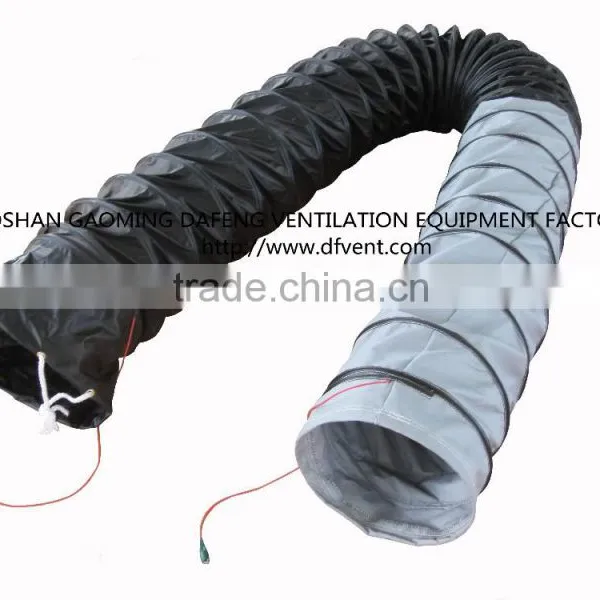

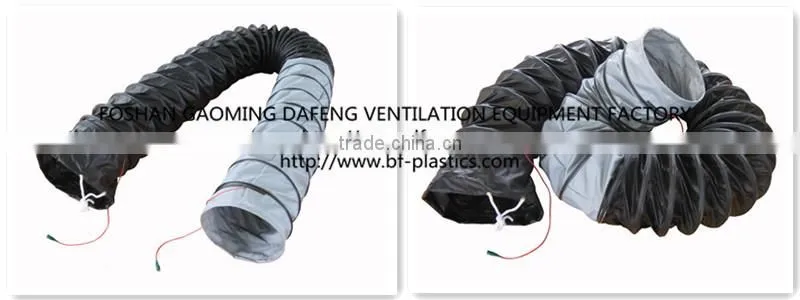

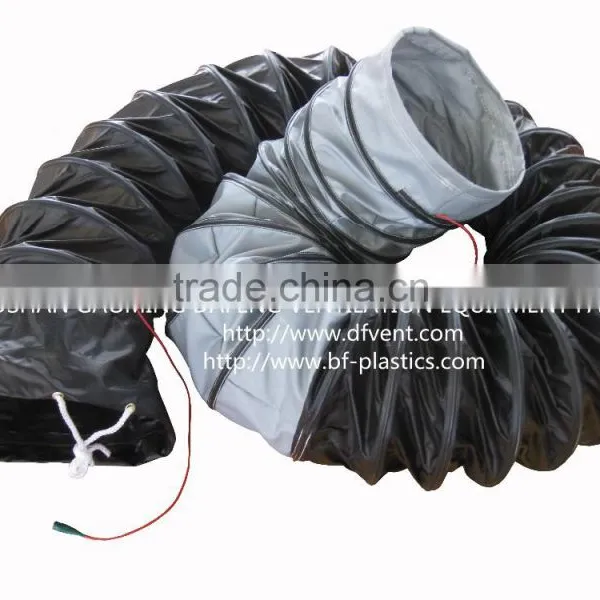

Explosion proof heat resistant flexible blower duct with grouding clips
Material
fire retardant and anti static black PVC, combine with grey heat resistant fiber glass material
Features
Material weight: 470 GSM
Material thickness: 0.35 - 0.45mm
Fire resistant, water proof, UV resistant, anti static, explosive proof
Color: Black only for explosion proof material, grey color for heat resistant material
The entire duct is conductive, surface resistant is 2×105
Structure
Supported by helix steel wire
the steel wire is wrapped by black rubber strip, which is wear-and-tear proof.
One end with rope, one end with metal ring
With conductive clips on both ends
Wire pitch: 15cm. Can endure at least 3000 Pa.
Connection
Connect each single duct by rope or metal ring.
Size
Size: 300mm x 5m
Standard diameter:100mm-1500mm
Standard length: 5m,10m.
Custom size are available upon request.
Application
Matching with the explosive proof ventilator, the explosive proof flexible ducts are widely used for ventilating in the inflammable and explosive spaces such as: petrol-chemical industry, medicament, oil carrier and oil depot. In order to exhaust the chemical odour.
Packing: 1PC/CTN, Netural carton packing. Inside will have a plastic bag for protection
Shipping ways: By sea, by air, by express
Shipping terms: EX-Work, FOB, C&F, CIF, DDU, DDP...
1. We can offer small testing samples
2. OEM Serivice is available
3. Product warranty is 1 year
