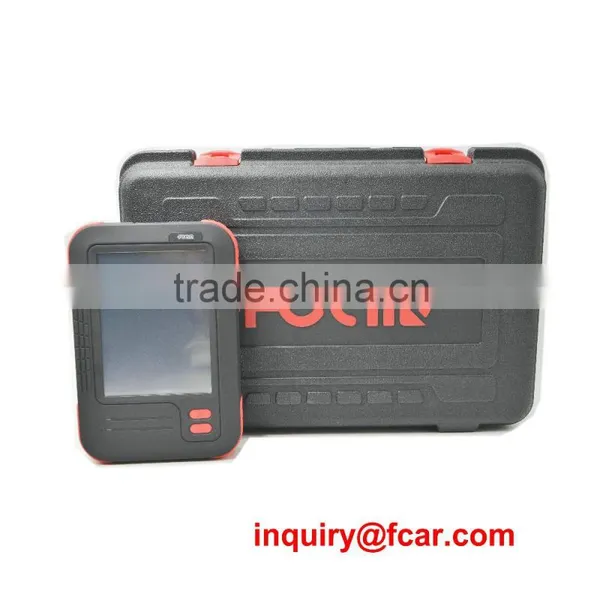

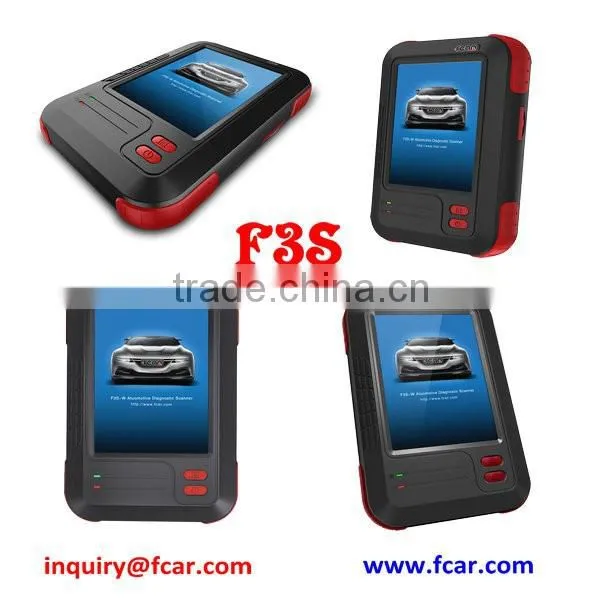

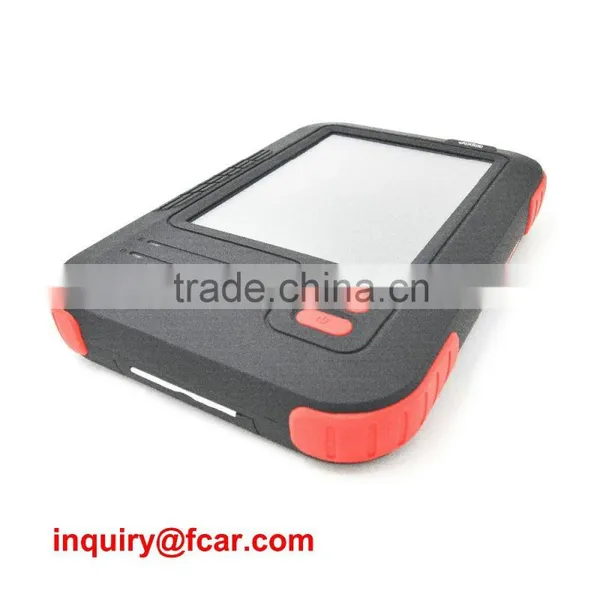

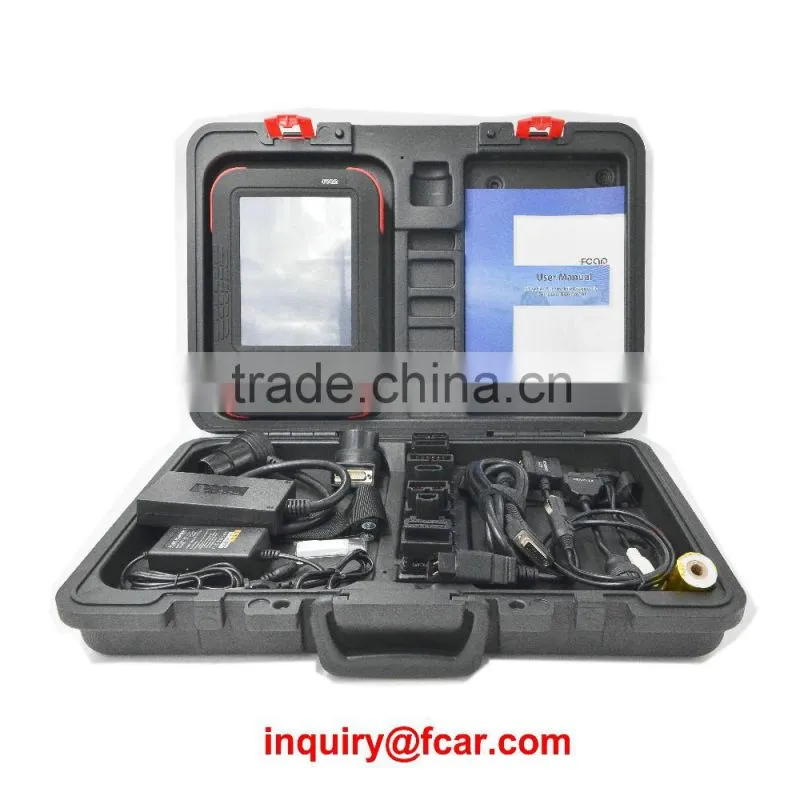

F3S-W Universal Car Diagnostic Tool
Product Functions:
Testing the global mainstream gasoline + 12V diesel vehicles, reaching to the same effect with the OEM scanners. Built-in high and low speed CAN-BUS,one diagnostic connector can test all the CAN-BUS vehicles. Support almost all OBD-II protocols.
Vehicles Supported |
European/ American Brands: |
BMW, Benz, Rover, Volvo, Opel, Seat, Sprinter, Alfa, SAAB, MG, Peugeot, Porsche, VW, Audi, Chrysler, Ford, GM, Citroen, Skoda, Renault, Fiat... |
Japanese and Korean Brands: |
Mitsubishi, Toyota, Nissan, Isuzu, Lexus, Honda, Subaru, Mazda, Hyundai, KIA, Daewoo, Ssangyong... |
|
Chinese Brands: |
Shanghai Volkswagen, Shanghai GM, FAW-Volkswagen, FAW Pentium, Tianjin FAW, Dongfeng Citroen, Guangzhou Honda, Guangzhou Toyota, Zhengzhou Nissan,Red Flag, BYD, JAC, Brilliance, Geely, Chery , Rong Wei, Liebao, Hafei, Great Wall, Lifan, Changan, Changhe, JMC, Young-Man... |
|
Support system: |
Engine, ABS, Transmission, Airbag, Body Electronic equipment, Smart Key System, Anti-theft System, Power Steering, Cruise System, Instrument System, Gateway, Air-Conditioning System, Sound System, Light System... |
|
Support Function: |
Readout DTC, Readout Engine Model, Readout Computer Edition Information, Readout QR code, Readout System parameter number, Readout Data Stream, Clear DTC, Read-in QR Code, Component test, Cut-off Cylinder Test, Compression Test, Injector Test, Maintenance Help, Study on line and so on. |
|
Host Parameters | ||
| 01 | CPU |
SAMSUNG ARM2410A,203MHZ |
02 |
SD card interface |
insert/ pull out high-capacity SD card |
03 |
Work Power |
DC9-28v/3A |
04 |
Port |
DB15 |
05 |
Memory |
8G |
06 |
Display |
8-inch TFT LCD touch display true color |
07 |
Resolution |
800X600, 16 bit true color color 65535 |
08 |
Print model |
58mm thermo printer |
09 |
External Dimension |
290.7×207.3×45mm |
10 |
Storage temperature |
-30~45°C |
11 |
Operating Temperature |
-10~45°C |
12 |
Humidity |
<90°C |
