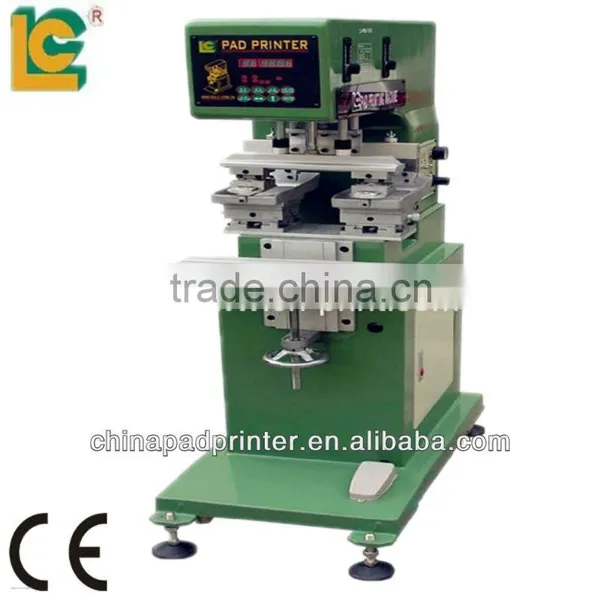

Single Color Double Head Sealed Cup Pad Printer LC-PM1-100/2T

Single Color Double Head Sealed Cup Pad Printer LC-PM1-100/2T photo-1
US$ 1,800 - 2,120 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Gravure
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN PORT CHINA
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Gravure
Place of Origin Guangdong, China
Brand Name LC
Model Number LC-PM1-100/2T
Usage Other, printer machiney
Automatic Grade Semi-Automatic
Voltage AC110V/220V
Gross Power 35W
Dimensions(L*W*H) 1300*480*1370mm
Weight 135kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Sealed Cup pad printer
pad printing plastic products, such as bottle,golf ball,metals products
2.print large size



Product name

Single Color Double head Sealed Cup pad printer

Model No

LC-PM1-100/2T

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

The pneumatic double-head Sealed Cup pad printer could be acted as two pieces of single colors pad printer, it is featured by the higher working capacity. It is also suitable for those products with high printing size requirements. The ink tray and rubber pads could be changed for multi color's printing. Widely used for logo printing on surface such as electronic products, plastic shell, hardware products, stationary, gift set, artistic products, toys etc.

Advantage

1. Ontrolled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.

Parameter

Sealed Cup pad printer

1. Model No: LC-PM1-100/2T
2. Operation: Pneumatic
3. Colors: 1
4. Plate area: 100*200 mm
5. Sealed ink cup diameter: 90 mm
6. Max Printing area: 80*90mm
7. Max printing station: 2PCS
8. Max printing speed: 2000PCS/H
9. Wattage: 220V/ 50Hz 110V/60Hz
10. Air pressure: 0.4-0.6Mpa
11. Machine size: 860x460x1400mm(LxWxH)
12. Machine weight: 100KG

Usage

Single Double head Sealed Cup pad printer

Widely used for logo printing on surface such as electronic products, plastic shell, hardware products, stationary, gift set, artistic products, toys etc.

Free fittings

1. Two PCS steel plate
2. Two PCS rubber pad
3. A suit tool
4. English operating instruction

Shipping way

By sea, by air, by express

Delivery time

Within 5 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)



About us

1. One of three famous brand in China.our key products include , screen printer, hot stamping machine and UV curing machine.

2. We specialize in the field for 20 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.

 3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.
