Cylinder Bottle Screen Printing Machine Serigrafiche LC-PA-1200E

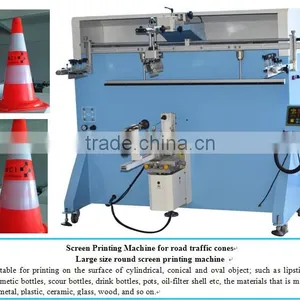

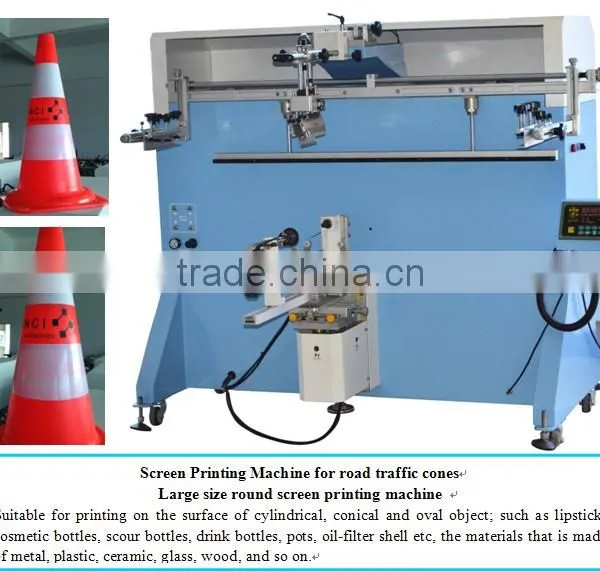

Cylinder Bottle Screen Printing Machine Serigrafiche LC-PA-1200E photo-1
US$ 6,300 - 6,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
LC
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Guangdong, China
Brand Name LC
Model Number LC-PA-1200E
Usage Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Other, Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, screen printer
Automatic Grade Other, screen printer
Voltage AC110V/220V
Gross Power 35W
Dimensions(L*W*H) 1720*1600*1650mm
Weight 280kg
Certification CE
Warranty One yaer
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1,suitable to print on flat,round,oval shaped products
2 automatic screen printing machine
3.rotary screen printing machine


Product Description



Product name

Plane/Cylinder bottle Screen printer serigrafiche LC-PA-1200E

Model No

 LC-PA-1200E

Certificate



CE, ISO-9001-2000

Brand Name

LC,CHINA

Description

automatic screen printing machine Suitable for precise printing substrates in Cylindrical, Conical and Oval forms which with smooth curve surface and made of various materials such as metal, plastic, ceramic, glass, wood etc...Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles, pots, oil-filter shell etc...
Our cylinder screen printer is multifunctional screen printing machine. They are suitable to print on flat, round, oval shaped products.  Cylinder screen printers can print one color at one time. Once replacing frame and ink, they can print 2, 3^colors.

Advantage



1. Fully automatic control by microcomputer & easy handling
2. Four figures automatic counter
3. Round printing function (taper section)
4. Automaticoil scrabbing, oil return and lifting table
5. Adujustability of routs and speeds
6. Self-poise scraper to balance printing pressure
7. Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)
8. High precision and easy & quick adjustability

Parameter

1. Model number: LC-PA-1200E
2. Product appearance: Round /oblate /flat
3. (Round)Max. Printing diameter: Φ375mm
4. (Round)Max printing arc length: 570mm
5: (oblate)Max printing diameter: 720mm
6.(flat) Max printing area: 420* 1170mm
7. Printing Speed: 1100PC/H
8. Machine Weight:230kg
6. Air pressure: 0.5Mpa
7. Voltage power: 220V/ 50HZ or 110V/60HZ

Usage

 screen print machine Application area detergent bottles, Pens, beverage bottles, cups, cans, , Cosmetics package box, lipstick tube.

Free fittings



1Set/Sets

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

WOODEN CASE

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)

Cylinder bottle screen printing machine serigrafiche LC-PA-1200ECylinder bottle screen printing machine serigrafiche LC-PA-1200ECylinder bottle screen printing machine serigrafiche LC-PA-1200E


Plane/Cylinder bottle Screen printer serigrafiche LC-PA-1200E
Packaging & Shipping
  Cylinder bottle screen printing machine serigrafiche LC-PA-1200ECylinder bottle screen printing machine serigrafiche LC-PA-1200E

Our Services
Plane/Cylinder bottle Screen printer serigrafiche LC-PA-1200E Cylinder bottle screen printing machine serigrafiche LC-PA-1200ECylinder bottle screen printing machine serigrafiche LC-PA-1200E
609
Company Information

Plane/Cylinder bottle Screen printer serigrafiche LC-PA-1200E

1. One of three famous brand in China.our key products include pad printer, screen printer, hot stamping machine and UV curing machine.



2. We specialize in the field for 20 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.



3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.



Cylinder bottle screen printing machine serigrafiche LC-PA-1200ECylinder bottle screen printing machine serigrafiche LC-PA-1200ECylinder bottle screen printing machine serigrafiche LC-PA-1200ECylinder bottle screen printing machine serigrafiche LC-PA-1200E


FAQ
Plane/Cylinder bottle Screen printer serigrafiche LC-PA-1200E
 Price Terms -- FOB SHENZHEN CHINA
Cylinder bottle screen printing machine serigrafiche LC-PA-1200E
