Home > Packaging & Printing > Printing Machinery > Pad Printer > Double Head Sealed Cup Single Pad Printer Automatic Pad Printing Machine LC-PM1-100/2T

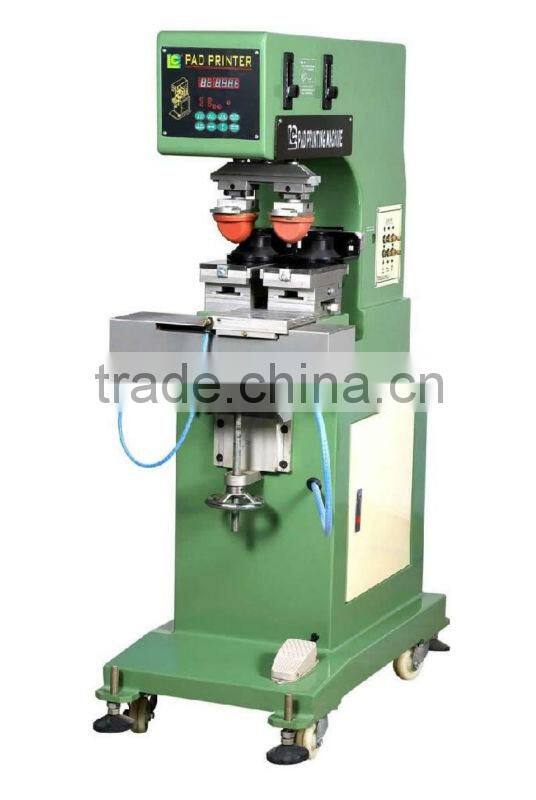

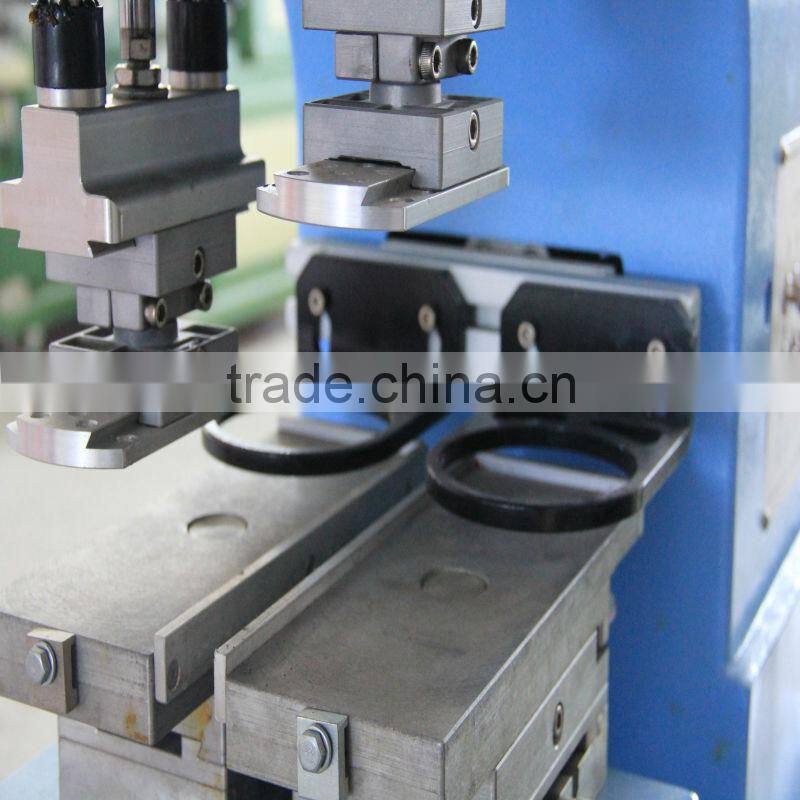

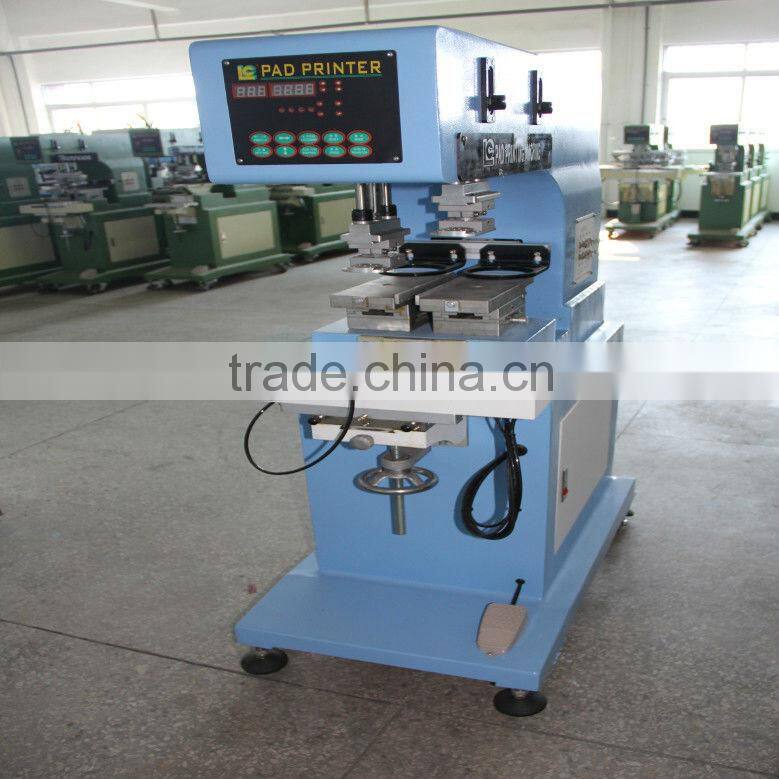

Double Head Sealed Cup Single Pad Printer Automatic Pad Printing Machine LC-PM1-100/2T

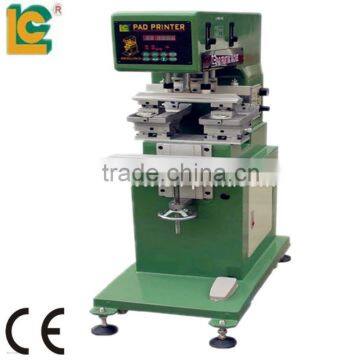

Double Head Sealed Cup Single Pad Printer Automatic Pad Printing Machine LC-PM1-100/2T photo-1

Double Head Sealed Cup Single Pad Printer Automatic Pad Printing Machine LC-PM1-100/2T photo-2

US$ 1,000 - 2,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Plate Type:

Gravure

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Luen Cheong Printing Equipment Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Plate Type Gravure

Place of Origin Guangdong, China

Brand Name LC

Model Number LC-PM1-100/2T

Usage Label Printer

Automatic Grade Semi-Automatic

Voltage 220V

Gross Power 50W

Dimensions(L*W*H) 810*470*1370mm

Weight 130KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

The pneumatic double-head pad printer could be acted as two pieces of single colors pad printer, it is featured by the higher working capacity. It is also suitable for those products with high printing size requirements. The ink tray and rubber pads could be changed for multi color's printing. Widely used for logo printing on surface such as electronic products, plastic shell, hardware products, stationary, gift set, artistic products, toys etc.

1. Ontrolled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.

Specifications
1. Model No: LC-PM1-100/2T
2. Operation: Pneumatic
3. Colors: 1
4. Plate area: 100*200 mm
5. Sealed ink cup diameter: 90 mm
6. Max Printing area: 80*90mm
7. Max printing station: 2PCS
8. Max printing speed: 2000PCS/H
9. Wattage: 220V/ 50Hz 110V/60Hz
10. Air pressure: 0.4-0.6Mpa
11. Machine size: 860x460x1400mm(LxWxH)
12. Machine weight: 100KG

1. Model No: LC-PM1-150/2T
2. Operation: Pneumatic
3. Colors: 1
4. Plate area: 100*250 mm
5. Max Printing area: 80*135mm
6. Sealed ink cup diameter: 90 mm
7. Max printing station: 2PCS
8. Max printing speed: 2000PCS/H
9. Wattage: 220V/ 50Hz 110V/60Hz
10. Air pressure: 0.4-0.6Mpa
11. Machine size: 860x460x1400mm(LxWxH)
12. Machine weight: 130KG

1. Model No: LC-PM1-200/2T
2. Operation: Pneumatic
3. Colors: 1
4. Plate area: 100*300 mm
5. Sealed ink cup diameter: 90 mm
6. Max Printing area: 90*160mm
7. Max printing station: 2PCS
8. Max printing speed: 2000PCS/H
9. Wattage: 220V/ 50Hz 110V/60Hz 9. Air pressure: 0.4-0.6Mpa
10. Machine size: 860x460x1400mm(LxWxH)
11. Machine weight: 150KG

Free Fitting:
1. Two PCS steel plate
2. Two PCS rubber pad
3. A suit tool
4. English operating instruction

Application area -----toys, pens, keyboard, plastic products, laber, hardwa

Price Terms	FOB SHENZHEN PORT CHINA
Packing	WOODEN CASE
Lead Time	5 DAYS AFTER PAYMENT
Standards Certificate	CE
Volum	1.6
Application area	TOY,artware,hardware,jewelry,
Gross Weight	160KG
Main Parts	CYLINDER MADE BY GERMANY
Free Fittings	1. Two Silicone Pads,2. Two stel plates, 3.tooling 4.operat manual
de	8443198000

About us

1. One of three famous brand in China.our key products include , screen printer, hot stamping machine and UV curing machine.

2. We specialize in the field for 20 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.

3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.

Packaging & Shipping

the machine is packed in wood case,shipped by sea or air

Our Services

In order to protect the rights and interests of each user, each printing machine has to undergo a rigorous inspection and testing in factory before sold out as to deliver the most comprehensive after-sales service. Our company's goal: First-class quality, first-class technology, provide customers with first-class products and services.
