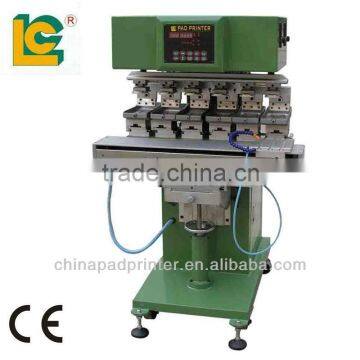

SIX-Colour Shuttleing Pad Printing Machine ,LC-PM6-150

Specifications

1.Speed of every single pneumatic organ is adjustable.
2.6-colour, 5 colour, 4-color, 2-color and 1-color printing

6-Colour Pad Printing Machine with Shuttle
1. Controlled by microprocessor, easy operation, running stably and accurately.
2.4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.
10.6-colour, 5 colour, 4-color, 2-color and 1-color printing

Model No. LC-PM6-150
Max. Plate size: 100*; 150mm;
Max. Worktable area: 170*; 200mm;
Max. Printing area: 80*; 130mm;
Max. Printing speed: 800pcs/hr;
Air consumption: 169Litre/min(6bar);
Colour Number: 6;
Shuttle stroke: 125mm.





free match :
4 pcs steel pad plates.



4 pcs rubber pad



English operating instruction

Payment Terms------------ T/T or LC
Packing ---------------------wooden crate
Lead Time ------------------5 days after confirm Payment
SKU --------------------------6 SETS
Standards Certificate ----CE
Main Parts ------------------FESTO cylinder made by Germany
Application area -----------toys, pens, keyboard, plastic products, laber, hardware
