new products desktop mini single color pad printing machine LC-TP1-150 for toy, cap, gift for sale
new products desktop mini single color pad printing machine LC-TP1-150 for toy, cap, gift for sale

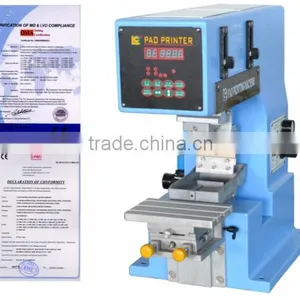

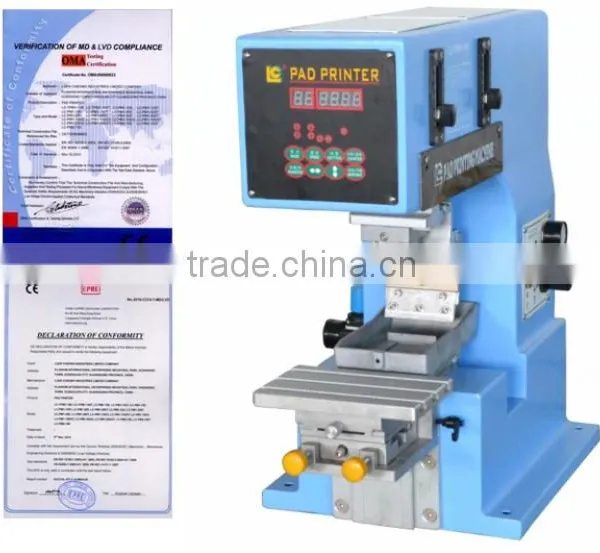

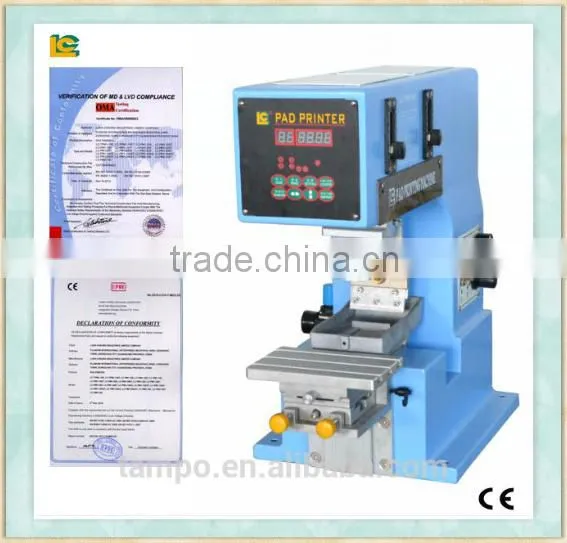

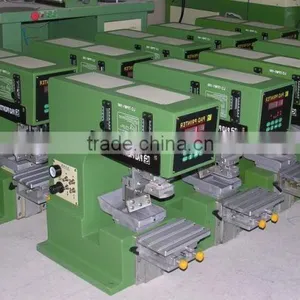

Desktop style pad printer Model is LC-TP1-100, it is easy operateing and samll volume. Cheaper and Widely used in the field of pens, cosmetic caps, toies plastic parts, Gifts, office supplies, hardware objects.
Advantages of pad printing machine:
1. Ontrolled by microprocessor, easy operation, running stably and accurately. 2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. with the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. with super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.
Specifications of pad printing machine:
1. Model No. LC-TP1-100
2. Operation: Pneumatic
3. Printing Colors: 1
4. Plate area: 100*100
5. Max printing area: 90*90mm
6. Max printing speed: 1700PCS/H
7. Wattage: 220V/ 50Hz
8. Air pressure: 0.4-0.6Mpa
9. Machine size; 650*400*1300mm(LxWxH)
10. Machine weight: 65kg
11. Machine color: Green
12. Model No. LC-TP1-150
13. Operation: Pneumatic
14. Printing Colors: 1
15. Plate area: 100*150
16. Max printing area: 90*140mm
17. Max printing speed: 1700PCS/H
18. Wattage: 220V/ 50Hz
19. Air pressure: 0.4-0.6Mpa
20. Machine size; 850*400*1300mm(LxWxH)
21. Machine weight: 68kg
22. Cubic Meter:0.282cmb
23. Packing : plywood case

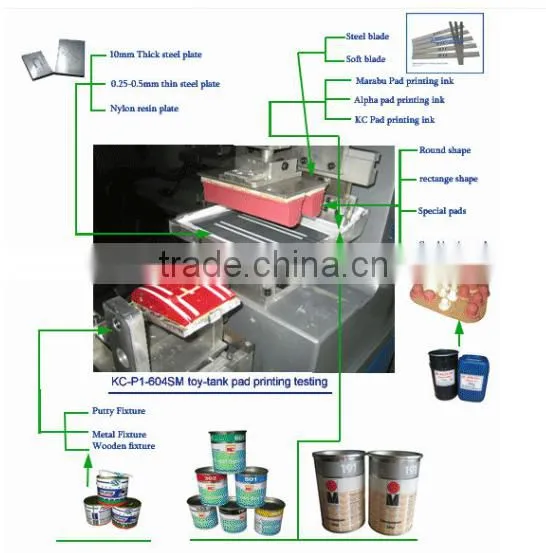

Free Fitting od pad printing machine:
1. One PCS steel plate
2. Two PCS rubber pad
3. A suit tool
4. English operating instruction
16 hours online services
8:00 am--12:00pm (Monday- Saturday)
24 hours phone call services (Monday- Sunday)
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.

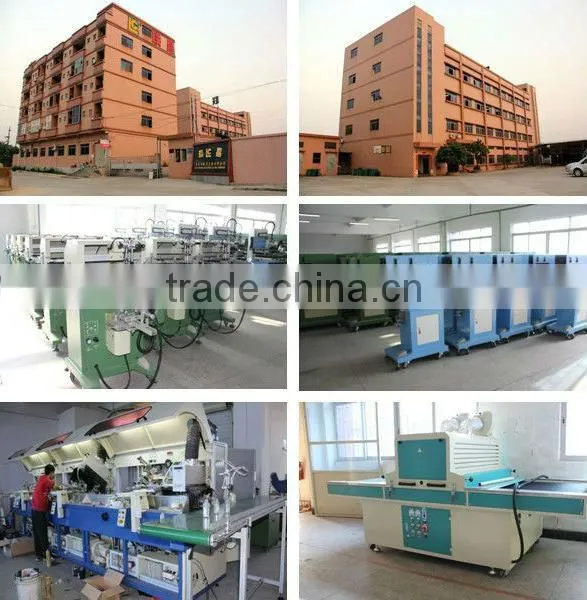

Luen Cheong Printing Equipment Group Ltd. established in 1991,which is professional in develop, manufacture and sales the Screen printer, Pad printer, Hot stamping machine, Heat transfer machine, Peripheral Equipment &Accessory. With the long time experience in manufacture special printing equipment, we are focus on making the good quality printing equipment and whole solution service for domestic and aboard.
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best product and service for our customers
1.Keep the machine cleaning
2. Refence the outside drawing of work piece to make holder and model.
3. Washing the part of slide weekly, and feeding the lubricating oil.
4. Deal with the water in the filter regual, for protect the pneumatic system transfer.
5.the size of Pad Plate must fit for the size of Inkwell

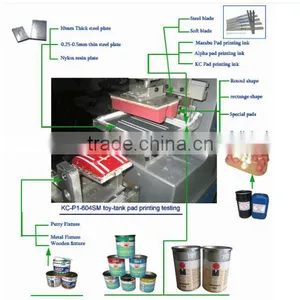

6. Pay attention to the choice of pad:
The hardness of pad includes the “soft”, “medium” and “hard”. If prints fine design, you should choose the hard pad, while prints on accidented surface, use the soft pad, furthermore, the volume and shape of pad should be similar with size of the design and surface shape of the work piece.
7. Usage of ink:
According to different kinds of work pieces, such as plastic, glass or metal, etc. you should choose different inks, and the ink should be stirred before pouring into the ink cup.
8. When operation of the machine is paused, you should let the ink scraping system go on working in order to prevent the ink from air-drying.
9. During printing, you should infuse thinner into the inkwell according to different air-dry speed of the inks in order to keep the proper viscosity of the ink. After infusing the thinner, stir the ink immediately. If the pad is stained, clean it with the cleanser.
10. When the printing finished, need to wash the steel plate and pad.
11.Infuse lubricant once per week
