Feature

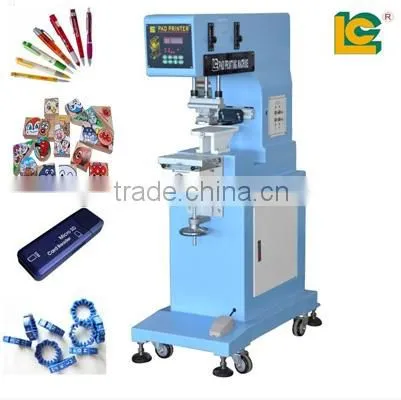

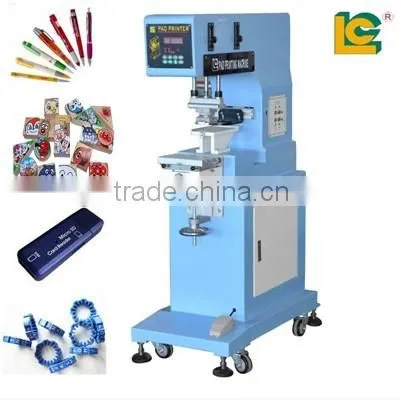

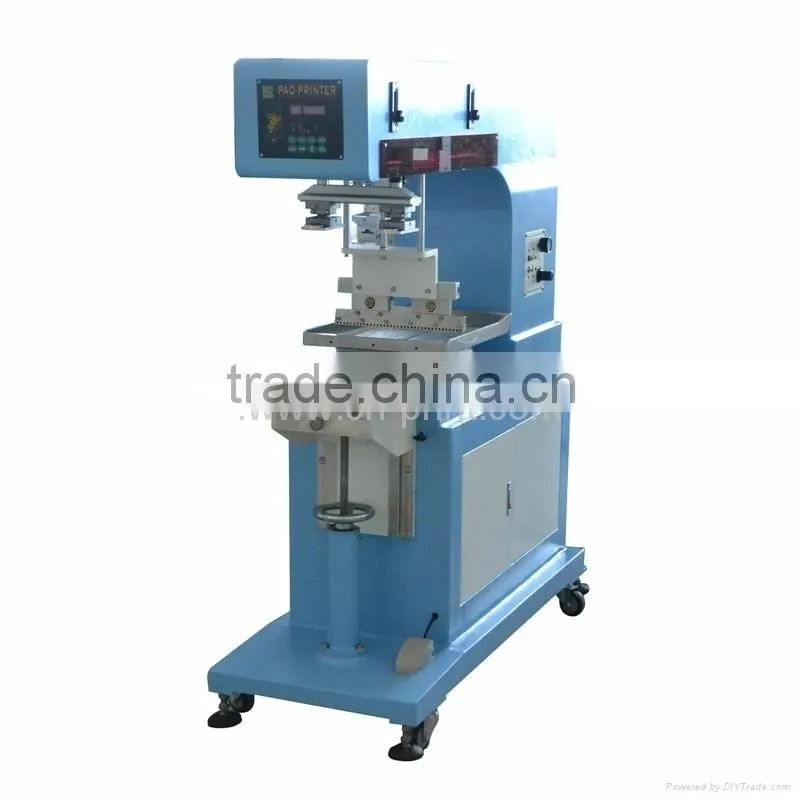

LC-PM1-100 Single color pad printer it is standard model in pad printing line. Widely use for Special shape parts. Such as keyboard, mouse, toies, pens, Cosmetics package box, hardware
Parts.
1. Ontrolled by microprocessor, easy operation, running stably and accurately.
2.4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.

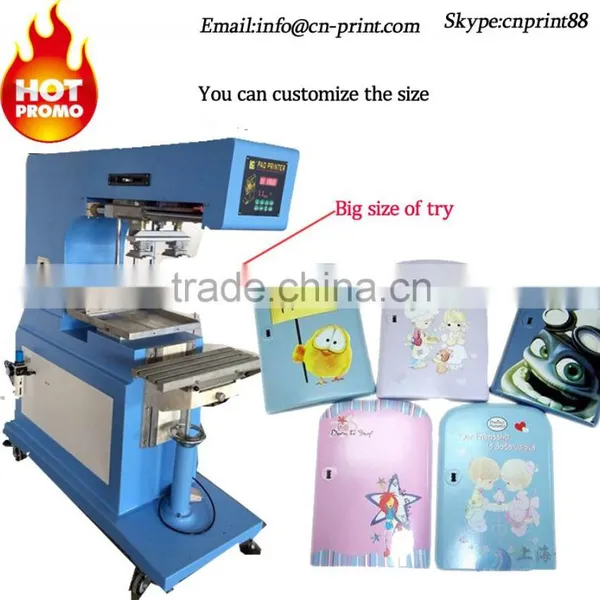

8. With super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable
1. Model NO: LC-PM1-100
2. Operation: Pneumatic
3. Printing Colors: 1
4. Plate area: 100*100mm
5. Printing area; 85*85mm
6. Jigs: 1
7. Max printing speed: 2000PCS/H
8. Wattage: 220V/ 50HZ:
9. Air pressure: 0.4-0.6Mpa
10. Machine size(LxWxH): 830x530x1400mm
11. Machine weight: 110kg
Quality Control
we will do a test before delivery, for instance, let the machine work without products so that checkout the performance,ensuring the quality.
We are top in manufacturing:
pad printer ,screen printer , hot foil stamping machine heat transfer machine and UV Curing machine for 25 years.

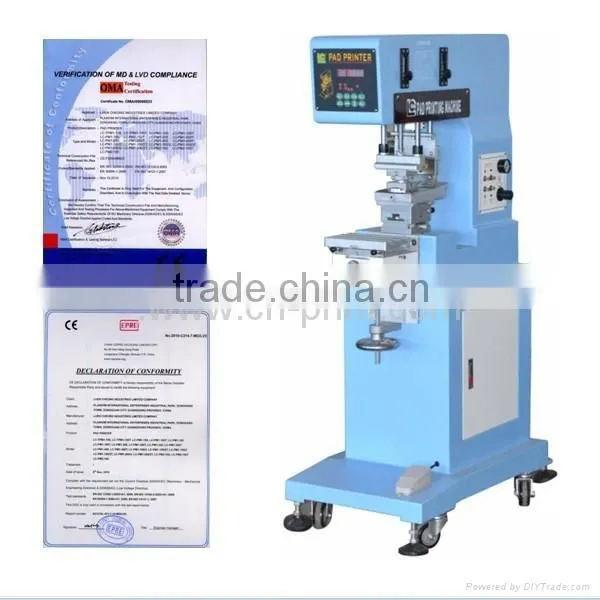

1.All printing equipments had passed CE standard
2. Our main parts are imported. There are professional QA team and after- sale engineers team in our factory.
3.we have top after –sale service as below:
4.Our all printing machines can guarantee 1 year for free , and maintain is lifelong.
5.Also we’llprovide10% partsof the machines for free before delivery .
If there is damaged parts within guarantee period, we’ll post younew parts for free by air express.
our factory
Our service:
1.All of machines provide an English operation instruction.
2.All of machines can guarantee 1 year for free and provide specific video .
3.Welcome to visit our factory and we supply technology training any time.
