Flat Silk Screen Printing Machine LC-135PH

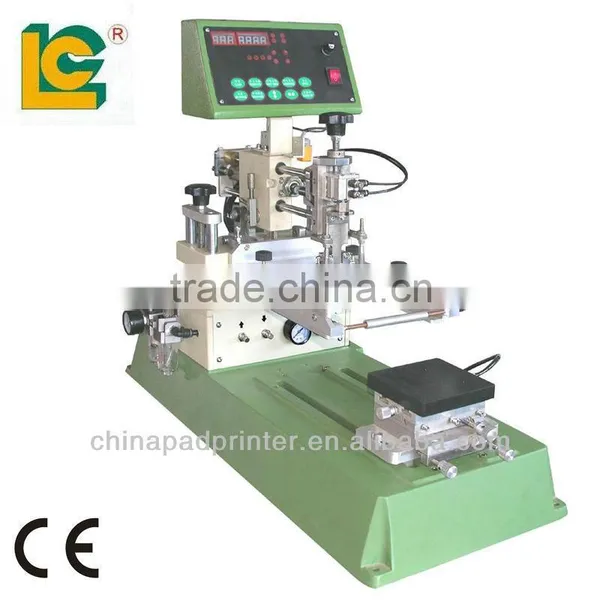

Flat Silk Screen Printing Machine LC-135PH photo-1
Flat Silk Screen Printing Machine LC-135PH photo-2

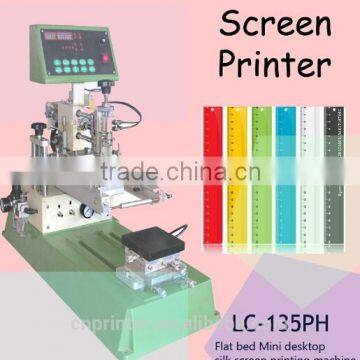

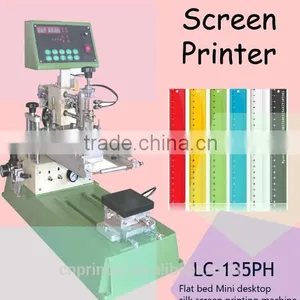

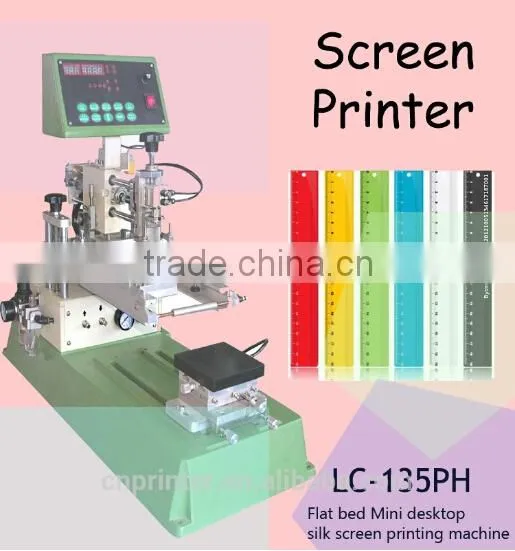

Flat Silk Screen Printing Machine LC-135PH photo-3

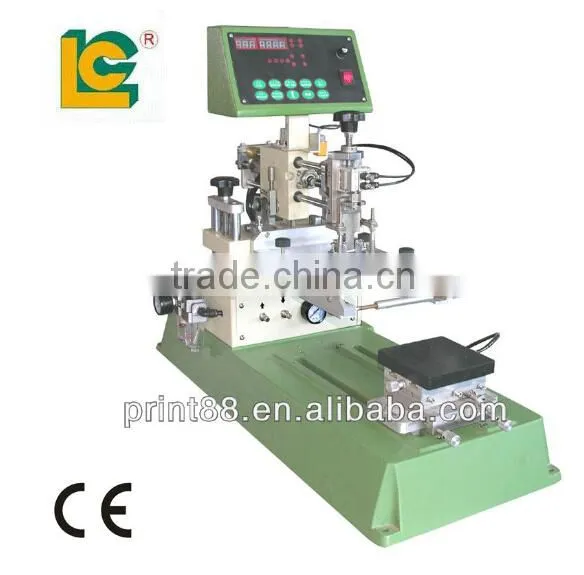

Flat Silk Screen Printing Machine LC-135PH photo-4
US$ 1,200 - 1,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
LC
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Guangdong, China
Brand Name LC
Model Number LC-135PH
Usage Card Printer, Cloths Printer, Label Printer, Paper Printer
Automatic Grade Semi-Automatic
Voltage 220V
Gross Power 50W
Dimensions(L*W*H) 850*340*660mm
Weight 40KGS
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas



Product name

Flat Silk Screen Printing machine LC-135PH

Model No

LC-135PH

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Advantage

1 , microcomputer intelligent IC cooperate with light touching panel compiler action program control, simple operation, the movement are correct and reliable.
2, with four figures automatic counters.
Three, can independence set-up the vertical and horizontal direction and worktable rotate, inhaling mesa Angle.
4, USES German FESTO pneumatic components
5, the machine running fast and smoothly, the noise is small, hardening shaft sleeves, ensure rod and reduce maintenance

6, suitable for small product design precision planar printing, appearance is exquisite, easy operation

Parameter

1.Action mode selection: automatic/semi-automatic
2.Start way: panel
3.Squeegee pressure control: pressure-regulating valve constant pressure
4.Maximum height: 40mm set
5.Working mesa dimension: 120 x 120mm
6.Maximum printing area: 100 x 100mm
7.Before 245mm trip: worktable
8.Printing  distance: 135mm
9.Screen Frame 7 *10 inch
10. The fastest speed: 1500pcs/hour-by-hour
11. Positioning precision < 0.04 mm
12. Air pressure requirements: 6 Bar
13. Power supply: : 220V / 50Hz
14. Machine size: 850 x 340 x 660mm
15. Machine Net weight: 40kg

Usage

LC-135PH  is suitable for all kinds of material product precision print. Such as: metal, glass, ceramics, plastic, wood, leather and other materials. Widely used in the electronic apparatus, advertising, toys, stationery gifts etc. Products such as lens, IC, thermal resistor etc. Meanwhile the machine also suitable for other precision printing, membrane switch (button), instruments and name plate, billboard scutcheon .

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)

Company website

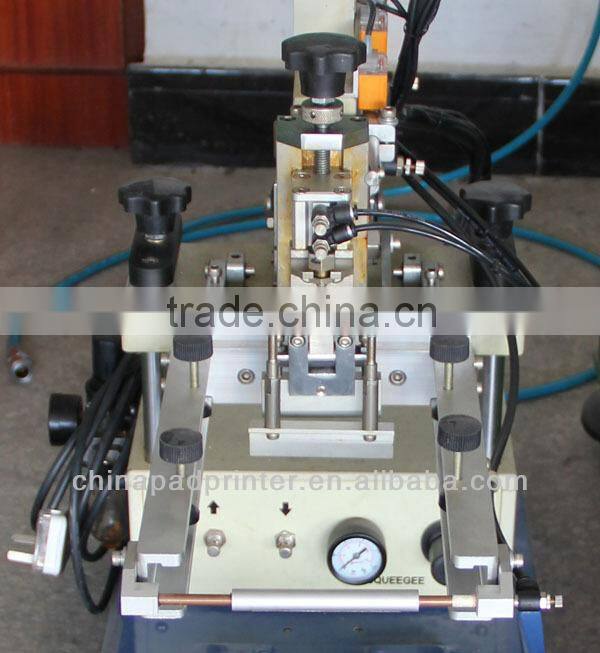

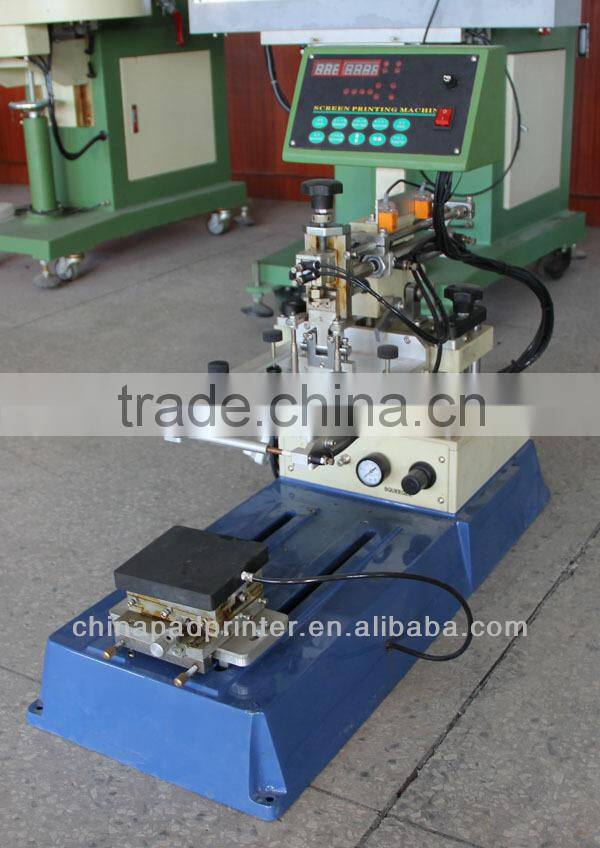

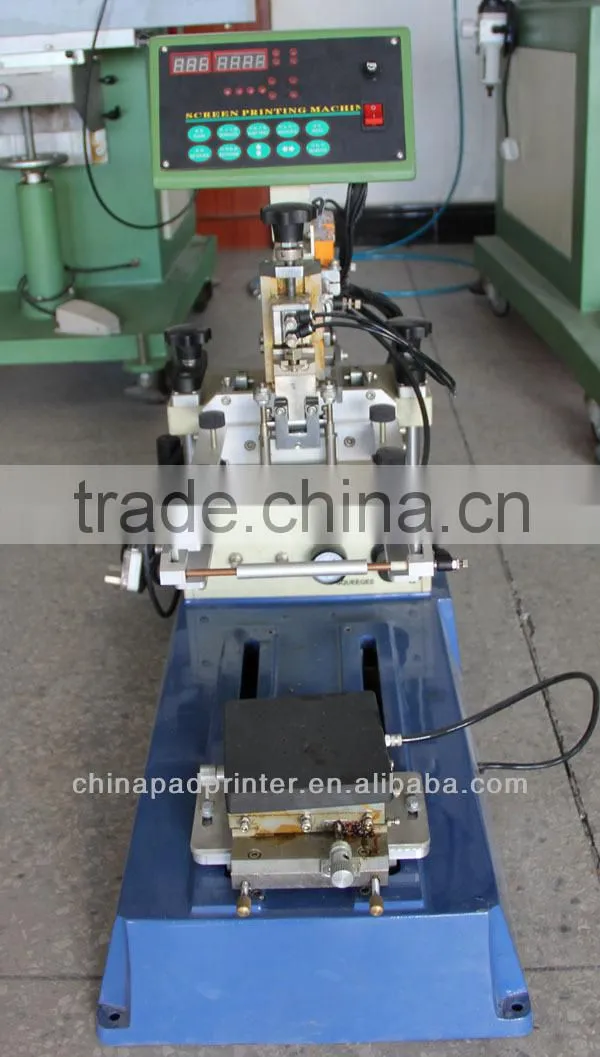

Machine detail pictures

Flat Silk Screen Printing machine LC-135PH



Flat Silk Screen Printing machine LC-135PH

 Flat Silk Screen Printing machine LC-135PH



Samples pictures Flat Silk Screen Printing machine LC-135PH



About us

1. One of three famous brand in China.our key products include pad printer, screen printer, hot stamping machine and UV curing machine.

2. We specialize in the field for 20 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.

3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.



Our Company

Flat Silk Screen Printing machine LC-135PHFlat Silk Screen Printing machine LC-135PH
