Cylindrical Screen Printer LC-PA-400E

Cylindrical Screen Printer LC-PA-400E photo-1
US$ 2,020 - 2,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
LC
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Guangdong, China
Brand Name LC
Model Number LC-PA-400E
Usage Card Printer, Label Printer, Tube Printer
Automatic Grade Semi-Automatic
Voltage 220V
Gross Power 50W
Dimensions(L*W*H) 1080*850*1280mm
Weight 145KG
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas



Product name

cylindrical screen printer LC-PA-400E

Model No

LC-PA-400E

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

Suitable for precise printing substrates in Cylindrical, Conical and Oval forms which with smooth curve surface and made of various materials such as metal, plastic, ceramic, glass, wood etc...Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles, pots, oil-filter shell etc...
Our cylinder screen printer is multifunctional screen printing machine. They are suitable to print on flat, round, oval shaped products.  Cylinder screen printers can print one color at one time. Once replacing frame and ink, they can print 2, 3^colors.

Advantage

1. Fully automatic control by microcomputer & easy handling
2. Four figures automatic counter
3. Round printing function (taper section)
4. Automaticoil scrabbing, oil return and lifting table
5. Adujustability of routs and speeds
6. Self-poise scraper to balance printing pressure
7. Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)
8. High precision and easy & quick adjustability

Parameter

1. Model number: LC-PA-400E
2. Product appearance: Round /oblate /flat
3. (Round)Max. Printing diameter: Φ120mm
4. (Round)Max printing arc length: L: 370mm
5. (oblate)Max printing diameter: 500mm
6. (flat) Max printing area: 320*220mm
7. Printing Speed: 1200 PC/H
8. Machine/ Weight: 145kg
6. Air pressure: 0.5Mpa
7. Voltage power: 220V/ 60HZ or 110V/50HZ

Usage

Application area detergent bottles, Pens, beverage bottles, cups, cans, , Cosmetics package box, lipstick tube.

Free fittings

1.110V or 220V power supply.
2.5-7 bar compress air.
3. Esposal screen plate 1 pcs.
4. A jig 1pcs.
5.5-10 pcs product samples.

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)

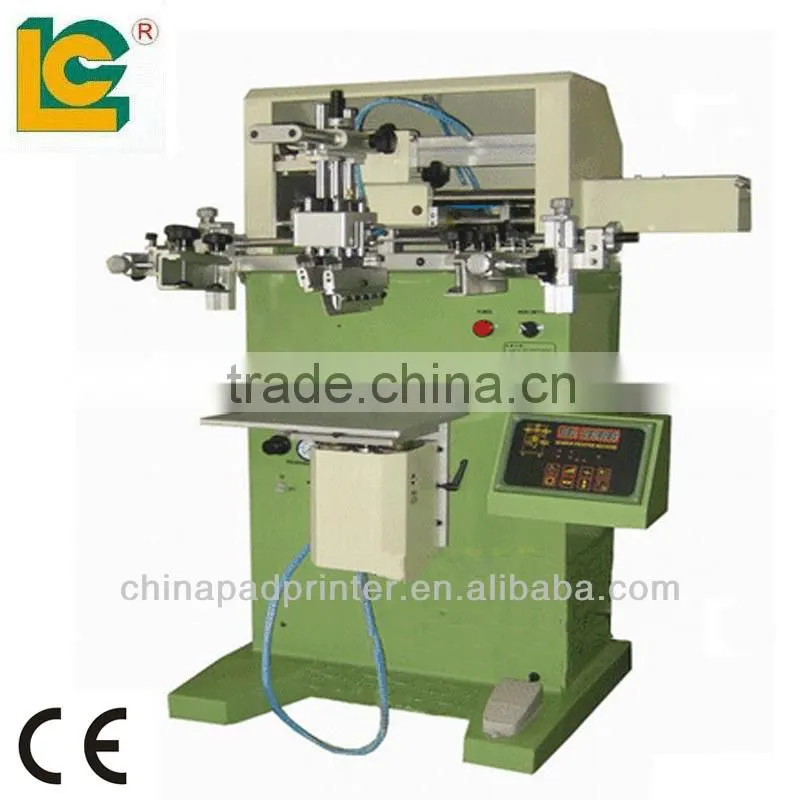

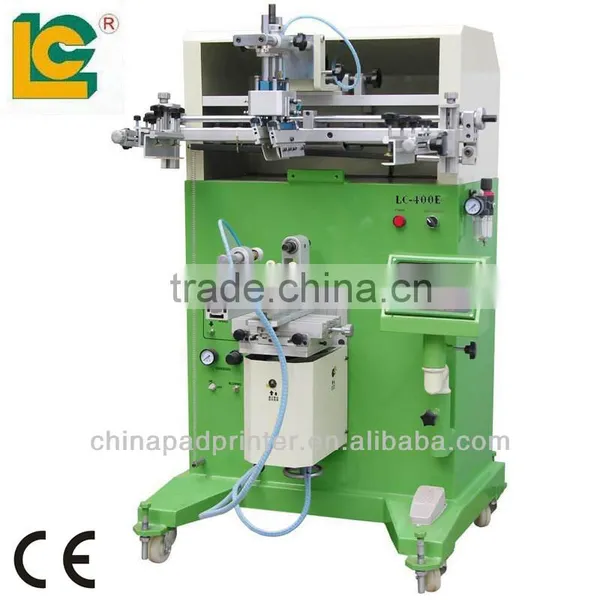

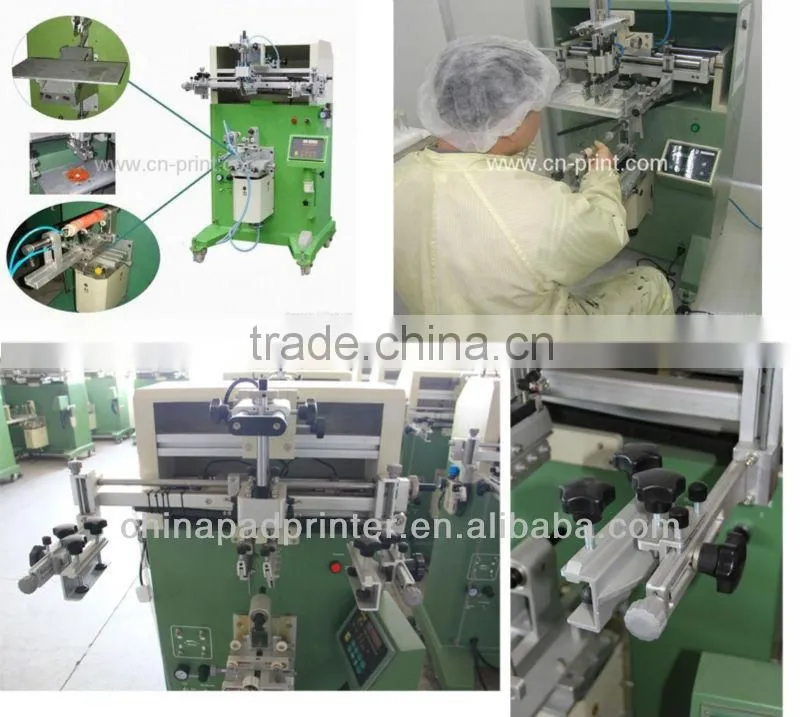

Machine detail pictures

 cylindrical screen printer LC-PA-400Ecylindrical screen printer LC-PA-400E

Samples pictures

 cylindrical screen printer LC-PA-400Ecylindrical screen printer LC-PA-400Ecylindrical screen printer LC-PA-400E

About us

1. One of three famous brand in China.our key products include pad printer, screen printer, hot stamping machine and UV curing machine.

2. We specialize in the field for 20 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.

3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.



Our Company

cylindrical screen printer LC-PA-400Ecylindrical screen printer LC-PA-400E
