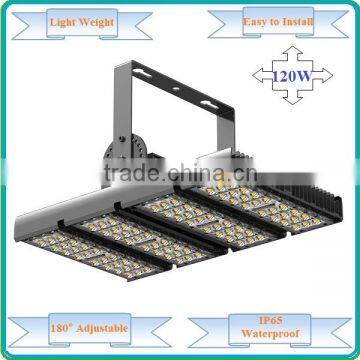

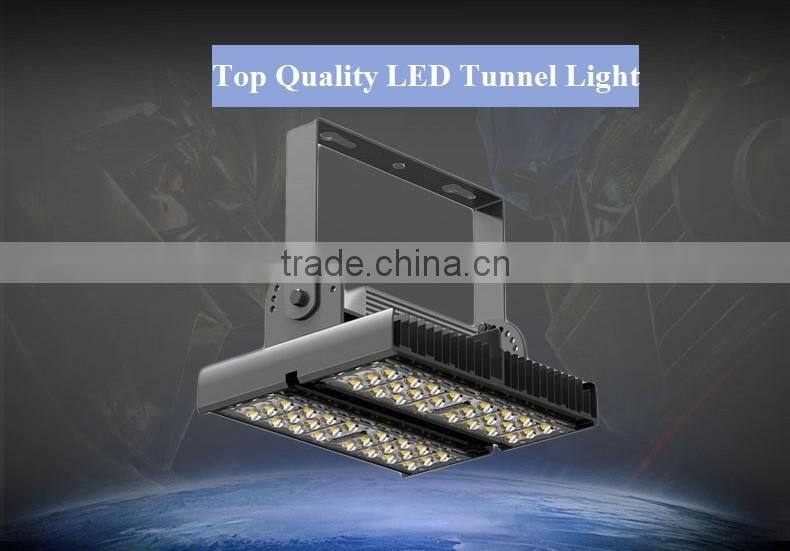

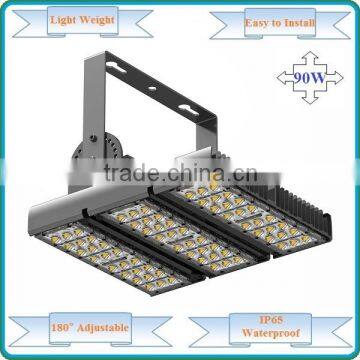

Made in China IP65 Waterproof 60W 90W 120W 180W LED Tunnel Light
Features and Advantage:
1. Superior aluminum heat sink with good heat dissipation.
2. Super bright Bridgelux high power LEDs with high luminous efficency: 100lm/W.
3. 180° adjustable U bracket for easy and stable installation.
4. Wide input voltage: AC100-240V.
5. Optimum light uniformity and high color homogeneity.
6. MeanWell driver for good performance.
7. Energy-saving with low lumen depreciation.
8. No noise, No flicker, No UV and No IR.
9. 50,000 hours lifespan with 3 years warranty.
10. IP65 waterproof for both indoor and outdoor use.
Technical Specifications:
LED Tunnel Light | ||||
Modle No. |
BLE-LTL-60W |
BLE-LTL-90W |
BLE-LTL-120W |
BLE-LTL-180W |
Power |
60W |
90W |
120W |
180W |
Lumen |
6000lm |
9000lm |
12000lm |
18000lm |
Lumen Effi. |
100lm/W |
100lm/W |
100lm/W |
100lm/W |
Dimension(mm) |
L298*W340*H138 |
L298*W340*H138 |
L485*W298*H138 |
L596*W360*H138 |
LED Qty. |
48pcs |
72pcs |
96pcs |
144pcs |
Light Source |
Bridgelux LEDs |
|||
Input Voltage |
AC100-240V/50~60Hz |
|||
Power Factor |
>0.92 |
|||
CRI |
>80Ra |
|||
Color Temp. |
Warm White: 2800~3200K |
|||
Natural White: 4000~4500K | ||||
Cool White: 6000~6500K | ||||
Material |
Aluminum Alloy Body + Lens |
|||
Beam Angle |
25°/60°/90° |
|||
Lifespan |
50,000 hours |
|||
Warranty |
3 Years |
|||
IP Rating |
IP65 waterproof |
|||
Working Temp. |
-20°~ 65° |
|||
Installation |
U Bracket Surface Mounted(180° adjustable) |
|||
Driver |
MeanWell Driver |
|||
Application |
Indoor and outdoor use such as road. railway, subway, tunnel, warehouse, workshop |
|||

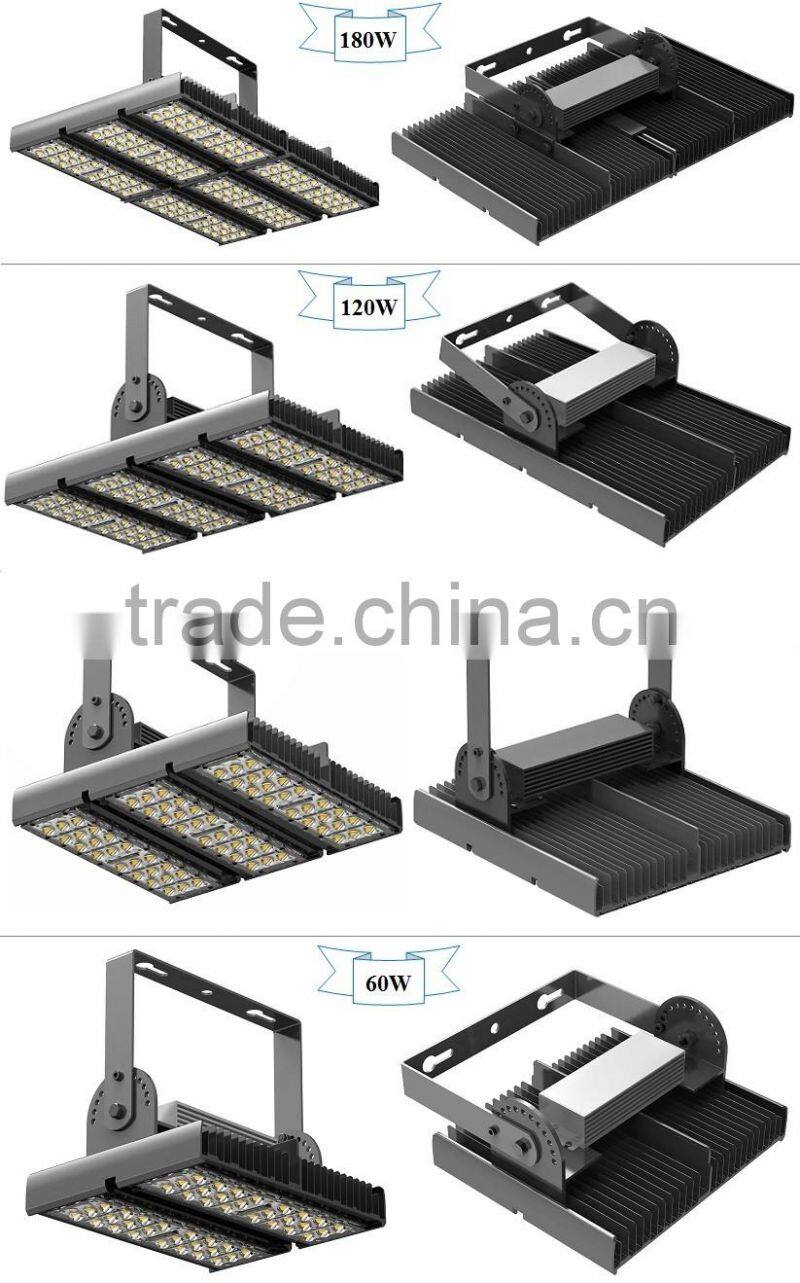

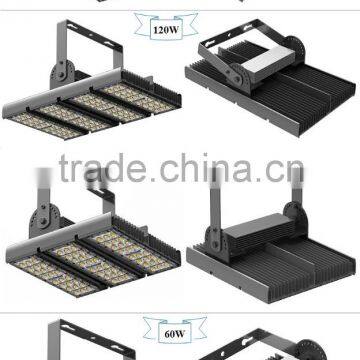

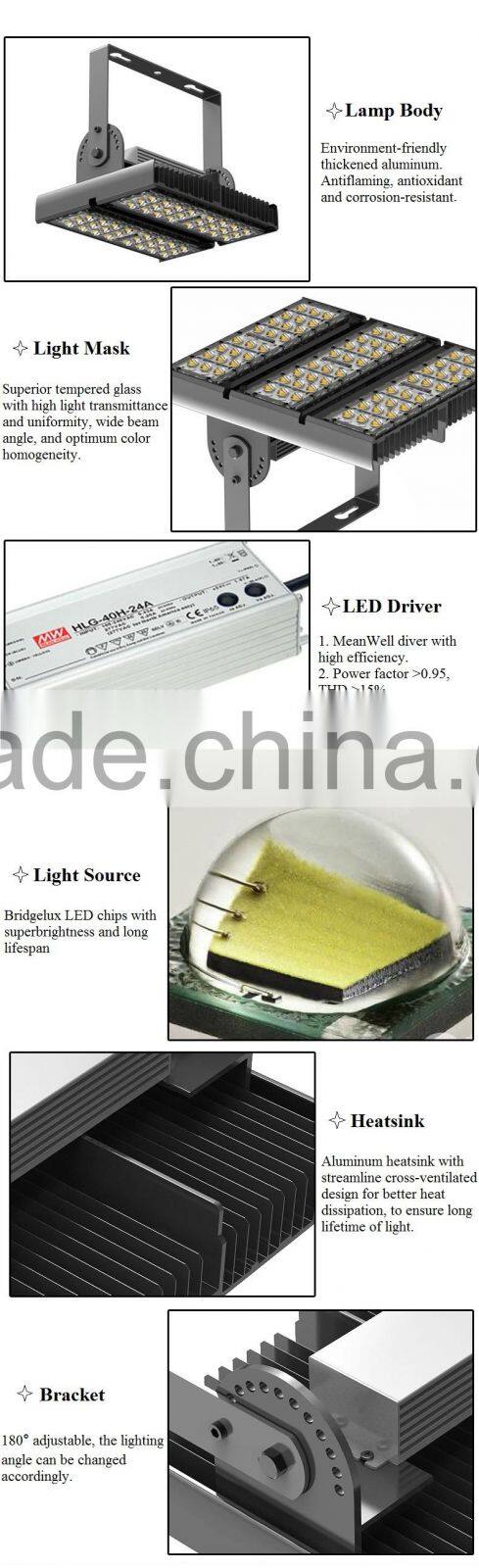

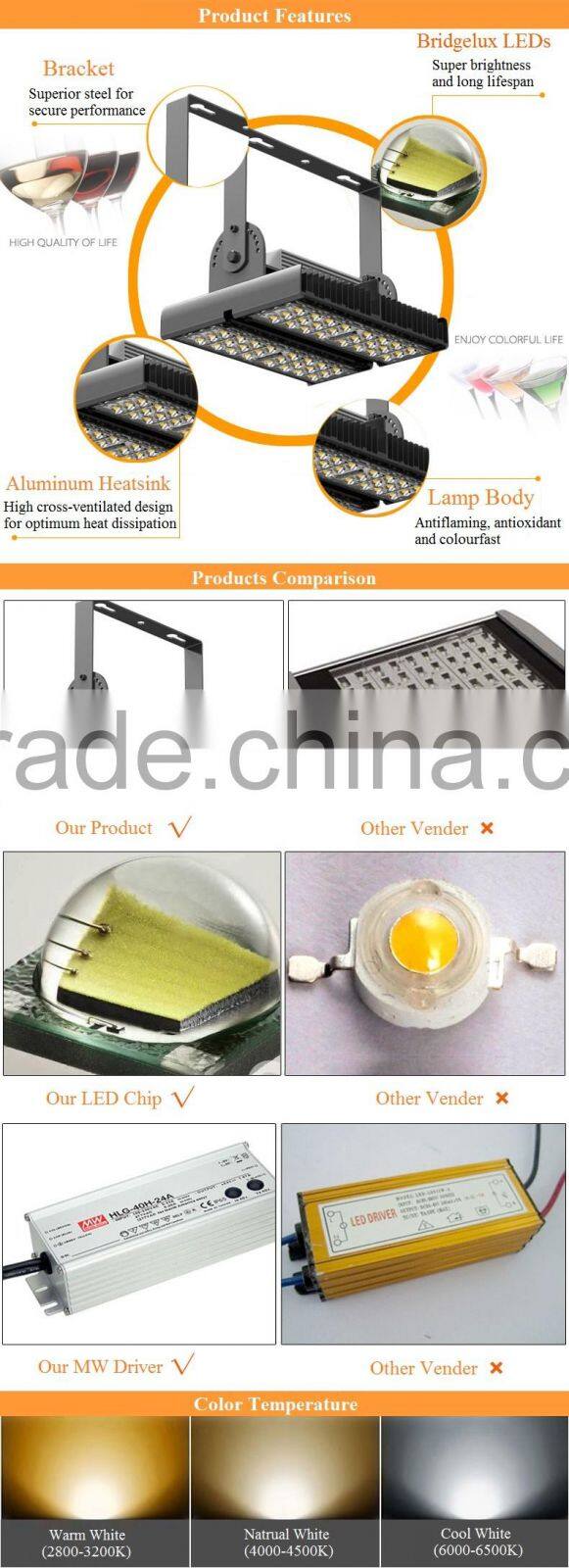

Products Details Show:

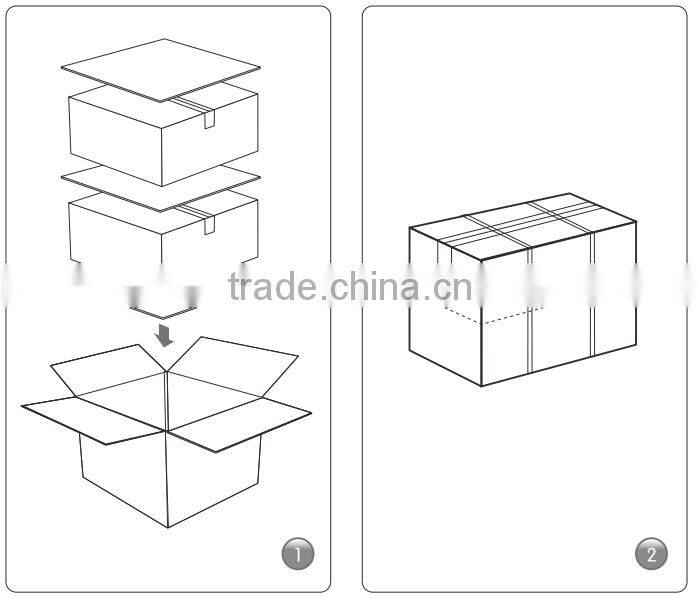

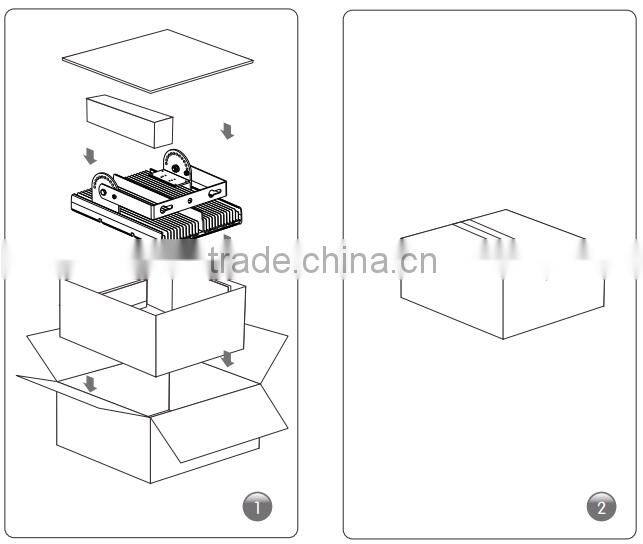

Package:
Step 1: Packing the light in the small carton.
Step 2: Packing the small cartons in big carton.

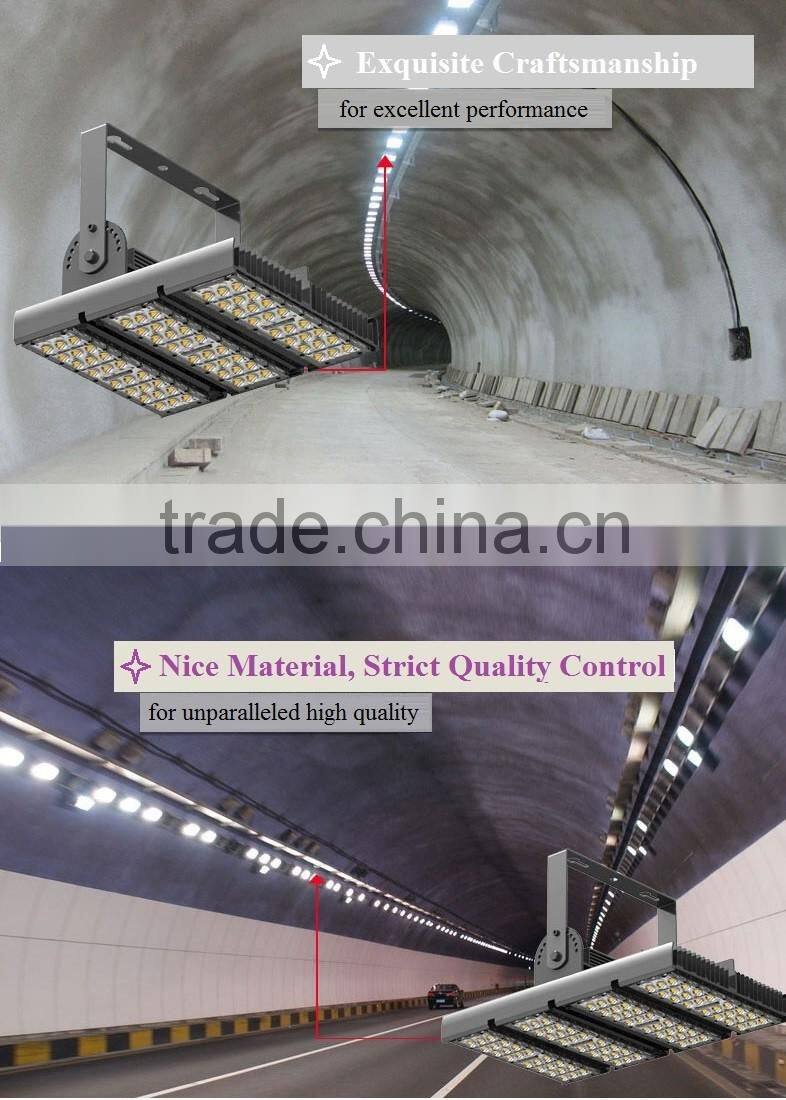

Application:

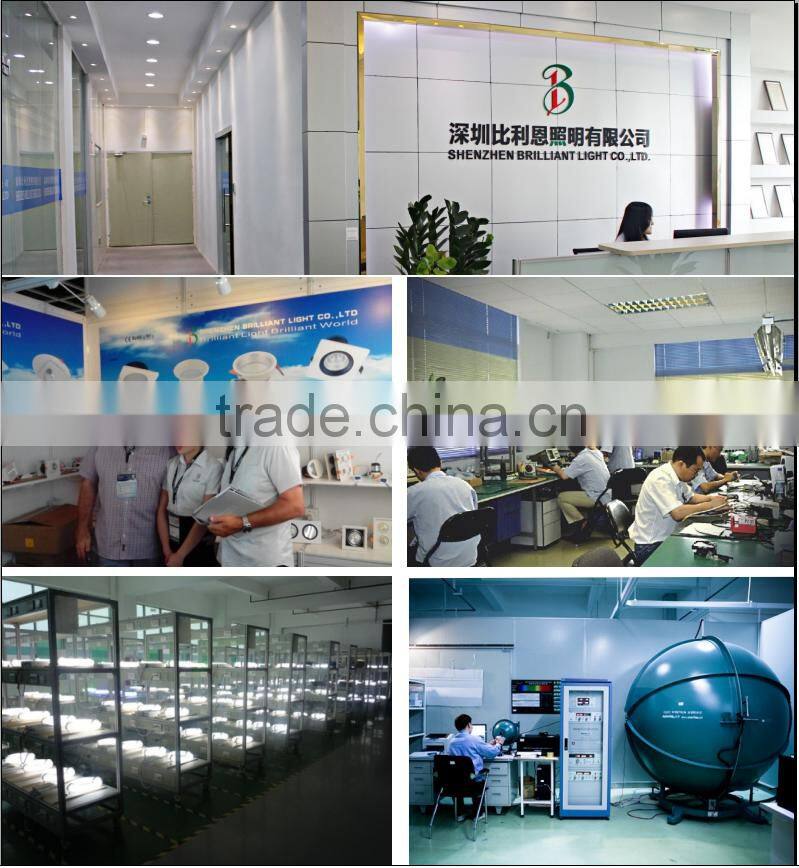

Factory Show:
Shenzhen Brilliant Light Co., Ltd is a leading manufacturer in developing and manufacturing Indoor and outdoor LED lightings, including LED Fresh Light, LED Tube, LED Down Light, LED Panel Lights, LED Spotlights, LED Bulbs, LED Highbay Lights and LED Street Lights and so on. We have a strict quality control system through the design and manufacture of innovative hardware and software, from led light shell, LED chips, led driver, to complete LED light assembly and test. All processes follow the ISO9001: 2008 quality control system strictly to guarantee the excellent quality of our finished LED products.
Our strong R & D team enables any OEM, ODM cooperation completed in a very efficient way. And we have a lot of new and better LED products each year to keep us in the front of the LED industry in China.
Philosophy:
Provide the most efficient and suitable solution satisfying the most stringent customer requirements! Create the biggest value for clients!
Culture:
Honesty -- Fulfill what we promised.
Responsibility -- Fully responsible to our clients and working.
Cooperation -- Win-Win cooperation.
Creative -- Create the biggest value for our clients.
Trade Term:
1. Payment:T/T or Western Union in advance or 30% deposit, 70% before shippment(for big order); or L/C at sight.
2. Delivery time: 3 working days for sample order, 7-10 days for a order >5000pcs .
3. Samples can be delivered in 7 working days.
4. Freight are quoted under your requests.
5. Shipping Port: shenzhen, China(Mainland).
6. Discounts are offered depend on quantities
Shipment:
1.We provide express ways( DHL, UPS, FEDEX, TNT, EMS, etc) or by sea, or by air, all ways are avaliable.
2. For the freight, you can choose ship from our factory directly or use your own forwarder, both are OK.
3. We will choose cheap and good service shipping company for you.
4. Please tell us your exact shipping address and contact telephone before we arrange products shippment.
Warranty and Maintenance
1. Warranty: 3 years, since the date of purchase.
2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period,
we will provide free new products based on the proof-documents.
3. If failure or damage due to incorrect operation, wire connection, or anything other do not follow
our instuction.We will provide paid maintance within warranty period.
Our Service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM & ODM, any your customized lighings we can help you to design and put into product.
4. Distributers are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
If any further questions, please feel free to contact us.
Welcome to Visit Our Factory
