Full Automatic Penholder Double-end Printing Machines Ballpoint Pen Printing 3d Pen Printing

Full Automatic Penholder Double-end Printing Machines Ballpoint Pen Printing 3d Pen Printing thumbnail-1
Full Automatic Penholder Double-end Printing Machines Ballpoint Pen Printing 3d Pen Printing photo-1
US$ 12,500 - 13,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, uv printing
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Luen Cheong Printing Equipment Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, uv printing
Place of Origin Guangdong, China
Brand Name LC
Model Number pe printing machine
Usage Label Printer, Tube Printer, Other, Label Printer, Tube Printer, pencil with logo printed
Automatic Grade Automatic
Voltage 110V/220V
Gross Power 6.3KW
Dimensions(L*W*H) 3200*1120*1520MM
Weight 630
Certification CE iso9001
After-sales Service Provided Engineers available to service machinery overseas




Product Description



SPECIAL FUNCTION:

1. One operator, the two orbits can work at the same time. The machine can be stopped to clean screen frame, adding ink at any ti  me, and the machine designed specially to make sure the pen-holder won’t be scorch and out of shape when the machine stop working.





The printing objects won’t be scorch and out of shape when the machine stop.

2. It can print conicity products, and the maximum conicity is 3°.

3.The printing baseplate has the vacuum function(optional) which can ensure the precision of registering.

4. High printing speed: 2 color----3600pcs/hour    1 color----7200/hour

5. The machine can printing two differents patterns or different kinds of pen-holders at the same time.

6. It have dust-abatement device (optional), which can clean dust on pen-holder before printing.

7. Double scrapers design to keep printing and ink flooding perfectly and reliable.

8.No gear and rack for 2 colors printing, it operated convinently







BASIC FUNCTION:

  pen printing

1. Full electric control, no need compress air, and automatic register control.

2. Uplo pen printer machine price ading and downloading pen-holder automatically, The machine can printing in 1 or 2 orbits, and printing patterns in 1 or 2 colors.

3.The machine run smoothly, and the printing speed and printing stroke are adjustable.

4.Taiwan made transducer which ensure the printing effect consistently.

5.Adopt IR infrared ray (or UV ultraviolet radiation drying system, optional), printing and drying can be finished at the same time.

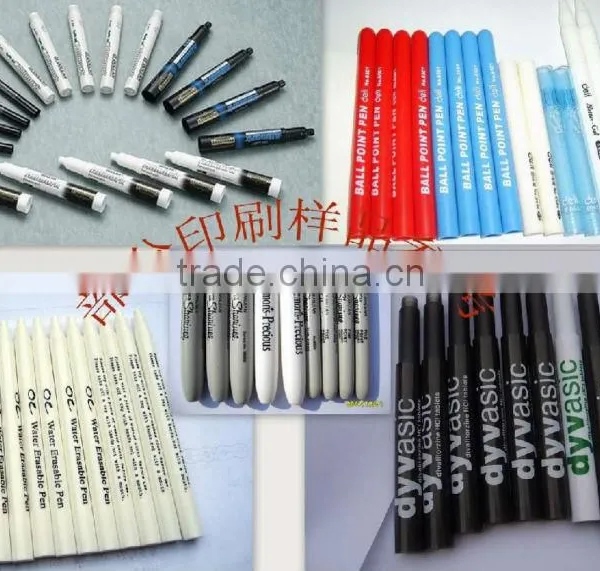

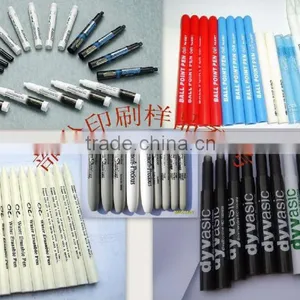

6.Application: The machine be widely used in the printing of ball pen, water erasable pen, pencil, marker pen, eyebrow pencil, lipstick, medical test tube, etc.





         TECHNICAL DATA:

Diameter of printing objects

 1 color , D:3~φ20mm     2 color,D:20mm

Length of printing objects

60~160mm

Width of printing route

20~80mm

Printing speed

1 color: 7200pcs/hr    2 color: 3600pcs/hour

Power

220V  50/60Hz  6.3KW

  Weight

630kg

Machine Dimension

3200×1120×1520mm



Full Automatic Penholder Double-end Printing Machines ballpoint pen printing 3d pen printingFull Automatic Penholder Double-end Printing Machines ballpoint pen printing 3d pen printingFull Automatic Penholder Double-end Printing Machines ballpoint pen printing 3d pen printingFull Automatic Penholder Double-end Printing Machines ballpoint pen printing 3d pen printing


Packaging & Shipping





the machine is packed in wood case,shipped by sea or air






Our Services

In order to protect the rights and interests of each user, each printing machine has to undergo a rigorous inspection and testing in factory before sold out as to deliver the most comprehensive after-sales service. Our company's goal: First-class quality, first-class technology, provide customers with first-class products and services.






Company Information



Business Type : Manufacturer
Main Products : Pad Printer , Screen Printers , Screen Printing Machines , Hot Foil Stamping Machine , UV Curing Machine
Management Certification : ISO 9001
City/Province : Dongguan, Guangdong, China
