Help CenterSquare Channel Steel Box Channel Steel, Steel Channel Theoretical Weight Chart
Related Products
Specifications

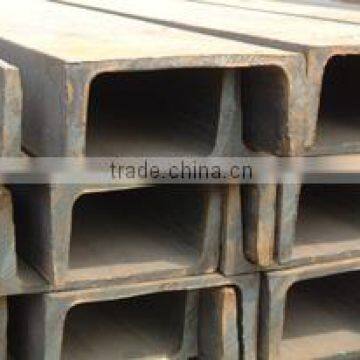

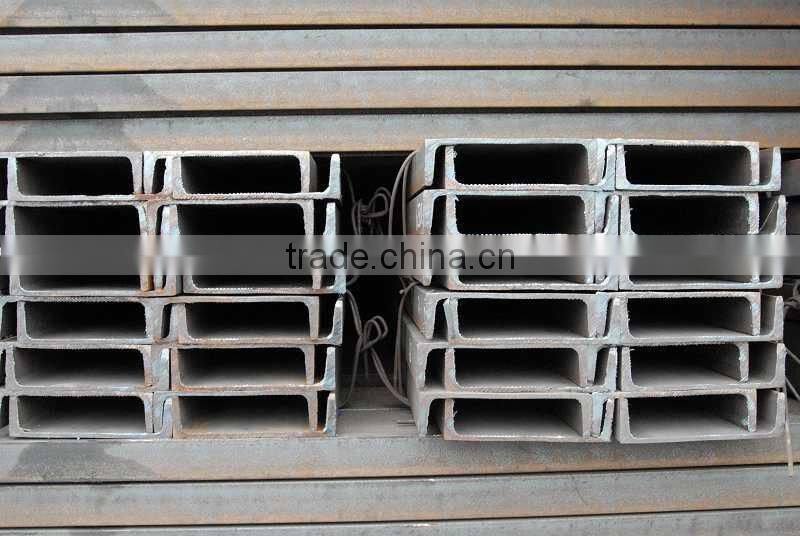

Brief description:Product name: U Channel steel
Model: 5-40# B: 37-104mm D: 4.5-14.5mm H: 56-400mm
Length: 5-19m
Detailed description:
1. Product name: Channel steel&U channel steel
2. Model: 5-40#
3. B: 37-104mm D: 4.5-14.5mm H: 56-400mm
4. Length: 5-19m or according to customer's requirements.
5. Technique: Hot rolling
6. Standard: GB707-88, ASTM, JIS
7. Material: Q195, Q235, Q345, Q215
8. Used for: Building structure, vehicles and other industrial structure. 14# used for construction projects under purlin, more than 16 # for vehicle chassis, mechanical structure of the framework, 30 # above can be used by the bridge structure for the bar, also used for industrial workshop beam and column, channel, also often such components used and choices.
9. Production capacity: 1600ton/month
10. Package: Bags, in bundle, containers or according to customer's requirements.
11. Port of shipment: : Tianjin, Shanghai, Qingdao
12. Date of delivery: Within 30 days after receiving the advance payment or L/C.
13. Payment: L/C, T/T
Steel channel theory weight chart
Model |
Size/mm |
Theory weight/(kg/m) |
||
h |
b |
d |
||
(27a) |
270 |
82 |
7.5 |
30.838 |
(27b) |
270 |
84 |
9.5 |
35.077 |
(27c) |
270 |
86 |
11.5 |
39.316 |
28a |
280 |
82 |
7.5 |
31.427 |
28b |
280 |
84 |
9.5 |
35.823 |
28c |
280 |
86 |
11.5 |
40.219 |
(30a) |
300 |
85 |
7.5 |
34.463 |
(30b) |
300 |
87 |
9.5 |
39.173 |
(30c) |
300 |
89 |
11.5 |
43.883 |
32a |
320 |
88 |
8.0 |
38.083 |
32b |
320 |
90 |
10.0 |
43.107 |
32c |
320 |
92 |
12.0 |
48.131 |
36a |
360 |
96 |
9.0 |
47.814 |
36b |
360 |
98 |
11.0 |
53.466 |
36c |
360 |
100 |
13.0 |
59.118 |
40a |
400 |
100 |
10.5 |
58.928 |
40b |
400 |
102 |
12.5 |
65.208 |
40c |
400 |
104 |
14.5 |
71.488 |
|
|
|
|
|
SIZE
50*25*3.8
50*37*4.5
63*40*4.8
75*40*3.8
75*40*4
75*40*5
80*43*5
100*48*5.3
100*50*3.8
100*50*5
100*50*5.5
100*50*6
120*53.5.5
125*65*5.2
125*65*6
125*65*6.4
140*58*6
140*60*8
150*75*5.5
150*75*5.7
150*75*6.5
150*75*6
160*63*6.5
160*65*8.5
180*68*7
180*70*9
200*73*7
200*75*9
220*77*7
220*79*9
240*78*7
240*80*9
250*78*7
250*80*9
270*82*7.5
280*82*7.5
300*85*7.5
320*88*8
360*96*9
Our company is devoted to offer good quality and price. Welcome to visit our factory and start a long friendship with a superior supplier like us!
Advanced equipment, top-ranking process and sound management are always pledges of our product quality.

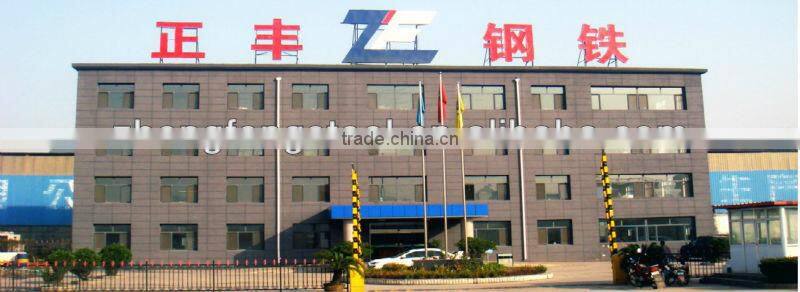

Tangshan Zhengfeng Steel Co., Ltd is a united company integrating with production and trading in Tangshan City. Our company enjoys an exceptionally favorable geographic advantage and convenient transportation. Our company covers an area of 600 acres and the investment in fixed assets is RMB180 million. Our annual output is 500,000 metric tons of continuous casting steel billet, 600,000 metric tons of profiled steel bars and 300,000 metric tons of deformed steel bars. We have the import and export rights.
Advanced equipment, top-ranking process and sound management are always pledges of our product quality. We adopt USA GE PLC from Beijing Iron & Steel Research Institute and German Siemens DC timing devices and exclusively introduce no-tension rolling, which tackles tandem rolling problem. Additionally, our double length flying shears has national level, which was designed by electric drive chief experts, Yue Chun of China Metallurgical Group
With the principle of "faithful management and customers first", we will increasingly keep with the customers, focusing upon complementary advantages and resources share by continuously promoting our performance. Please feel free to contact us for further information.
For further information, please contact the sales staff Ms. Amy Young.
Name: Amy Young
Sales staff, International Trade Department
Tel: 0086 13739887590
E-mail: 13739887590@ yeschinaok@ ///
Tangshan Zhengfeng Steel Co., Ltd
Address: No. 268 of Linyin Road, Fengrun District, Tangshan City, Hebei Province, China.
