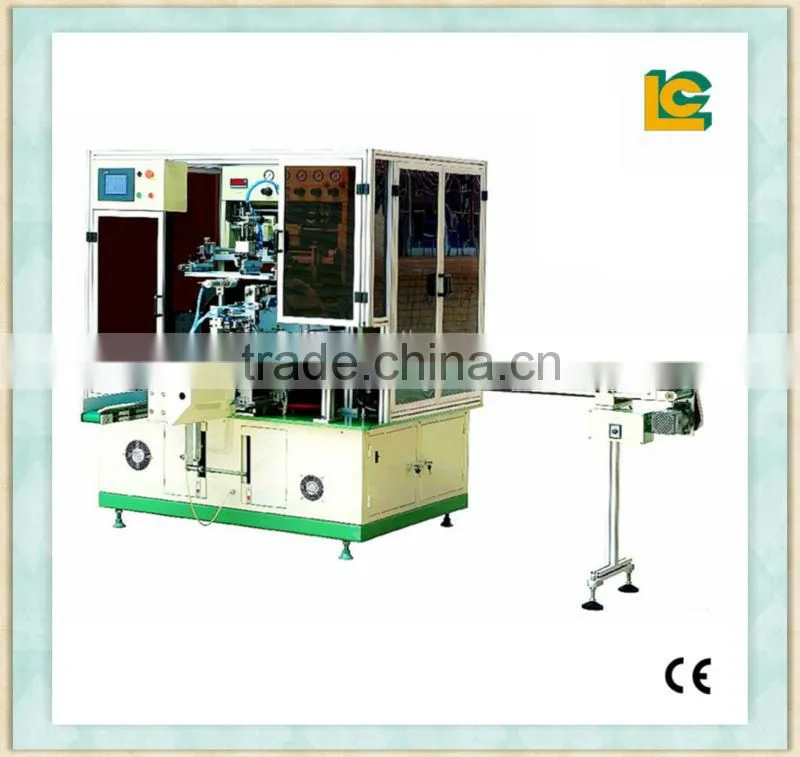

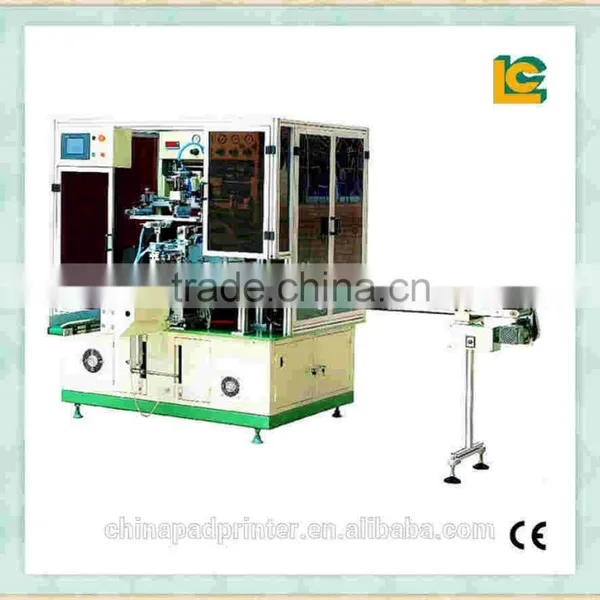

Full Auto Screen Printing machine/silk printer LC-VR120UV

Product name

  Full Auto glass Screen Printing machine

Model No

 LC-VR120UV

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Parameter

1.Model No:LC-VR12UV

2.Printing colors:1 color

3.Product appearance;Round bottle

4.operation:Full Auto

5Max printing diameter:10--70mm

6.Printing Max Length:20-200 mm

7.Printing station:12 jigs

8.Max Printing speed:3600 Pcs/Hr

9.power:380V 50 MHz

10.Air pressure:0.6-0.8Mpa

11.wattage : 4.5 KW

12.weight:1080 kg

13.Dimensions:L:1500 ×W:1180×H:1900mm

Free fittings

SILK SCREEN PLATE

Description

1. The conveyer speed can adjustment according to the products drying condition;
2. Conveyer belt mabe by tefulong materials;
3. Famous brand UV lamp installed ;
4. Cooling fan installed on the side to remove the heat in curing chamber;

Advantage

1.Full auot UV SCREN PRINTER is specially designed for the circular-shaped applications such as

soft tubes, bottle caps and cream bottles. It also supports the operation of polychrome printing and

accurate color register.

2.The main transfer system adopts famous Occident transmission equipment. With the help of

accurate interval slicer in high speed, the system is able to realize the accurate transmission of

division, which makes this machine perform stably at a printing speed of 3600 times/hour.
3.The control of this machine, PLC, enjoys a high reputation. Equipped with simple, convenient and

fast touch screen system, man-machine conversation is possible, which makes the operation more

handy.

Usage

1.Glass 2.Electron, Hardware, Auto, Toys, Gifts, Plastics parts,Plastics products, House appliances, work of

art, Stationery, Ornament, cosmetic, sports apparatus .UV drying for UV ink .

customer

USA, UK, Germany, Spain, South Africa,

Australia,Indonesia,Malaysia, France, India,Mexico,Brazil etc

Delivery time

Within 25 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case/as required

Price term

FOB OR CFR,Shenzhen,China
