Help CenterLC-HR108 Automatic UV Screen Printer
Related Products
-
Great Full Auto Penholder Double-end Printer Pen Printing MachineUS$ 11,500 - 12,800MOQ: 1 Set -
Great Full Auto Pen Printer Penholder Double-end PrinterUS$ 11,500 - 12,800MOQ: 1 Set
-
China Cheap Full Auto Pen Printer Penholder Double-end PrinterUS$ 11,500 - 12,800MOQ: 1 Set
-
Full Automatic Pen Printing Machine Penholder Double-end Printer China MadeUS$ 11,500 - 12,800MOQ: 1 Set
-
Cheap Full Automatic Pen Printing Machine Penholder Double-end PrinterUS$ 11,500 - 12,800MOQ: 1 Set
Specifications
Applied to plane daily necessities etcSingle color Full-automatic Max speed 3600PCS/ Hr
Automatic Plane UV Screen Printer
Automatic Plane UV Screen Printer :
Scope of application:
IT, daily necessities, food packaging and other industries within the plane objects, such as electronic products, shell, toys, etc.
Function description:
1, synchronous feeding (optional)
2, flame treatment system
3, mechanical automatic print system
4, automatic unloading systemVersion
5, pneumatic net lift function (with net washing), touch screen operation, low pressure, overloading and overheating alarm automatic monitoring and other functions
6, optional high temperature oven or UV ultraviolet furnace
7, the whole machine electrical components and the control system adopts the German and Japanese components, ensure the machine running stable.
Main parts:
1. MAIN MOTOR: SITI(Italy)
2. PLC: Omron(Japan)
3. SENSOR: Optex(Japan)
4...TOUCH SCREEN: Proface(Japan)
5. Switch: Schneider(France)
6. (CONTACTOR): (Schneider)(France)
7(RELAY): (Idec)(Japan)
8. (INVERTER): Omron(Japan)
9. (UV CURING)(Primarc brand uv lamp ) Britain
10. (PNEUMATIC): Festo(Germany)
Technical parameters:
model:LC - HR108
The biggest printing area:L120 x120mm (can make to order a larger size)
The fastest printing speed:4000 / hour
Power requirements:220 v / 380 v
Volume (length x width x height):1900 x 1200 x 1600
Amount of weight:800 kg.

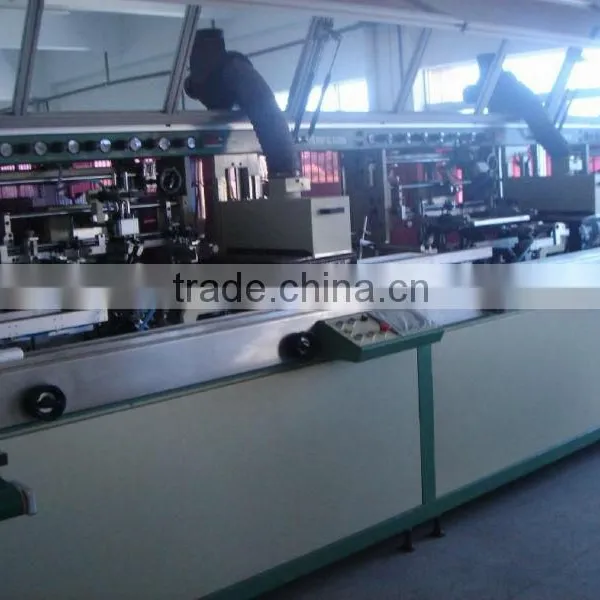

LC-HR108 Automatic Plane UV Screen Printer
LC-HR108 Automatic Plane UV Screen Printer samples

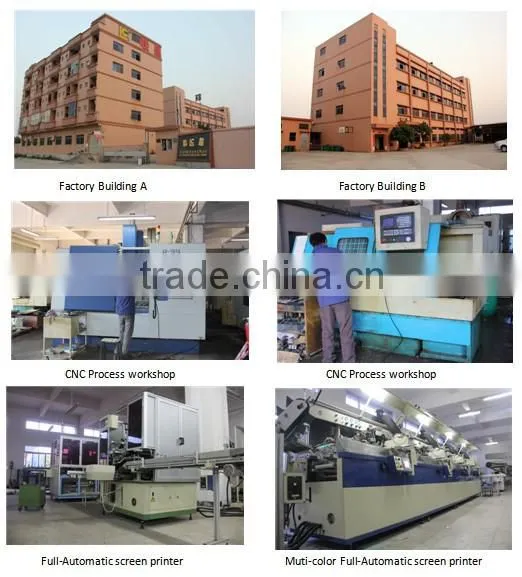

Factory picture
