Specifications
Hight quality aluminum curtain walldecorative materials
the best price
aluminum panels
Beiliming aluminum curtain wallsare made of high quality aluminum panels according to special size,shape and structure.We carry out strict quality control system ISO9001:2000, our high qulity panels are exported to many countries all over the world and used in more than 1000 projects.
Features of Beiliming aluminum curtain wall:
1.Light weight,high strength and rigidity
2.Excellent weather resistance and anticorrosion
3.Good procession capacity,able to be shaped into flat,arc,globe and any artistic shape
4.Various colours for choice,make good decoration effects.
5.Easy to be cleaned and maintained.
6.Easy and quick in installation
7.Environmental-friendly,able to be recycled
Raw materials of Beiliming aluminum curtain wall:
1.Alumminum panel:high quality aluminum panel,normal type AA1100 and AA3003
2.painting:PPG,Akzo Nobel,Nipon,Becker
Shape:
According to requirement,could make flat,arc,bow and other artistic shape.
Size:
Thickness:2.0mm,2.5mm,3.0mm,3.5mm,4.0mm
Max size:1600mm x 4500 mm( Flat)
Colour:
You could choose any colour from RAL and Pantone card, or provide any colour sample to us
Production process of aluminum panel:
ject design
2.CAD drawing
3.check out procedures
4.check aluminum sheet
5.cutting aluminum sheet
6.Punch
ure bend
8.artistic shape processing
9.sealing weld
10.rim angle trimming and loader installation
11.stud welding reinforcement
12.surface polish
13.drug test
14.clean and chromium
15.electrostatic spray
16.quality inspection
17.film pasting and packing
Spraying process:
1st coat option: colour top coating
2st coat option: base primer + colour top coating
3st coat option: base primer + colour top coating + protecting paint
4st coat option: base primer + separation coating + colour top coating + protecting paint

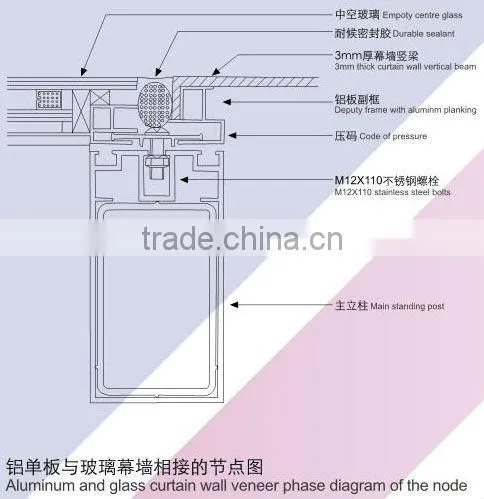

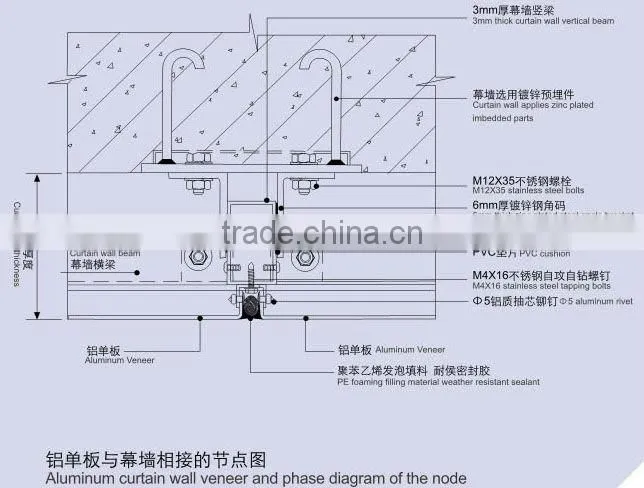

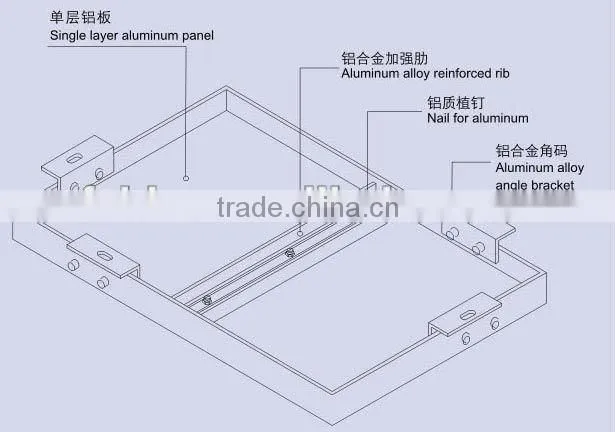

Structure of aluminum panel
Surface of aluminum panel: PVDF
The combination of PVDF resin and inorganic pigments enables it durable more than 20 years.
what we have done in SENTOSA SINGAPORE
Bankof China Beijing Branch

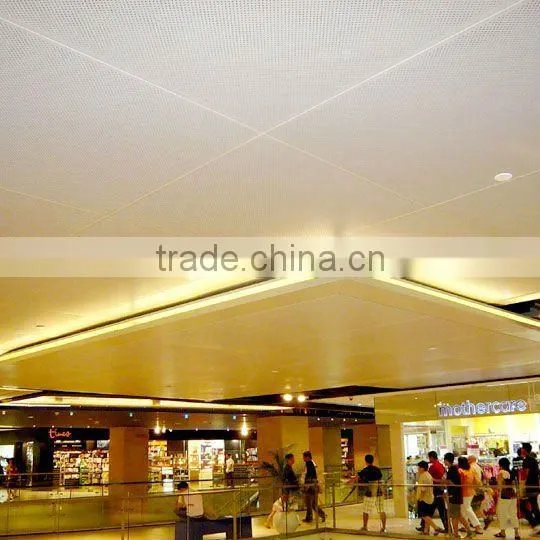

our door ceiling
our metal wall
our honours certificate
