Home > Electrical & Electronics > Switch > Slide Switch > SPDT for P.C. Board Miniature Slide Switches

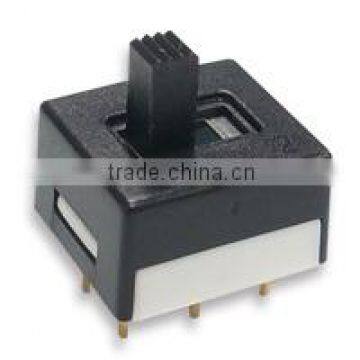

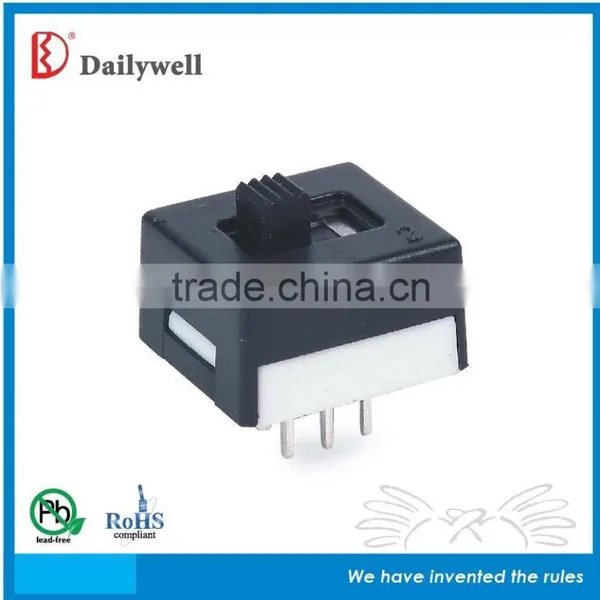

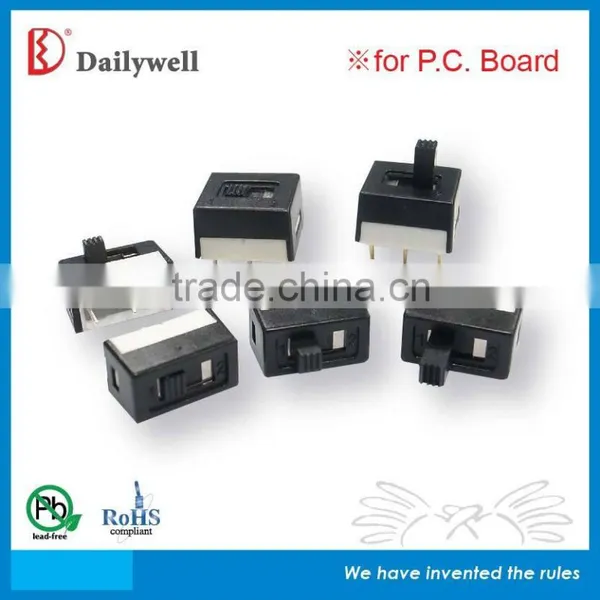

SPDT for P.C. Board Miniature Slide Switches
US$ 0.1 - 0.3
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Dailywell
Model Number:
6M SERIES
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DC Power Jack With Slide SwitchUS$ 0.1 - 2MOQ: 100 Pieces -
Panel Mount Tabs Available Slide SwitchesUS$ 0.1 - 0.5MOQ: 100 Pieces
-
Sub-Miniature Slide SwitchesUS$ 0.1 - 0.5MOQ: 100 Pieces
-
Washable Sub-Miniature Slide SwitchesUS$ 0.1 - 0.5MOQ: 100 Pieces
-
for P.C. Board Miniature Slide SwitchesUS$ 0.1 - 0.3MOQ: 100 Pieces
Place of Origin
Taiwan, China
Brand Name
Dailywell
Model Number
6M SERIES
Max. Current
0.4VA (maximum) at 20V (maximum) (AC or DC)
Max. Voltage
3A at 120V AC or 28V DC/1A at 250VAC
Mechanical Life
20000 Cycles
Product Description
Miniature Slide Switches for P.C. board-6M Series
Contact Ratings
|
CONTACT PLATING |
TERMINAL PLATING |
RATINGS |
Q |
Silver |
Q=Gold flash over silver |
5 Amps with resistant load @ 120VAC or 28VDC 2 Amps with resistant load @ 250VAC |
S |
S=Gold flash over silver,pure-tin |
||
C |
Gold over Silver |
C=Gold over silver |
|
K |
K=Gold over silver,pure-tin |
||
R |
Gold |
R=Gold |
0.4 Volt-Amps (VA) max. @20V max. (AC or DC) |
G |
G=Gold,pure-tin |
