Home > Products > WELDING MACHINE > Blue manual welding machine ZX7 ARC 200 inverter welder

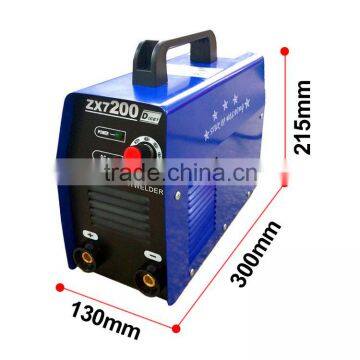

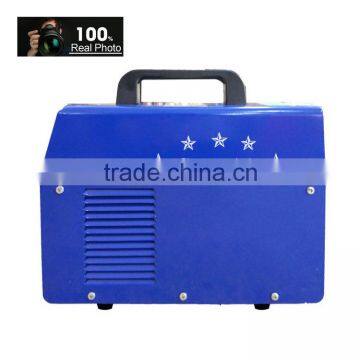

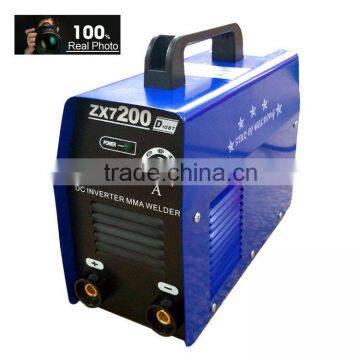

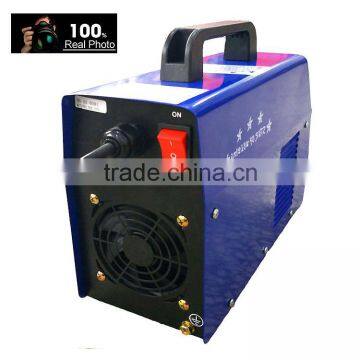

Blue manual welding machine ZX7 ARC 200 inverter welder
- 5000000 Set / Sets per Month
- XIAMEN PORT
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Fujian, China | Brand Name: | OEM |
Model Number: | ZX7 200D | Arc Current: | 10-200A | Pulse Frequency: | 50/60HZ Welding Machine |
Pilot Arc Current: | 10-200A Welding Machine | Rated Duty Cycle: | 60% Welding Machine | Motor Type: | Other, no need |
Dimensions: | 308*290*140MM | Usage: | MMA Welding | Voltage: | Single Phase AC 220V |
Power(W): | 9.4KVA | Certification: | ccc | Warranty: | 1 Year |
After-sales Service Provided: | Overseas service center available |
Product Description
Mother Material | Welding Method | Thickness(mm) | electrode (mm) | Welding current(A) |
Carbon steel Low alloy steel Stainless steel | MMA Welding | 2.0-5.0 | 2.5/3.2 | 40-160 |
MODEL | ZX7-200D |
Rated input voltage (V) | AC220V±15% 50/60Hz |
Rated input power(KW) | 7.1 |
Rated input current (A) | 28 |
Welding current adjusting range(A) | 10-200 |
No-load voltage (V) | 65 |
Rated duty cycle | 60% |
Efficiency (%) | 85 |
Power factor | 0.73 |
Protection class | IP21 |
Insulation class | F |
Size (mm) | 308X140X290 |
Weight (Kg) | 4.0 |
Control method | IGBT |
1. We are a national high&new technology enterprise, is the largest chinese portable welding machine manufacturers.
2. Our products obtain a series of patents and the CE certification.
3. This model of welding machinethrough a series of reliability test: such as High and low temperature test, high load test, thermal imaging records, vibration test, the dust test, get wet in the rain test, drop test, salt spray test, AC/DC withstand voltage test, a short circuit test per second, a variety of different network under the pressure of the load test.
4. This welder has a variety of automatic protection function.
- overheating protection: temperature more than ratings, the machine automatically shut down, protect the welding machine
- over-current protection: by measuring electric current, ensure by IGBT single pipe of current will not exceed the rating and damage.
5. Apply to acid and alkaline welding rod, non-stick electrode, Φ 2.5/3.0 electrode can be continuous welding all day .
