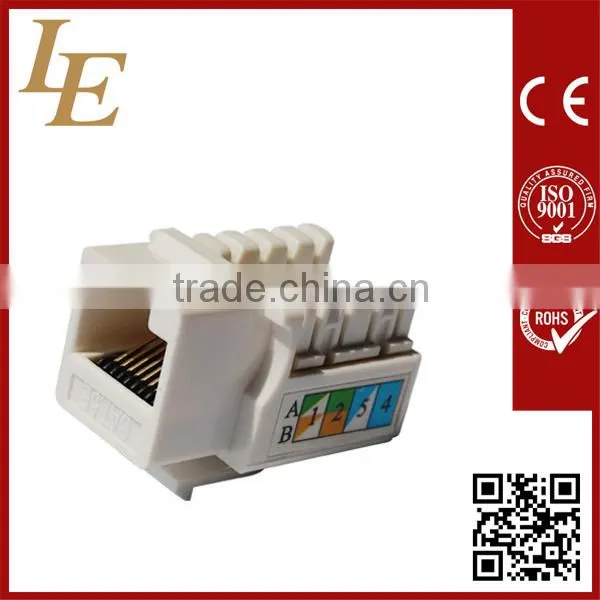

Help CenterHigh Quality Cat 5e UTP Keystone Jack 90 Degree
Related Products
Specifications
Cat 5e UTP Keystone Jack 90 degree110, Krone IDC is avaliable
6U'', 15U'', 30U''. 50U'' is avaliable
ELECTRICAL
1. Voltage rating: 125 VAC RMS
2. Current rating: 1.5 AMP
3. Contact resistance: 100 Milliohms MAX
4. Insulation resistance: 1000 Megohms MIN @ 500 VDC
5. Dielectric strength: 750 VAC RMS 60Hz, 1MIN
ENVIRONMENTAL
1. Storage: -40°TO +85°
2. Operation: 0°TO 70°
Conform to TIA/EIA 568B Category 5e
Mates with modular plug conforming to FCC part 68, Subpart F.
MECHANICAL
1. Housing material: PC UL94V-0;
2. Insert material: Flame retardatory ABS UL94V-0;
3. PCB material: FR-4 Thickness:1.6mm;
4. Contact material: Phosphor bronze stamp PIN T=0.35mm;
5. IDC Contact material: Phosphor bronze T=0.50mm with nickel plating;
6. Wire: AWG 24-26
ORDERING INFORMATION
Product Code |
Description |
Packaging |
Carton Size |
GW |
LECAT5EJACK+UTP90 |
UTP Cat.5e Keystone Jack, 90 degree |
500 PCS |
40*29*53 cm |
7.2 |
