Help CenterType ZH Differential Pressure Switch for Printed Circuits
Related Products
-
Type ZP Snap Action Contact AirswitchUS$ 2.5 - 4.5MOQ: 1000 Parcels -
Type MN3 Snap Action Contact Pressure Switch, Field Adjustable, 3 ContactsUS$ 4 - 6MOQ: 1000 Parcels
-
Type MA1 Snap Action Contact Pressure Switch, Field Adjustable, IP65 HousingUS$ 2.5 - 5MOQ: 1000 Parcels
-
Type ZE Positive Pressure Switches, for Printed Circuit, Creep Action Contact.US$ 2 - 3MOQ: 1000 Pieces
-
Type ZW Snap Action Double Pole Contact Miniature Pressure SwitchUS$ 3 - 5.5MOQ: 1000 Parcels
Specifications
Low pressure, slow action contact differential pressure switchesfor it printed circu boards with 6.35mm pitch
SPNO contact :
Main features: Electronic printed circuits. Detection of low positive, negative or differential pressure. Measurement of liquid levels, air flow, filters efficiency. Very small differential, about 2 millibars
Uses: Low voltage, high sensivity
Membranes: EPDM, dia 22 mm. Silicone or NBR on request
Fluid: water or air (no liquid input on the negative pressure inlet)

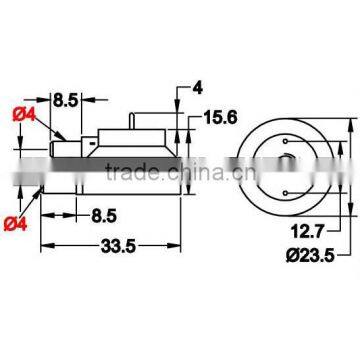

Fitting: two plastic spouts dia 4 mm for soft PVC tube 3x6 mm (1/8”)
Pressure: Differential
Housing: PA66, UL94 VO
Contact: single pole normally open, slow action.
Electrical rating:
- Silver contact: max 1A 250V
- Gold plated contact: max 100 mA, 24V
Action: momentary, close by pressure rise on positive pressure inlet
Set point calibration: factory calibrated and sealed, not field adjustable
Set point calibration limits: from 10 to 400 mbar
Differential: less than 5 mbar
Electrical connection: printed circuit terminal, dia 1.2 mm, 12.7mm spacing
Maximum pressure: 500 mbar (7 PSI)
Ambient temperature limits: 0 to 85°C
Reference:
Calibration (mbar) |
Silver contact |
Gold plated contact |
20 |
ZH2X25T102000000 |
ZH2X25TG02000000 |
50 |
ZH2X25T105000000 |
ZH2X25TG05000000 |
75 |
ZH2X25T107500000 |
ZH2X25TG07500000 |
100 |
ZH2X25T10A000000 |
ZH2X25TG0A000000 |
150 |
ZH2X25T10A500000 |
ZH2X25TG0A500000 |
