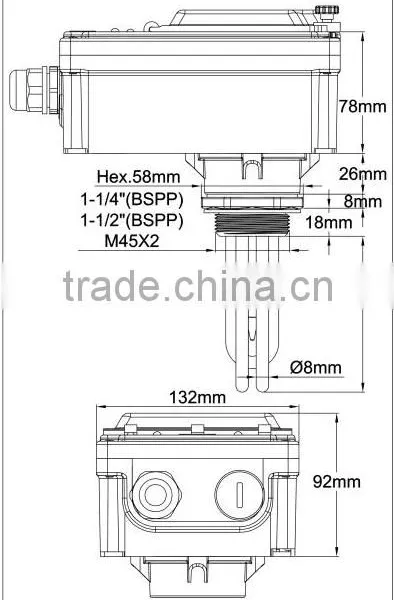

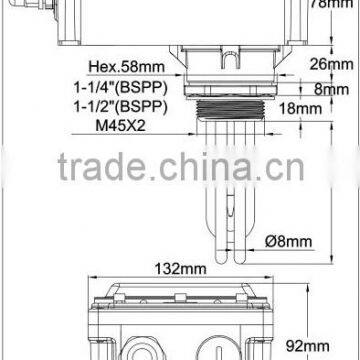

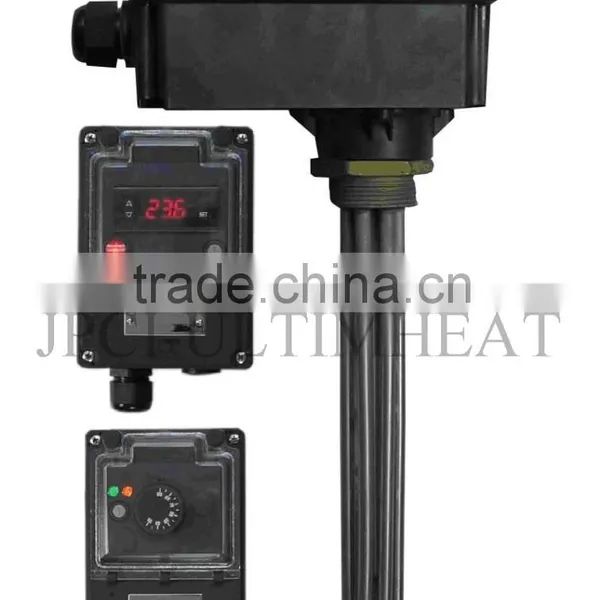

Immersion heaters with 182mm x 130mm x 120mm plastic enclosure.
Fittings 1"1/2, M45x2. With mechanical thermostat or electronic temperature control.
With or without manual reset thermostat.
Type 9STB
Main applications:Liquid heating, hot water circuits, containers and buffer tanks.
This series is intended for high-end low-power devices, single phase. It combines a modern aesthetic, a waterproof plastic housing, shock resistant, and settings viewing through a transparent window in polycarbonate. It is available with thermostat control or with an easy-to-use electronic controller, both of them with or without safety limiter.
They exist in:
-4 standard power levels: 1kW; 1,5 kW; 2kW; 3kW.
-2 types of standard fittings: 1"1/2 and M45x2
-2 types of surface load density: 5W/cm² and 10W/cm². See technical introduction to optimize the surface load.
Heater tube material: 8mm dia. AISI 304 or Incolloy 800 (AISI 316; AISI 321; Incolloy 825 on request).
Fitting material: brass, swiveling on housing, brazed on tubes. (AISI 304 or AISI 316, TIG welded, or brazed, models are available on request). Supplied without gasket and without nut. See accessories below.
Thread: 1 "1/4 or 1 1/2" BSPP (ISO 228). Metric thread M45x2 available on request.
Temperature control, 2 types available:

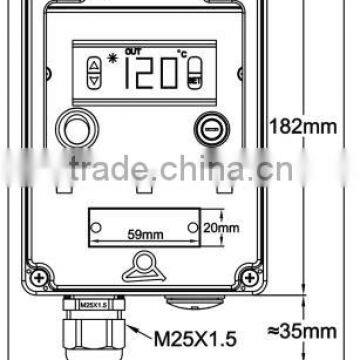

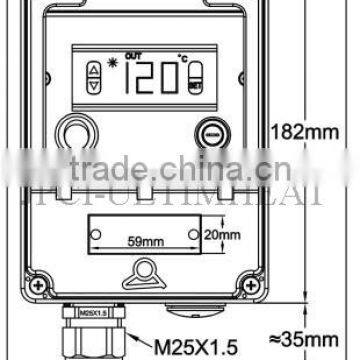

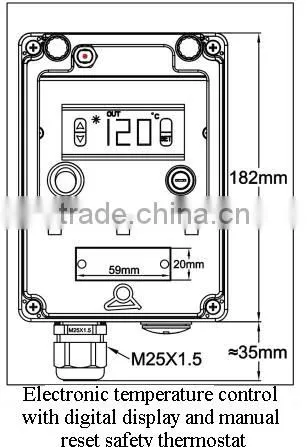

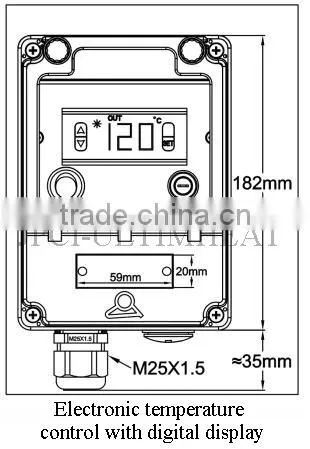

1/Electronic temperature controller with permanent digital display of temperature measured value.
- Temperature display Accuracy: ±1°C (±2°F) ± one digit.
- Temperature range 0 to 120°C (-32+250°F).
- Temperature sensor: NTC
- Display is configurable in degree or tenth of a degree.
- On-off temperature control action (relay output).
-Adjustable differential
-If the temperature sensor is broken, the output power is cut off and the error is displayed.

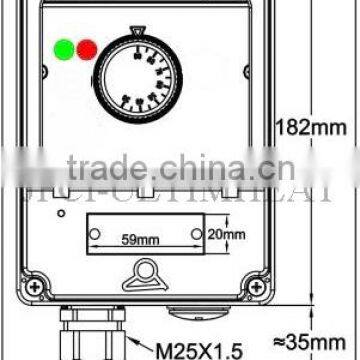

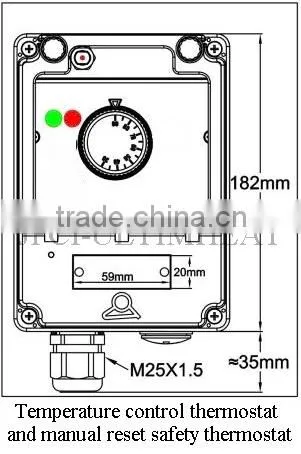

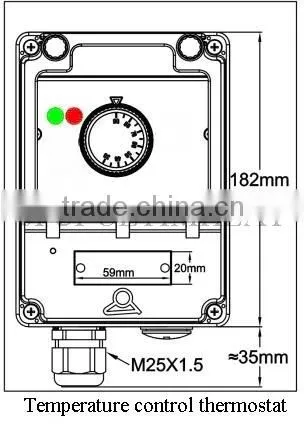

2/ Mechanical thermostat, temperature range 30-90°C (85-195°F)
Enclosure: extremely robust, in thick PA66, designed for outdoor installation, IP65 and IK10. It also includes:
- A fuse to protect internal circuits (only in electronic version).
- An on- off switch (Built on thermostat shaft on thermostat version)
- A polycarbonate transparent window allowing access to the settings. This window can be secured with seals. This case also includes a separate lid ,with independent seals, providing access to electrical connections
In models with failsafe manual reset limiter, reset can be accessed after opening the window.
Cable glands:Located on a removable mounting board, providing easier access for connections, fitted with one M25, PA66, and one more hole for M25, closed by a plastic cap.
Thermowell: in standard two thermowells in AISI304, dia.8 x 7 mm, 135mm length.

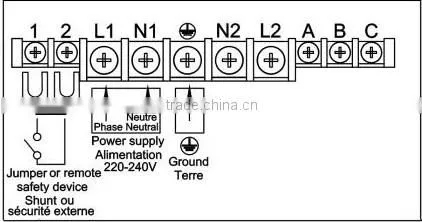

Electric connections:
Made on a built-in terminal block, with 5 terminals 6mm² and 5 terminals 2.5mm².
This terminal block is provided with a strap between terminals 1 and 2. By removing this strap, it is possible to connect an additional safety device, a remote control, or a timer.
Support grid: 1 grid AISI 304 for lengths from 400 to 600mm, 2 grids above.
Not heating immersed zone: 50mm.
Surface load: standard 5 W/cm² or 10 W/cm², others values on request.
Voltage:220-240V single phase only.
Standard options:
Manual reset limiter, preset at : 60°C, 80°C, 100°C, 110°C, 130°C. (140°F, 176°F, 212°F, 230°F, 266°F)
Variants on request:
-30-110°C adjustable thermostat (85-230°F)
-Thermal cut out inside a thermowell.
Wiring |
|
Main references with 30-90°C (85-195°F) adjustable thermostat*
5W/cm²;1"1/2**brass fitting, without manual reset thermostat.
Power |
1kW |
1.5kW |
2kW |
3kW |
Length (mm) |
170 |
240 |
300 |
440 |
AISI 304 Reference |
9STBA5HV010V8170 |
9STBA5HV015V8240 |
9STBA5HV020V8300 |
9STBA5HV030V8440 |
Incolloy 800 reference |
9STBA5HV010VK170 |
9STBA5HV015VK240 |
9STBA5HV020VK300 |
9STBA5HV030VK440 |
10W/cm², 1"1/2** brass fitting, without manual reset thermostat.
Power |
1kW*** |
1.5kW |
2kW |
3kW |
Length (mm) |
135 |
135 |
170 |
240 |
AISI 304 Reference |
9STBA5HV010B8130 |
9STBA5HV015V8130 |
9STBA5HV020V8170 |
9STBA5HV030V8240 |
Incolloy 800 reference |
9STBA5HV010BK130 |
9STBA5HV015VK130 |
9STBA5HV020VK170 |
9STBA5HV030VK240 |
5W/cm², 1"1/2** brass fitting, with manual reset thermostat set at 100°C (212°F)****
Power |
1kW |
1.5kW |
2kW |
3kW |
Length (mm) |
170 |
240 |
300 |
440 |
AISI 304 Reference |
9STBA5HV010V817N |
9STBA5HV015V824N |
9STBA5HV020V830N |
9STBA5HV030V844N |
Incolloy 800 reference |
9STBA5HV010VK17N |
9STBA5HV015VK24N |
9STBA5HV015VK30N |
9STBA5HV030VK44N |
10W/cm², 1"1/2** brass fitting, with manual reset thermostat set at 100°C (212°F)****
Power |
1kW*** |
1.5kW |
2kW |
3kW |
Length (mm) |
135 |
135 |
170 |
240 |
AISI 304 Reference |
9STBA5HV010B813N |
9STBA5HV015V813N |
9STBA5HV020V817N |
9STBA5HV030V824N |
Incolloy 800 reference |
9STBA5HV010BK13N |
9STBA5HV015VK13N |
9STBA5HV020VK17N |
9STBA5HV030VK24N |
*Type with electronic temperature control: replace HV by HY in the reference
** M45x2 brass fitting instead of 1"1/2, replace A5 by A9 in the reference.
***: only two heating elements
**** Manual reset thermostat set at 60°C, 80°C, 110°C, 130°C. (140°F, 176°F, 230°F, 266°F), replace the last character N by E, J, Q, U
References of accessories in option (not included in the product, must be ordered separately):
Nuts
|
Thread |
1"1/4 |
1"1/2 |
M45x200 |
Brass |
9BRRA3000ELH302A |
9BRRA3000ELH303A |
9BRRA3000ELH305A |
|
AISI304 |
9BRRA3000ELH032A |
9BRRA3000ELH006A |
9BRRA3000ELH049A |
|
AISI316 |
9BRRA3000ELH202A |
9BRRA3000ELH203A |
9BRRA3000ELH205A |
Gaskets
|
Thread |
1"1/4 |
1"1/2 - M45x200 |
NBR |
9BRJ03000ELH206A |
9BRJ03000ELH205A |
|
Fiber |
9BRJ03000ELH052A |
9BRJ03000ELH007A |
|
PTFE |
9BRJ03000ELH032A |
9BRJ03000ELH033A |
Other accessories and drawings: see last section of this catalogue
