Standard liquid heaters
76mm diameter, length 313mm,heli-coiled tubular heaters, 1” fittings

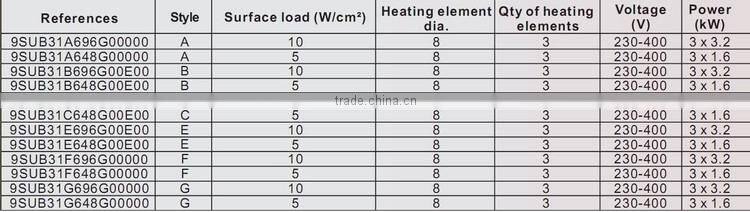

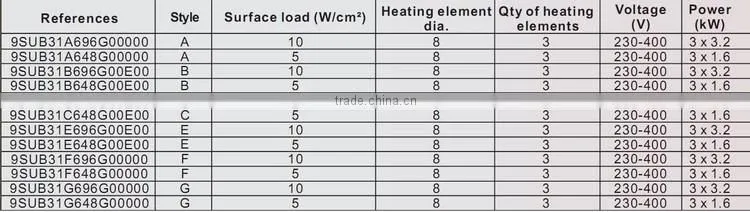

Type : 9SUB31
Mounting: Vertical or horizontal
Tubular heater Qty : 3
Maximum power : 4.8kW(3x1.6 kW, 5W/cm²), 9.6kW (3x3.2kW, 10W/cm²)
Diameter of the heater: 8mm
Tubular heater material: 316L (Incolloy 800 optional)
Body material: 304L stainless steel (316L optional)
Material fittings: 304L stainless steel (316L optional)
Inlet connection: Male 1" BSPP cylindrical
Outlet diameter: Male 1" BSPP cylindrical
Air vent thread: 3/8 BSPP (on models where it exists)

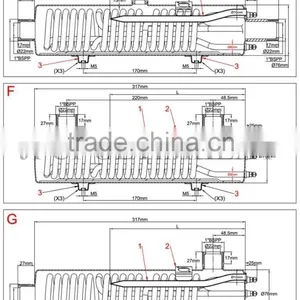

Thermowell ( 1 ): 304L stainless steel dia. 10x8.5 mm, length 260 mm for thermal cut-out (See thermal cut-out sub assembly models at the end of this catalog). Copper thermowell is available on request. This thermowell can also be used for a thermostat bulb or a temperature sensor.
Disc thermostat mounting bracket ( 2 ): 1 bracket for thermostat with extended cup (see thermostat models at the end of this catalog).
Wall mounting brackets ( 3 ): 3 x 2 M5 feet, 170mm center line distance, for wall mounting on 3 different sides. M5 brackets that are not used for wall mounting can be used for grounding.
Accessories: see end of this catalog
OK Standard products, 304L stainless steel tanks, helicoil 316L sheathed heaters
Power values are the maximum possible values for a given surface load. It is possible to reduce the power by reducing the surface load.
