Enterprise class managed Gigabit Ethernet switch HY-628F

our service

1. OEM / ODM service

2. Free sample for evaluating

3. UL,ROHS,CE, ISO,CCC, FCC certificate

4. Stirctly quality contral, best price, best service

Product Description

HY-628F is one of the new generation of "enterprise class managed Gigabit Ethernet switch series" products, it can also be used for PTN remote device. The product is capable of providing high speed Ethernet access, supporting Ethernet standard protocols. It simplifies the complexity of the PTN protocol overhead, while providing the business layer of the OAM capabilities, so that the access network design and implementation of more tend to be introduced. PTN has the ability to connect with the network, simplify the operation interface, so that the network maintenance means effective and unified, more conducive to achieve efficient network management

Product features

         Support 10 100/1000M Ethernet SFP ports

        Provides one console port,support local management and telnet management

        Supports VLAN 802.1Q, QinQ and flexible QinQ, supports up to VLAN 4K

        Supports OAM, including EFM and 802.1ag, Y.1731

        Standard CFM

        Support based on the LACP protocol for inter port protection, based on the G.8031 protocol based on linear protection and based on Ring network protection of G.8032 protocol

        Support port, 802.1P, DSCP, TOS, MAC address, ID VLAN, Type Ethernet

        Supports port based, VLAN, and port +VLAN

        Supports MAC address table dynamic automatic learning and static configuration

        Support SLA, link delay, jitter, packet loss and throughput can be achieved.

        Support RMON, you can count the number of ports and port traffic and port traffic

        Support for the SNMP protocol based on the unified network management and Server Web configuration

        Support the broken fiber alarm; support Dying Gasp remote equipment fail alarm

        Support spanning tree (STP) and fast spanning tree (RSTP) protocol and multi spanning tree (MSTP) protocol

        Support port loop detection

        Support equipment online upgrade

Technical specifications

[Port]

         Support straight line and cross line adaptive

        Supports port aggregation and 1:1 port protection

        One RS-232 serial port

[Ethernet]

        Supports IEEE802.3ah, IEEE802.1ag and OAM Y.1731 Management Protocol

        Supports 802.1Q IEEE, supports 4096 VLAN, supports VLAN conversion function

        Support QinQ

        Support for storm suppression and port speed limit, the speed limit of particles of 64K

        Support port aggregation /LACP, support 1:1 port protection

        Support MSTP/RSTP protocol

        Support 802.1D STP IEEE spanning tree protocol

        Supports 802.3x IEEE flow control

        Support for port redirection and port mirroring

        Support port based fault transfer function

        Support level 8 QOS queue, support SP, WRR queue scheduling strategy

        Support ACL entries to 256

        RMON performance statistics for support ports

        Support for ultra long frame transmission

[ Management ]

            Support for the local serial port and TELNET command line management;

        Support WEB, SNMP management;

        Support through the division of independent research and development of EMS management system for unified management;

        Rich LED status indicator;

        Supports Ethernet port state alarm information reporting, performance data statistics and threshold alarm settings,

        Support port control, test and loop back function;

        Through FTP, TFTP, support for remote device software upgrade, backup

[Power]

            Supports DC or AC power supply

        No fan, low power consumption, total power consumption is less than 15W

        DC parameters: default -48V:-36V ~ -72V

        AC parameters: default 220V:100V ~ 260V

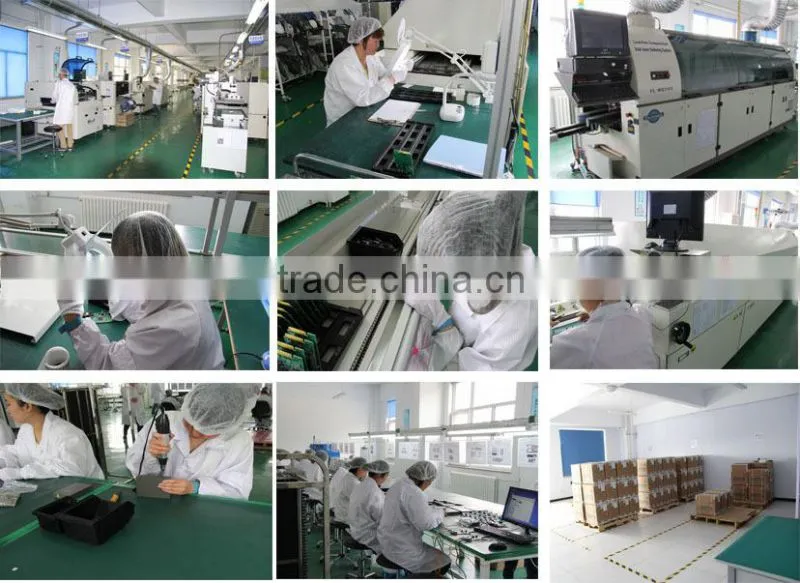

Mass production
