Electro-galvanized Razor Wire/razor Barbed Wire Mesh Fence With Surprise Price
US$ 550 - 863
MOQ: 10 Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
YUJUN
Model Number:
BTO
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN XIANGANG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Concertina - Barbed Wire, Razor WireUS$ 550 - 900MOQ: 1 Ton -
Galvanized Double Twist Barbed Wire Fencing Anping FactoryUS$ 400 - 600MOQ: 5 Tons
-
Hot Sale Competitive Price Razor Wire/concertina Cross Security Guard Straight Line Razor Wire FencingUS$ 550 - 863MOQ: 10 Tons
-
Galvanized Barbed WireUS$ 400 - 600MOQ: 5 Tons
-
Razor Tape Concertina CoilUS$ 595 - 740MOQ: 10 Tons
Place of Origin
Hebei, China
Brand Name
YUJUN
Model Number
BTO
Material
Steel Wire
Surface Treatment
Galvanized
Type
Barbed Wire Coil
Razor Type
Cross Razor

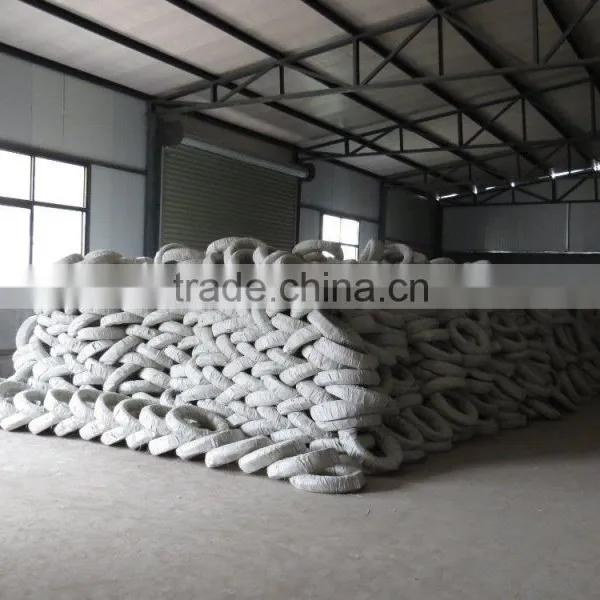

1. Factory:
Anping Yujun Metal Mesh Co., Ltd. is a manufacturer engaged in razor barbed wire and series wire mesh fencing products. With first-class technology and equipment introduced from abroad, the most advanced production line in China, we can supply products meeting international standard.
2. INTRODUCTION:

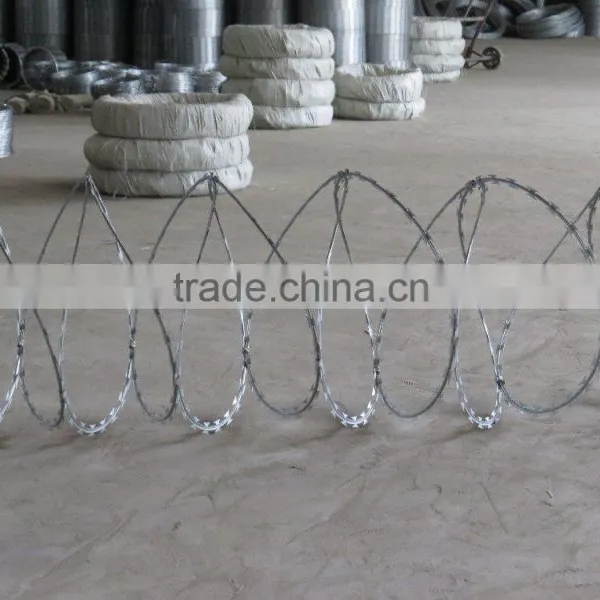

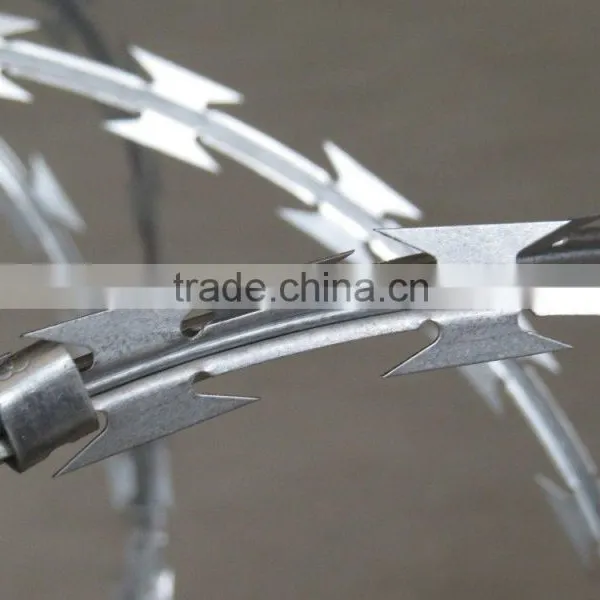

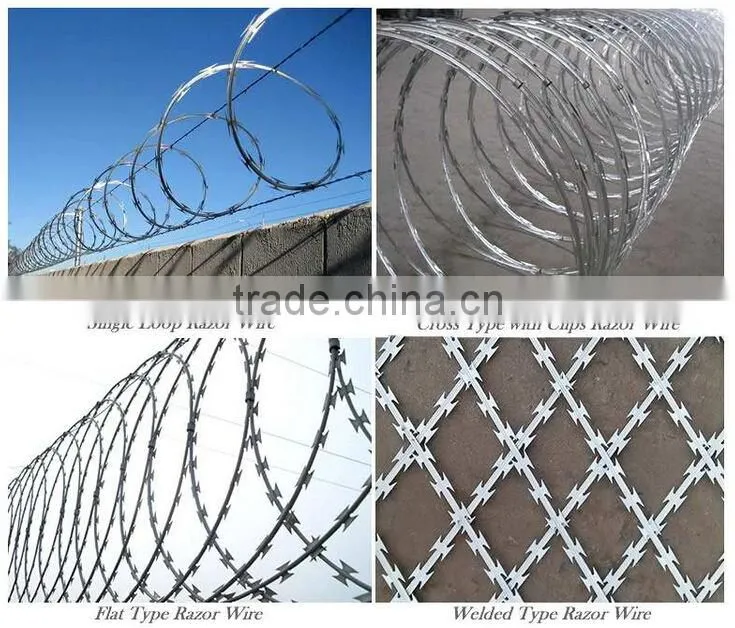

Concertina Razor Wire, also called Razor Wire. As an effective and economical security barrier, using galvanized steel blade to wrap around a galvanized core wire. With its high security function, Concertina Razor Wire can prevent most most of the intrusions for it is hard and dangrous to broke. With the Concertina Razor Wire on the top of the other fences, it can greatly improve the safety factor. One of the important features is the low cost. It is the African market, it is also a hot- sale production most countries and areas.

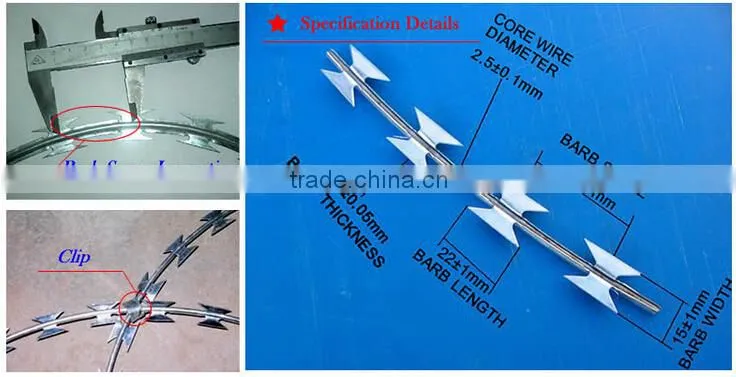

3. Specifications:

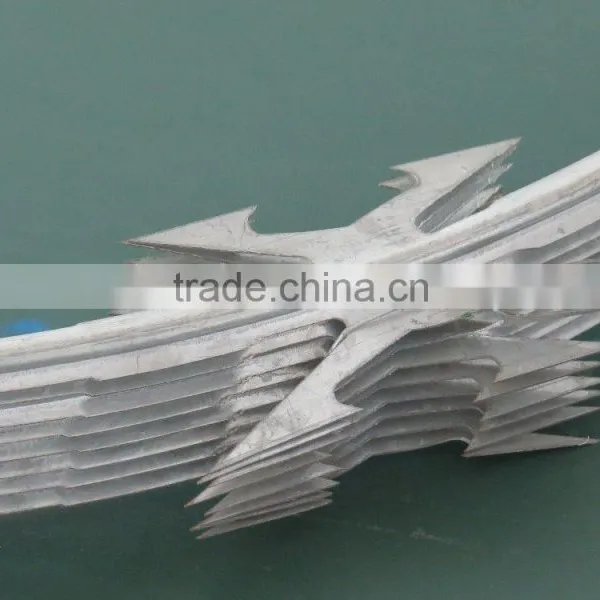

| Razor blade type and specification | |||||
|
Reference Number |
Thickness (mm) |
Wire Dia (mm) |
Barb Length (mm) |
Barb Width (mm) |
Barb spacing (mm) |

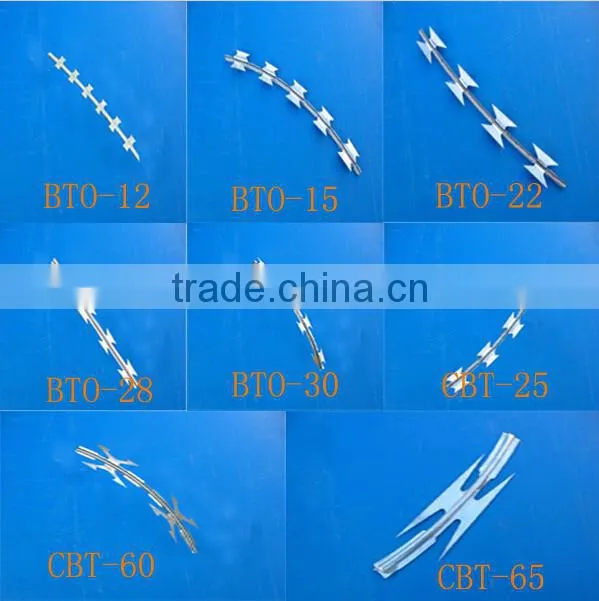

| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-25 | 0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±1 | 32±1 | 100±1 |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±1 | 21±1 | 100±1 |
| Barbed Tape Wire Specification | ||||
| Outside Diameter | No.of Loops | Standard Length per Coil | Type | Notes |
| 300mm | 33 | 4-5m | CBT-60.65 | Singlw coil |
| 450mm | 33 | 7-8m | CBT-60.65 | Single coil |
| 500mm | 56 |
12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 9600mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 4500mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 9000mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |

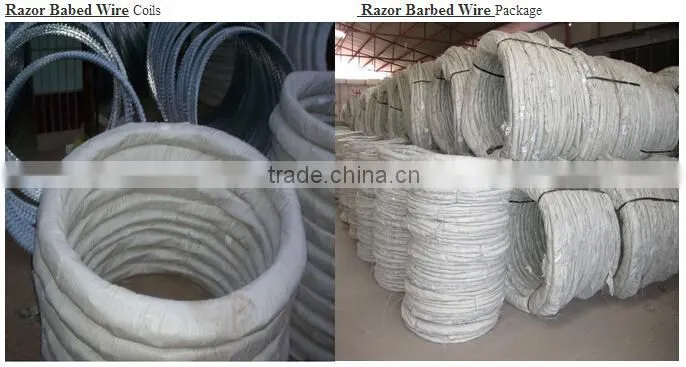

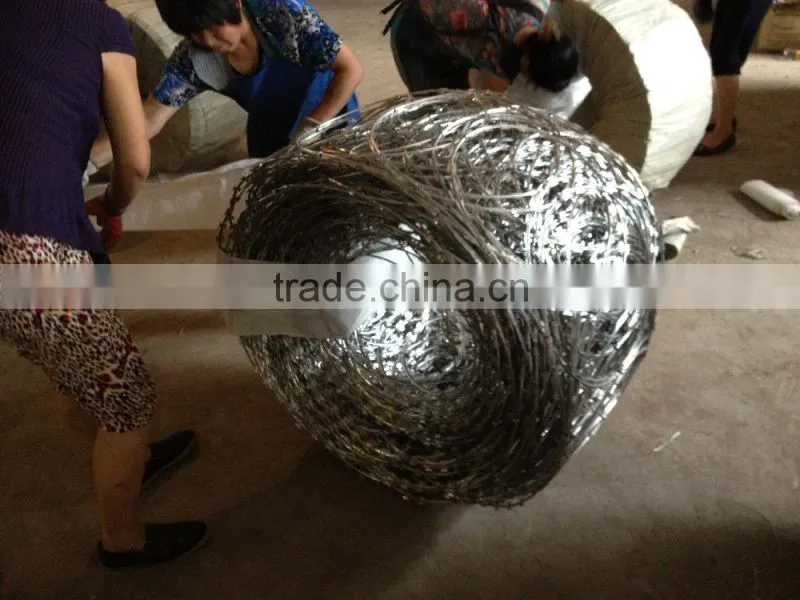

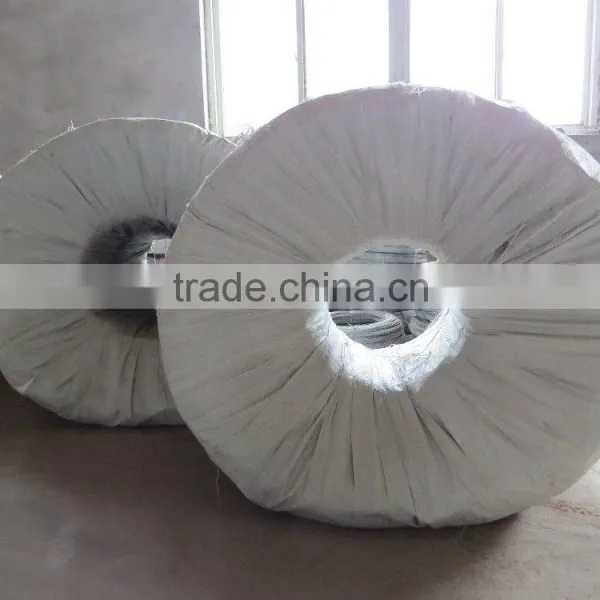

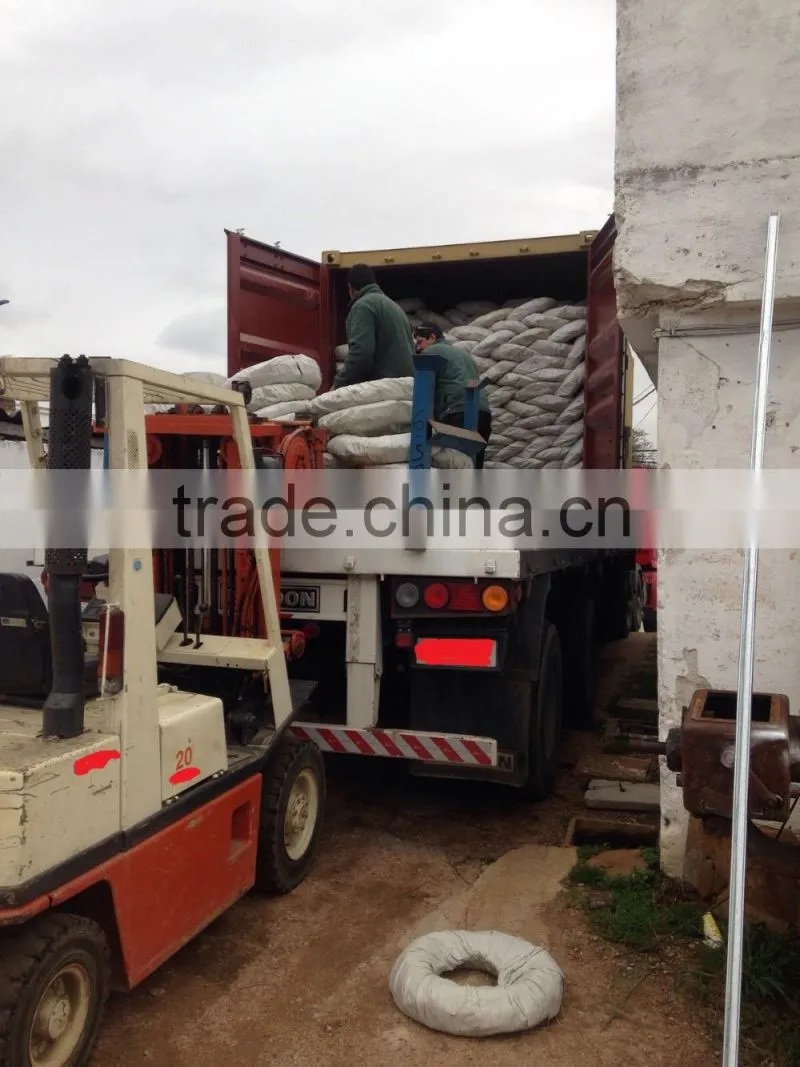

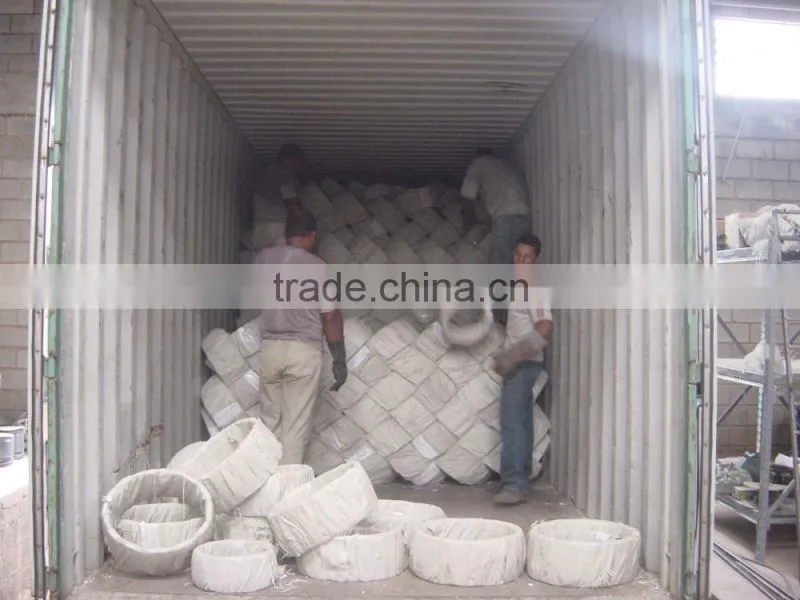

4. Packing:
Compressing packing,
iner waterproof paper, then be warp use weaving bag, 300-500 kg per bundle
4.The application

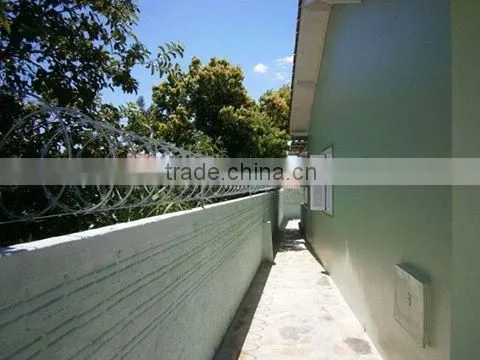

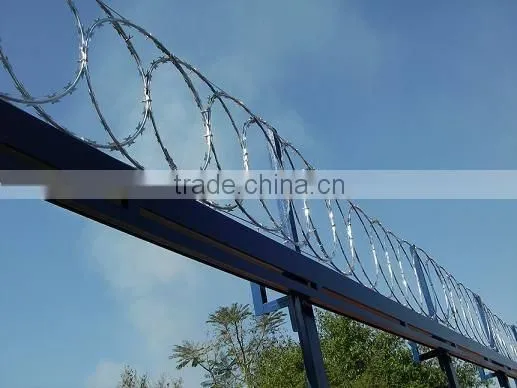

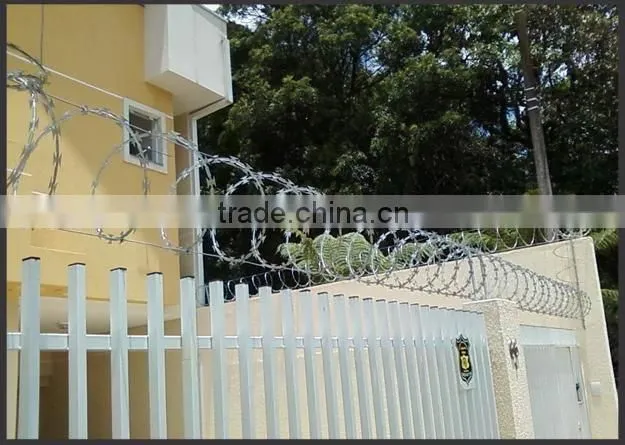

Currently, barbed tape has been widely used by many countries in military field, prisons, detention houses,government buildings and other national security facilities.In recent years,
barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
5.
What can I get in YUJUN wire mesh?
- Best price and service
- Fast delivery
- Most perfessional & suitable suggest
- 24 hours online service
- Professional quality inspection
- High-quality after-sales service
- Provide customized design services
Contact us for enjoy customized services.
