Mine Sieving Mesh

Alex Manufacturer Sdn. Bhd.
Mine Sieving Mesh thumbnail-1
Mine Sieving Mesh thumbnail-2
Mine Sieving Mesh thumbnail-3
Mine Sieving Mesh thumbnail-4
Mine Sieving Mesh thumbnail-5
Mine Sieving Mesh thumbnail-6
Mine Sieving Mesh photo-1
Mine Sieving Mesh photo-2
Mine Sieving Mesh photo-3
Mine Sieving Mesh photo-4
Mine Sieving Mesh photo-5
Mine Sieving Mesh photo-6
US$ 20 - 60 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Selangor, Malaysia
Material:
Other, Stainless steel wire, galvanized steel wire
Type:
Crimped Wire Mesh
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Kelang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Selangor, Malaysia
Material Other, Stainless steel wire, galvanized steel wire
Type Crimped Wire Mesh
Application Screen
Weave Style Plain Weave
Wire Diameter 2.91~12.08
Technique Woven
Model Number Crimped Wire Mesh
Brand Name tengfei

Vibrating Screen Cloth

Vibrating Screen Cloth is one kind of woven wire mesh.

According to the weaving type can also be called single intermediate crimp screen, double crimp screen, double intermediate crimp screen , lock crimp screen and flat top screen.

Woven Wire Mesh Weaving type:


Vibrating Screen Cloth Material:Stainless steel wire,iron wire,steel wire
Vibrating Screen Cloth Application:mainly used in coal and mine, building.

Vibrating Screen Cloth Weaving and characteristics:
Crimped before woven, with all types.
Crimped wire mesh offers stable structure and good strength.
Vibrating Screen Cloth Application: Crimped iron wire mesh is mainly used in coal and mine, building, etc

Vibrating Screen Cloth Material : Manganese steel,carbon steel,stainless steel and galvanized mild steel The manganese steel is very abrasive and corrosive. And the stainless steel material is very corrosive.

According to the different application, also choose different materials.

Weaving type:double crimped,double intermediate crimped,single intermediate crimped,lock crimped,flat top crimped.

Woven from pre-crimped wires,the edge can be required by clients. Crimped wire offers stable structure and good strength. Application of vibrator screen mesh: Cement industry; Stone crushers; Coal feeders; Machinery belt guards





Wire Gauge (BWG)
Aperture Size ( mm)
Wire Dia. ( mm)
Weight(Kg/ m2)
8
30
4.06
6.00
8
25
4.06
7.00
8
20
4.06
8.00
8
15
4.06
1.00
8
12
4.06
13.00 0
8
10
4.06
15.00 0
10
30
3.25
4.00
10
25
3.25
4.70
10
20
3.25
5.80
10
15
3.25
7.40
10
10
3.25
10.00 0
12
30
2.64
2.70
12
12
2.64
3.20
12
20
2.64
3.90
12
15
2.64
5.00
12
10
2.64
7.00
14
20
2.03
2.38
14
15
2.03
3.10
14
12
2.03
3.70
14
10
2.03
4.35
14
8
2.03
5.22
14
6
2.03
6.52
14
4
2.03
8.68
14
3
2.03
10.40 0
16
15
1.63
2.03
16
10
1.63
2.90
16
8
1.63
3.50
16
6
1.63
4.40
16
4
1.63
5.99
18
12
1.22
1.43
18
10
1.22
1.68
18
8
1.22
2.05
18
6
1.22
2.62
18
4
1.22
3.62
18
3
1.22
4.48
20
12
0.91
0.82
20
10
0.91
0.96
20
8
0.91
1.18
20
5
0.91
1.78
20
4
0.91
2.15
20
3
0.91
2.69







Mine Sieving MeshMine Sieving MeshMine Sieving MeshMine Sieving MeshMine Sieving MeshMine Sieving Mesh





Follow these easy steps below to specify when ordering your vibrating screen cloth.

1. Vibrating Screen Cloth  Quantity.

2. Vibrating Screen Cloth Woven Wire Cloth size contains width and length.

3. Vibrating Screen Cloth  Hooks style and thickness if with hooks,





Mine Sieving Mesh

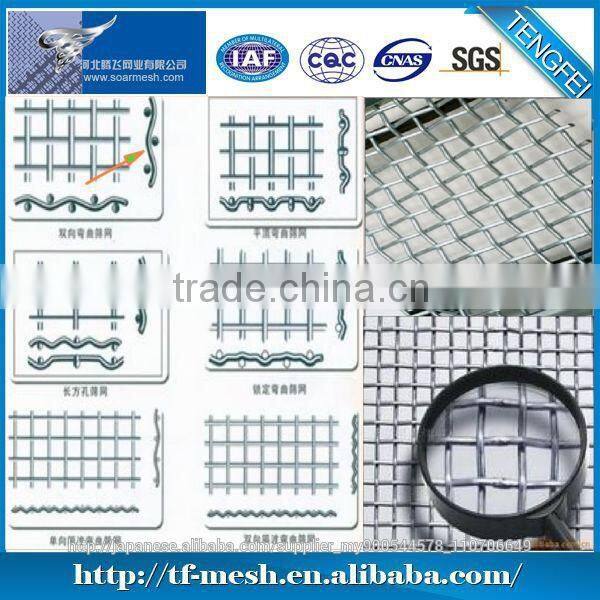

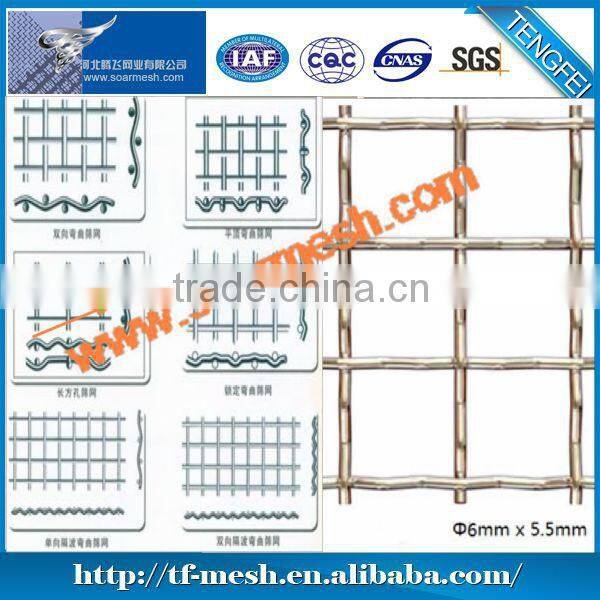

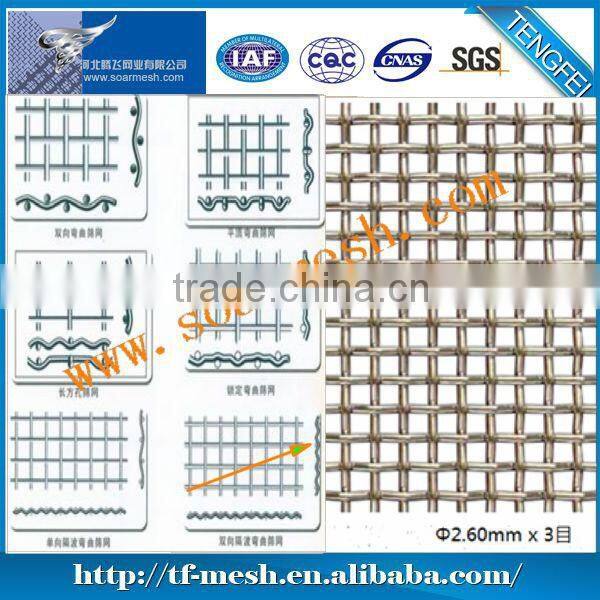

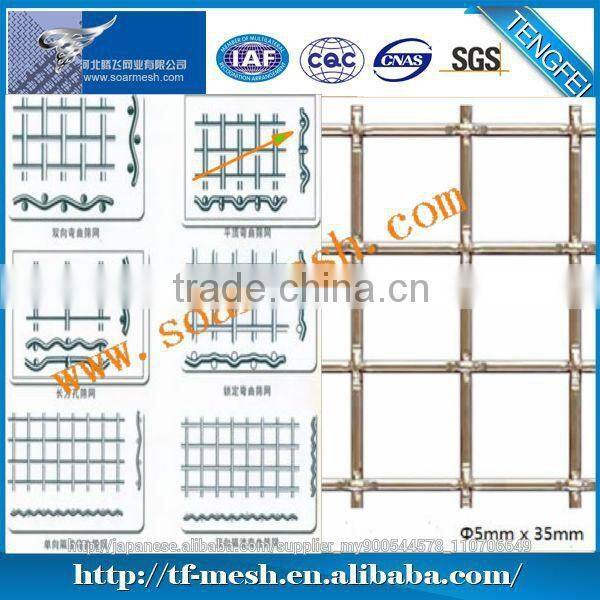

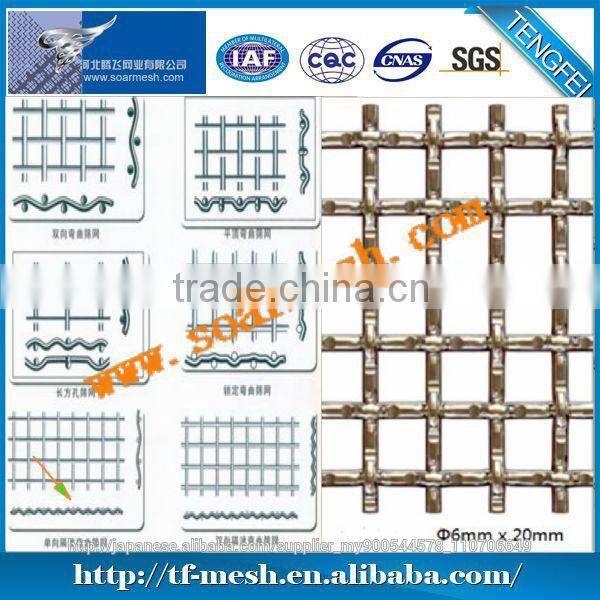

4. Vibrating Screen Cloth Aperture : whether square or rectangular. Crimped type (double crimp,single intermediate crimp,double intermediate crimp , lock crimp and flat top which has easy explanation on pictures in woven wire mesh ). The size of the opening.

5. Vibrating Screen Cloth Wire diameter.

6. Vibrating Screen Cloth Material.

We can promise you with high quality goods, short delivery time and competitive price







USAGE:

The strength and free screening area advantages of woven wire screens over alternative media make them ideal for a wide range of applications.Woven wire screens apply to many industries including: quarrying, mining, water, water, waste,agriculture,food and pharmaceutical amongst many others.

Please contact us freely to get much more information about our woven wire screens.
